Heathkit HA-14 User Manual

1
HEATH EIT"
5/16 x7/8 SPACER
SOLDER LUG
Detail 3c
:
6-32x1/4 scReW
( ) Mount the 5/16" x 7/8" spacer at AA with
a 6-32 x 1/4" screw and a #6 solder lug,
as shown in Detail 3C, Position the solder
lug as shown in Pictorial 3,
( ) Referring to Detail 3D, mount a tube clamp
over sockets V1 and V2, Use 8-32 x
1/4" screws, #8 lockwashers, and 8-32
nuts, Position the tube clamps as shown by
the dotted lines on Pictorial 3,
B.32x1/4 SCREW 7
TUBE CLAMP
#8 LOCKWASHER GIS)
Detail 3D saz nut @

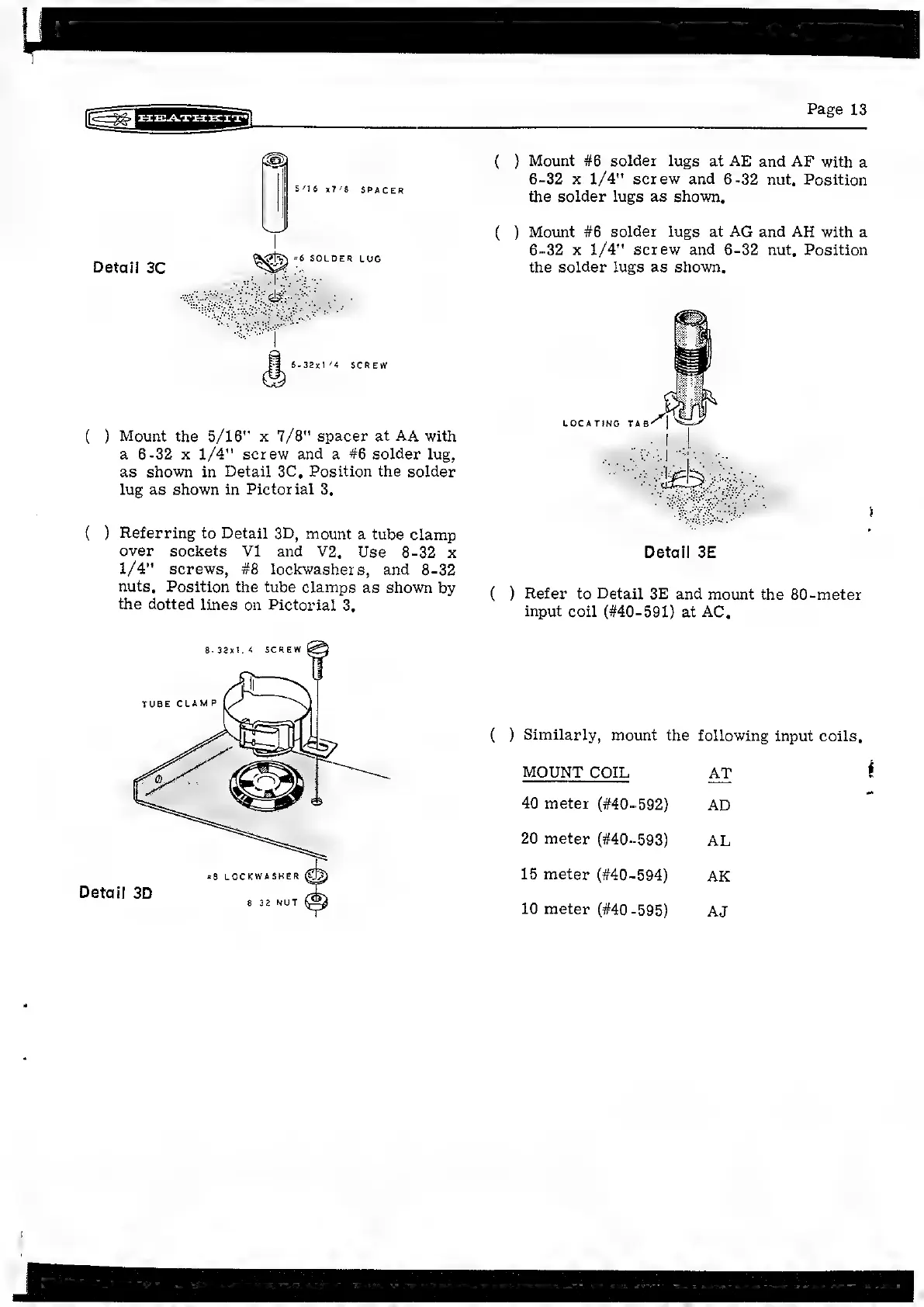

Page 13
( ) Mount #6 solder lugs at AE and AF with a
6-32 x 1/4" screw and 6.32 nut, Position
the solder lugs as shown,
( ) Mount #6 solder lugs at AG and AH with a
6.32 x 1/4" screw and 6-32 nut, Position
the solder lugs as shown,
LOCATING TAS
Detail 3E
( ) Refer to Detail 3E and mount the 80-meter
input coil (#40-591) at AC,
( ) Similarly, mount the following input coils,
MOUNT COIL AT
40 meter (#40.592) AD
20 meter (#40..593) AL
15 meter (#40-594) AK
10
meter
(#40.-595)
Ad
_

Heathkit HA-14 Specifications

General

Brand	Heathkit
Model	HA-14
Category	Amplifier
Language	English
