Heathkit HW-101 User Manual

CAUTION: Do not tur on full output power continuously
for more than 30 seconds at one time, or the final amol ffier
tubes or power supply may be damaged. Each time full
erry eT teen, aay tho tiubas to cool for at
Oi 7
wo ntt F 2
output Pov is tUrnea O77, AuIW We TUES te CO IGF ae
feast 2 minute.

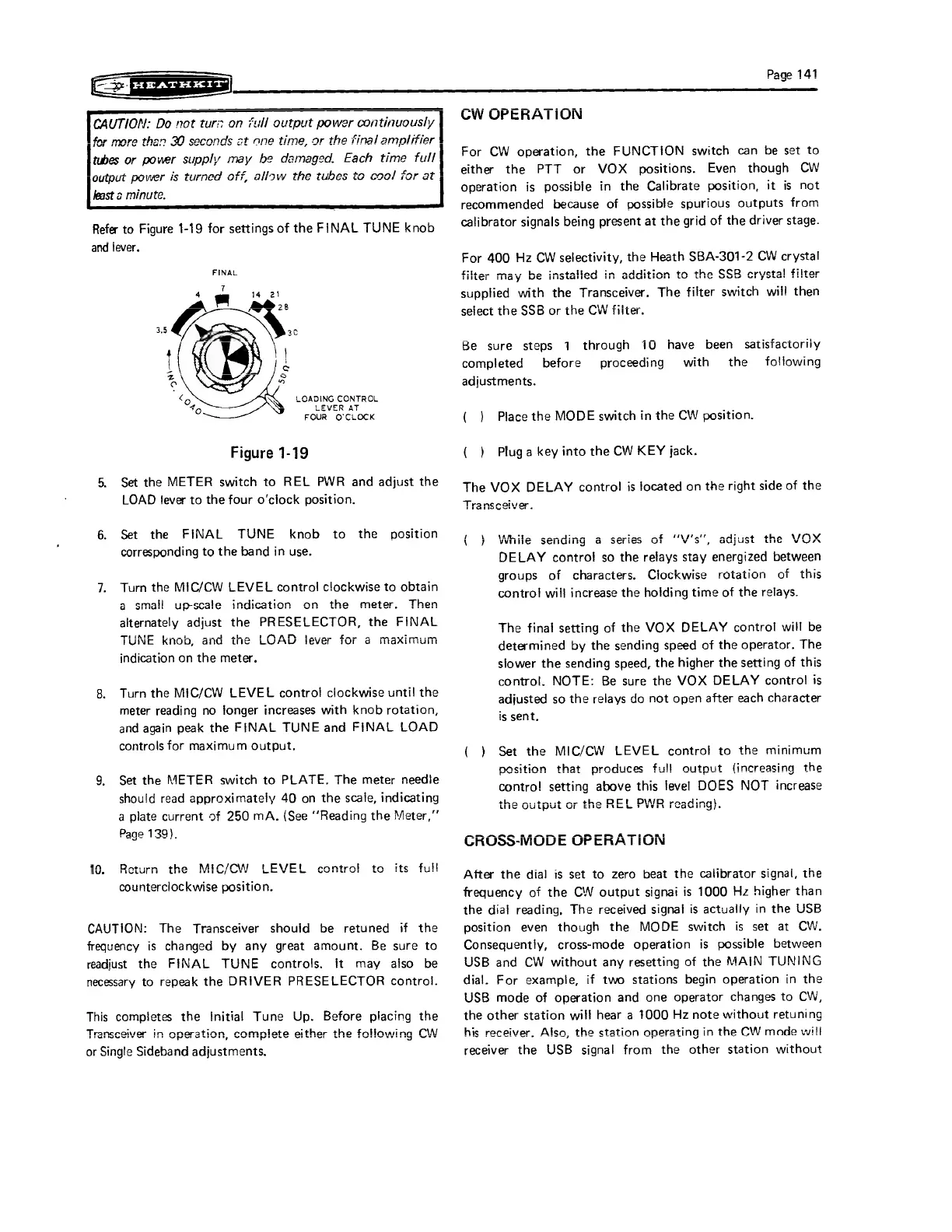

Refer to Figure 1-19 for settings of the FINAL TUNE knob
and lever.
FINAL
=
a —< 2)
Wee io S.
ma
‘
VS}
|:
hg ye NS LEVER AT
FOUR O'CLOCK
Figure 1-19
5. Set the METER switch to REL PWR and adjust the
LOAD fever to the four o'clock position.
6. Set the FINAL TUNE knob to the position
corresponding to the band in use.
7. Turn the MIC/CW LEVEL control clockwise to obtain
unp-scala the meter. Then
up-scale
alternately adjust
TIA a se
TUINE KMOD, and
indication on the meter.
a small
a OTT RCAEE indication on
the PRESELECTOR, the FINAL
the LOAD lever for naximum
o
8. Turn the MIC/CW LEVEL control clockwise until the
meter reading no fonger increases with knob rotation,
and again peak the FINAL TUNE and FINAL LOAD
controls for maximum output,
9, Set the METER switch to PLATE. The meter needle
should read approximately 40 on the scale, indicating
a plate current of 250 mA. (See ‘Reading the Meter,”
Page 139).
a rao)
Return the MIC
meturnm te Wels Uyy CeVveow
counterclockwise position.
CAUTION: The Transceiver should be retuned if the
frequency is changed by any great amount. Be sure to
readjust the FINAL TUNE controls. It may also be
necessary to repeak the DRIVER PRESELECTOR control.
This completes the Initial Tune Up. Before placing the
Transceiver in operation, complete either the following CW
or Single Sideband adjustments.
For CW operation, the FUNCTION switch can be set to
either the PTT or VOX positions. Even though CW
operation is possible in the Calibrate position, it is not
recommended because of possible spurious outputs from
calibrator signals being present at the grid of the driver stage.
For 400 Hz CW selectivity, the Heath SBA-301-2 CW crystal
file ne inctallacd addit
Tnter May be installed in addition te the SSB crystal filter
tion to ooo Yota
supplied with the Transceiver. The filter switch will then
select the SSB or the CW filter.
Be sure steps 1 through 10 have been satisfactorily
completed before proceeding with the following
adjustments.
(
}
Place
the
MODE
switch
in
the
CW
position.
( ) Pluga key into the CW KEY jack.
The VOX DELAY contro! is located on the right side of the
Transceiver
transceiver.
{ ) While sendin ig a series of “V's ae adjust the VOX
DELAY control so the relays stay energized between
groups of characters. Ciockwise rotation of this
control will increase the holding time of the relays.
The final setting of the VOX DELAY control will be
determined by the sending speed of the operator. The
slower the sending speed, the higher the setting of this
control. NOTE: Be sure the VOX DELAY control is
adjusted so the relays do not open after each character
is sent,
Set the MIC/CW LEVEL control to the minimum
output (increasing the produces full
ape ms level DOES NOT increase
dosition that
PYeSTUOL
contro! setting
+
l
After the dial is set to zero beat the calibrator signal, the
frequency of the CW output signai is 1000 Hz higher than
the dial reading, The received signal is actually in the USB
position even though the MODE switch is set at CW.
Consequently, cross-mode operation is possible between
USB and CW without any resetting of the MAIN TUNING
dial. For example, if two stations begin operation in the
USB mode of operation and one operator changes to CW,
the other station will hear a 1000 Hz note without retuning
his receiver, Also, the station operating in the CW made will
receiver the USB signal from the other station without
