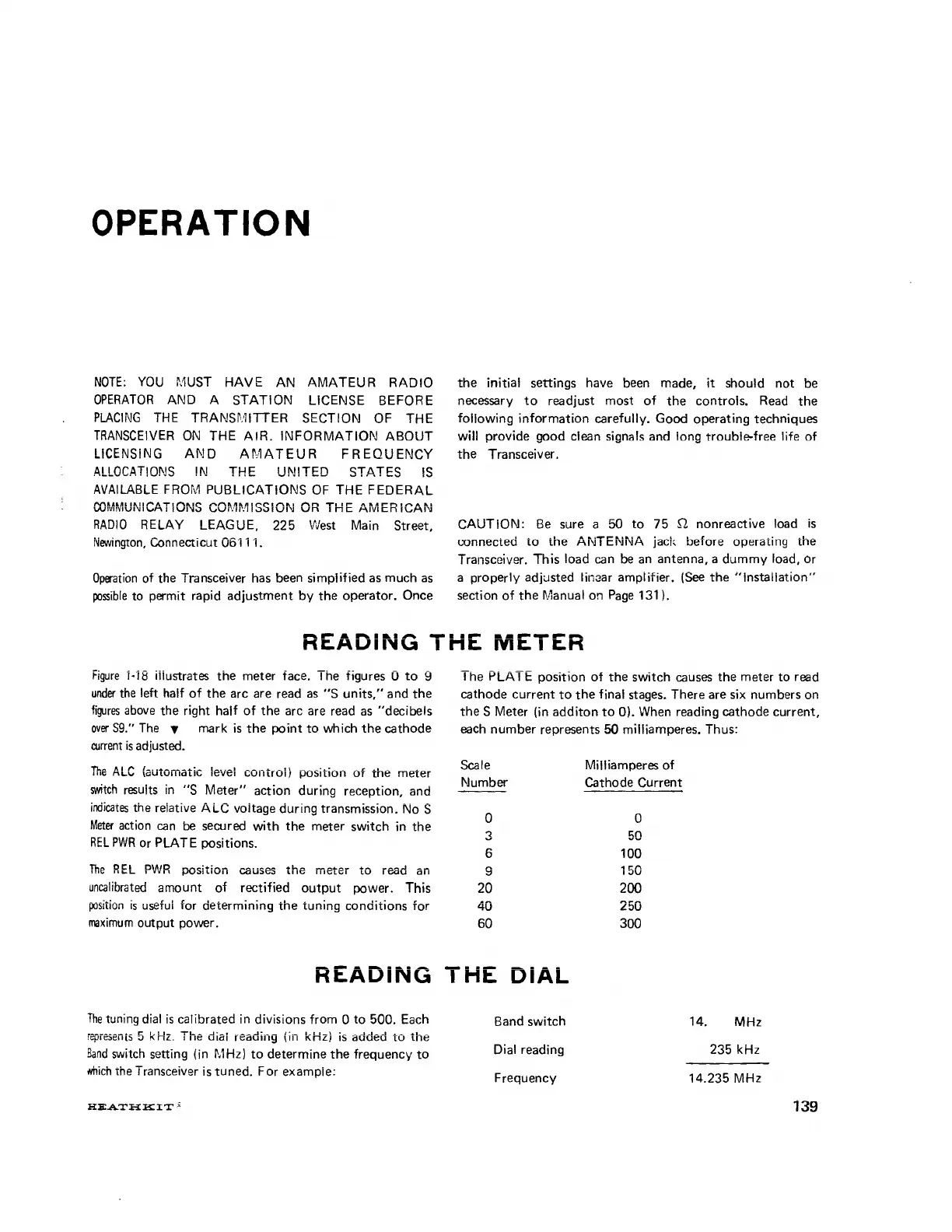

OPERATION
NOTE: YOU MUST HAVE AN AMATEUR RADIO
OPERATOR AND A STATION LICENSE BEFORE
PLACING THE TRANSMITTER SECTION OF THE
TRANSCEIVER ON THE AIR. INFORMATION ABOUT
LICENSING AND AMATEUR FREQUENCY
ALLOCATIONS IN THE UNITED STATES 1S
AVAILABLE FROM PUBLICATIONS OF THE FEDERAL
e YA CCIAR
COMMUNICATIONS CcOh AMISSION O OR THE AMERICAN
RADIO RELAY LEAGUE, 225 West Main
Newington, Connecticut 06111.
Street,
Operation of the Transceiver has been simplified as much as
possible to permit rapid adjustment by the operator. Once
Figure 1-18 illustrates the meter face. The figures 0 to 9
under the left half of the arc are read as ‘’S units,” and the
figures above the right half of the arc are read as “decibels
over S9.°° The wo mark is the point to which the cathode
current is adjusted.
The ALC {automatic fevel control) position of the meter
switch results in ““S Meter’ action during reception, and
indicates the relative ALC voitage during transmission. No S$
Meter action can be secured with the meter switch in the
REL PWR or PLATE positions.
The REL PWR position Causes
uncalibrated amount of rectified output power.
position is useful for determining the tuning conditions for
maximum output power.
The tuning dial is calibrated in divisions from 0 to 500. Each
The dial reading cin kHz} iS added to the
represenis 5 KHz.
Band switch setting (in MHz) to determine the frequency to
which the Transceiver is tuned. For exampie:
HEATH EIT#
the initial settings have been made, it should not be
necessary to readjust most of the controls. Read the
following information carefully. Good operating techniques
will provide good clean signals and long trouble-free life of
the Transceiver.
CAUTION: Be sure a 50 to 75 Q nonreactive load is
connected to the ANTENNA jack before operating the
Transceiver. This load can be an antenna, a dummy load, or
a properly adjusted linear amplifier. (See the “Installation”
section of the Manual on Page 131).
The PLATE position of the switch causes the meter to read
cathode current to the final stages. There are six numbers on
the S Meter (in additon to 0). When reading cathode current,
each number represents 50 milliamperes. Thus:
Scale Milliamperes of
Number Cathode Current
0 0
3 50
6 100
iS] 150
20 200
40 250
60 300
THE DIAL
Band switch 14. MHz
Dial reading 235 kHz
Frequency 14.235 MHz
—
GW
Xe)
