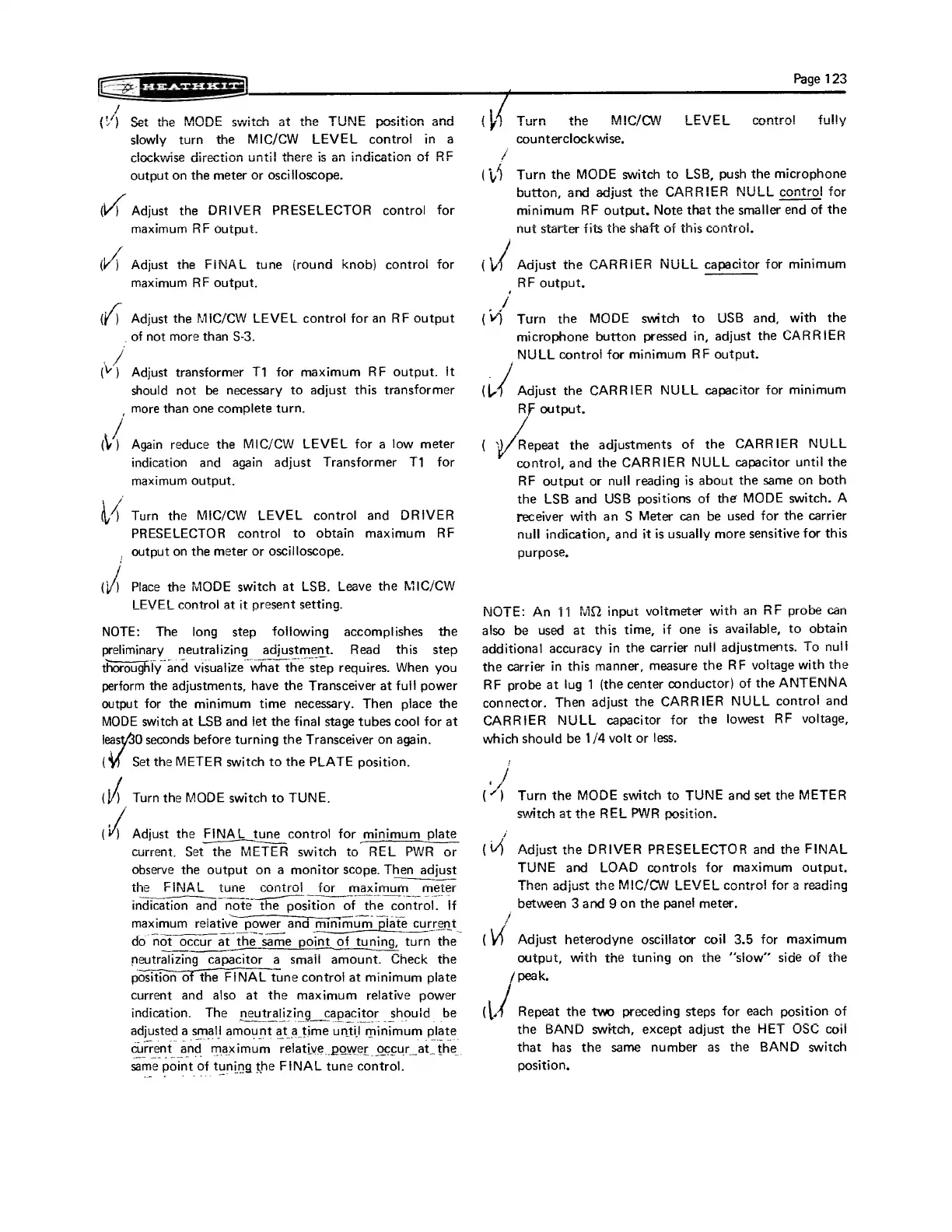

yy vet Wi ie SsWitCnh at wi EVING posit t 0
slowly turn the MIC/CW LEV VEL control in a
clockufse direction until there an indication of RE
CriOCKWISE GITECUON until were i$ an inGaication OT mF
output on the meter or oscilloscope.
VA Adjust the DRIVER PRESELECTOR control for
— . _ Or ~ “ oa
maximum Ar OUTPUL.
Adjust the FINAL tune (round knob) controi for
maximum RF output.
VW) Adjust the MIC/CW LEVEL control for an RF output
_ of not more than S-3.
Lf
(Vv) Adjust transformer T1 for maximum RF output. It
should not be necessary to adjust this transformer
more than one complete turn.
V) Again reduce the MIC/CW LEVEL for a low meter
indication and again adjust Transformer 11 for
maximum output.
y
4 Turn the MIC/CW LEVEL control and DRIVER
PRESELECTOR control to obtain maximum RF
, output on the meter or oscilloscope.
W/) Place the MODE switch at LSB. Leave the MIC/CW
LEVEL control at it present setting.
heated oan ad
NOTE: The long step following accomplishes the
preliminary neutralizing adjustment. Read this step
thoroughly” and visualize what the : step requires. When you
perform the adjustments, have the Transceiver at full power
output for the minimum time necessary. Then place the
MODE switch at LSB and fet the final stage tubes cool for at
jeast/30 seconds before turning the Transceiver on again.
iy Set the METER switch to the PLATE position.
dh Turn the MODE switch to TUNE.
/
i Adjust the FINAL tune control for minimum plate
+h, RAC TOO +~ OMEL DIM ae
Set Wc WIlicn switch Ww Moo FWA UT
observe the output on a monitor scope. Then adjust
ate Cm ey ee ter
control for maximum meter
Ne -
indication and note the position of tl the control. If
aes nnaian eR
maximum relative power and Thinimum
do not occur at the same point of tuning, turn the
neutralizing capacitor a smail amount. Check the
position of the FINAL tune control at minimum plate
current and also at the maximum relative power
indication. The neutralizing capacitor shouid be
adjusted a small amount at a time until minimum plate
current.
the FINAL tune
current and maximum relative. power occur. _at. the.
same point of tuning the FINAL tune control.
Co Eas)
( V
"y Set the MODE switch at the TU position an (VV) Turn the MIC/CW LEVEL ntrol fully
piate current
counterclockwise.
ay) Turn the MODE switch to LSB, push the microphone
B
ittan tha CA
button,
and
adjust
the
CARR
ontrol
for
fon
INVER CUO! TOT
I
minimum RF output. Note that the smaller end of the
ry =f +k ~
nut starter fits the shaft OT ui vis control.
(VW) Adjust the CARRIER NULL capacitor for minimum
RF output.
(“) Turn the MODE switch to USB and, with the
microphone button pressed in, adjust the CARRIER
-NULL control for minimum RF output.
vA Adjust the CARRIER NULL capacitor for minimum
RF output,
( Y/ Repeat the adjustments of the CARRIER NULL
control, and the CARRIER NULL capacitor until the
RF output or null reading is about the same on both
the LSB and USB positions of the MODE switch. A
receiver with an S Meter can be used for the carrier
null indication, and it is usually more sensitive for this
purpose,
NOTE: An 11 MQ input voitmeter with an RF probe can
also be used at this time, if one is available, to obtain
additional accuracy in the carrier null adjustments. To nuli
the carrier in this manner, measure the RF voltage with the
RF probe at lug 1 (the center conductor) of the ANTENNA
connector. Then adjust the CARRIER NULL control and
CARRIER NULL capacitor for the lowest RF voltage,
which should be 1/4 volt or ess.
(1 Turn the MODE switch to TUNE and set the METER
switch at the REL PWR position.
é
(Adjust the DRIVER PRESELECTOR and the FINAL
TUNE and LOAD controls for maximum output.
Than adiset tha MEIC/CAN 1 ro
PH€N AGjUSt ME Wis Uy LEVEL contro
between 3 and 9 on the panel meter.
{fara raadinna
1 TOr @ reaaing
iY Adjust heterodyne oscillator coil 3.5 for maximum
output, with the tuning on the
[ peak.
“slow” side of the
iv Repeat the two preceding steps for each position of
the BAND switch, except adjust the HET OSC coil
that has the same number as the BAND switch
position.
