Service Parts
Beginning Manufacturing Date: Mar 2018
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and
Home Technologies does not sell directly to consumers. Provide model number and serial number when
requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
Log Assembly LOGS-4236
Y
1 Log #1 SRV2208-702
2 Log #2 SRV2208-703
3 Log #3 SRV2208-704
4 Log #4 SRV2208-073
5 Log #5 SRV2208-705
6 Log #6 SRV2208-706
7 Insulation Board 2166-136
8 Glass Heat Shield 2207-723
9 Grate Assembly 2208-015
10
Burner Assembly NG 2207-007
Y
Burner Assembly Propane 2207-008
Y
11 Burner Skirt 2208-102
12 Base Pan 2360-100
13 Valve Assembly Refer to valve page
14 Glass Assembly GLA-6000G
Y
15 Junction Box (Plastic) SRV4021-013
Y
Exhaust Cover Shield 385-105
Additional service part numbers appear on following page. 6/18
3
2
6
5
4
1

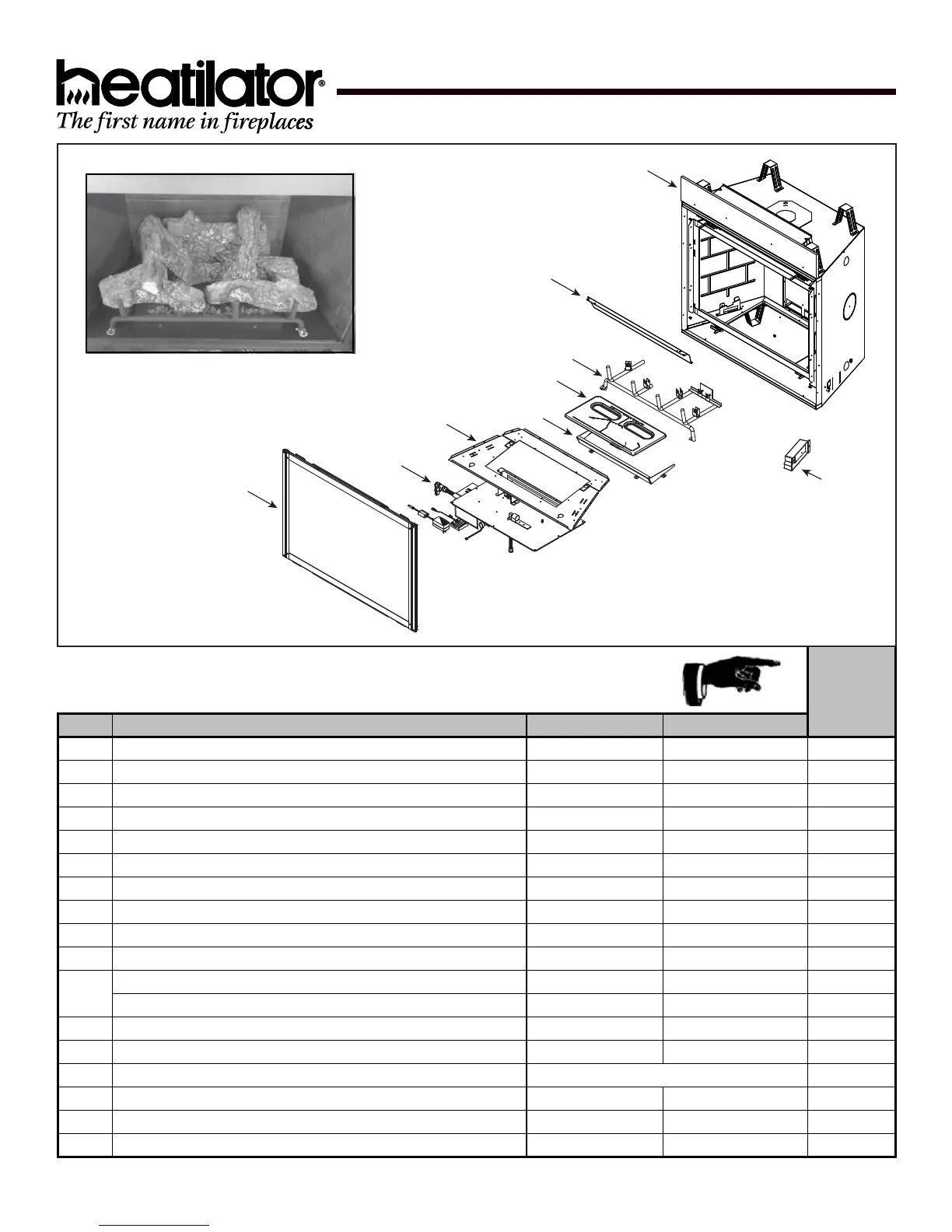

Caliber 36” Gas Fireplace - DV
Log Set Assembly
CD4236IFTR, CD4236IFTLR
7
8
9
10
11
12
13
14
15
B. Service Parts
