7

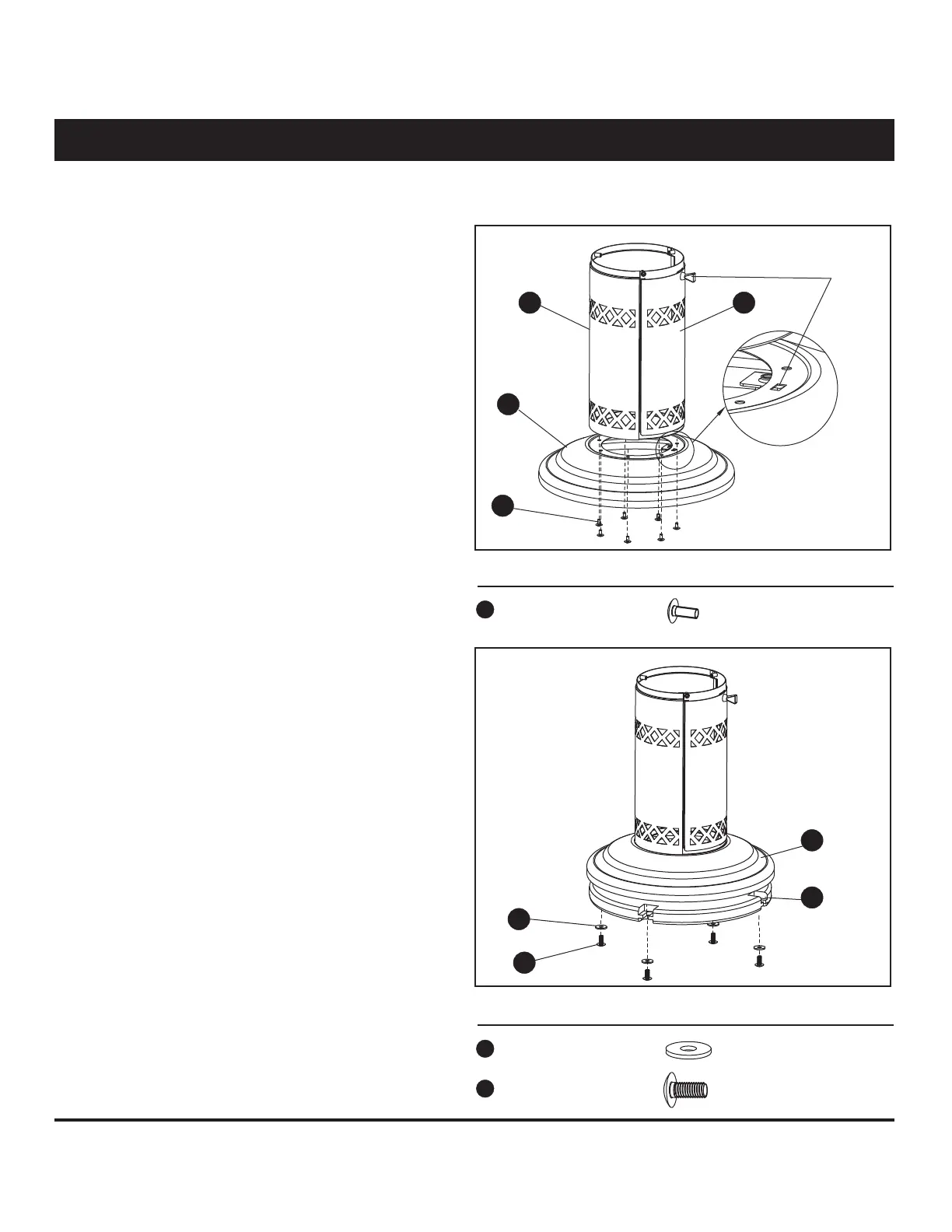

Step 1
Step 2
ASSEMBLY
WARNING : ONLY AN AUTHORIZED GAS TECHNICIAN SHOULD INSTALL THIS PRODUCT.
Step 2
Attach weight block (9) to base (8) using 4pcs
M6 x 14 bolts (D) and 4pcs 6mm washers (C).
Step 1
Attach door & fixed panel (6 & 7) to base (8)
using 7pcs M4 x 10 bolts (B).
Note: Make sure the handle of door align to
the rectangle hole on the base.
B
C
8
9
D
8
7 6
Hardware Used
B
M4 x 10 bolt X 7
Hardware Used
C
6mm washer
M6 x 14 bolt
X 4
D
X 4
