Step 4
ASSEMBLY
8
Step 3

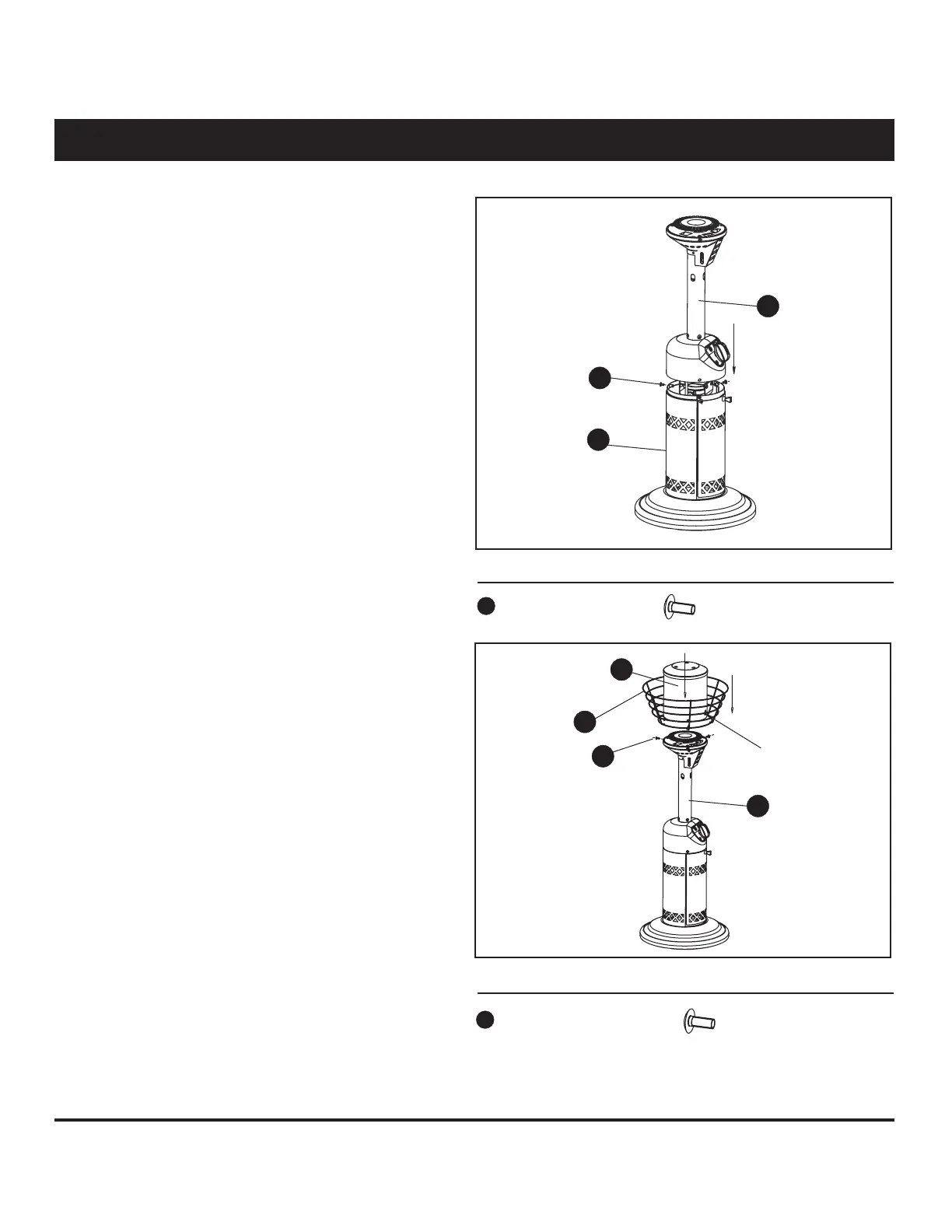

Attach the burner column (4) to the fixed
panel (7) using 3pcs M4 x 10 bolts (B).
Step 4
Attach emitter screen (2) and emitter screen
shield (3) to burner column (4) using 3pcs
M4 x 10 bolts (B).
Hardware Used
X 3
X 3
Hardware Used
B
M4 x 10 bolt
B
M4 X10 bolt
Step 3
Note: The ignition hole on emitter screen must
align with the control knob.
7
4
B
4
2
3
B
Ignition hole
