ASSEMBLY
9
Step 5
Step 5

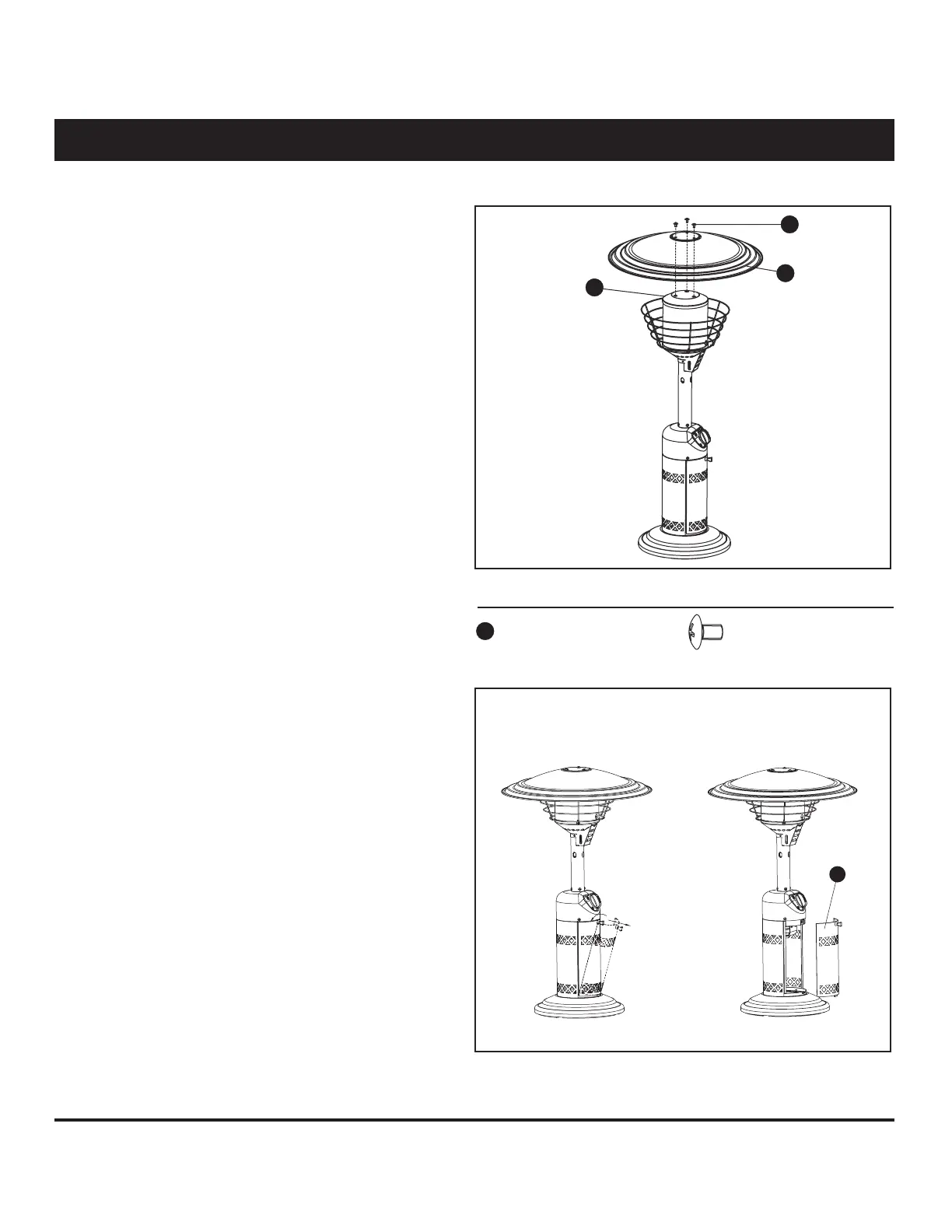

Attach reflector dome (1) to emitter screen (2)
using 3pcs M6 x 10 bolts (A).
Hardware Used
A
M6 x 10 bolt X 3
A
2
1
Rotate counter clockwise and pull handle on door
as illustrated direction,
remove door.
Step 6
Step 6
