CONNECTIONS

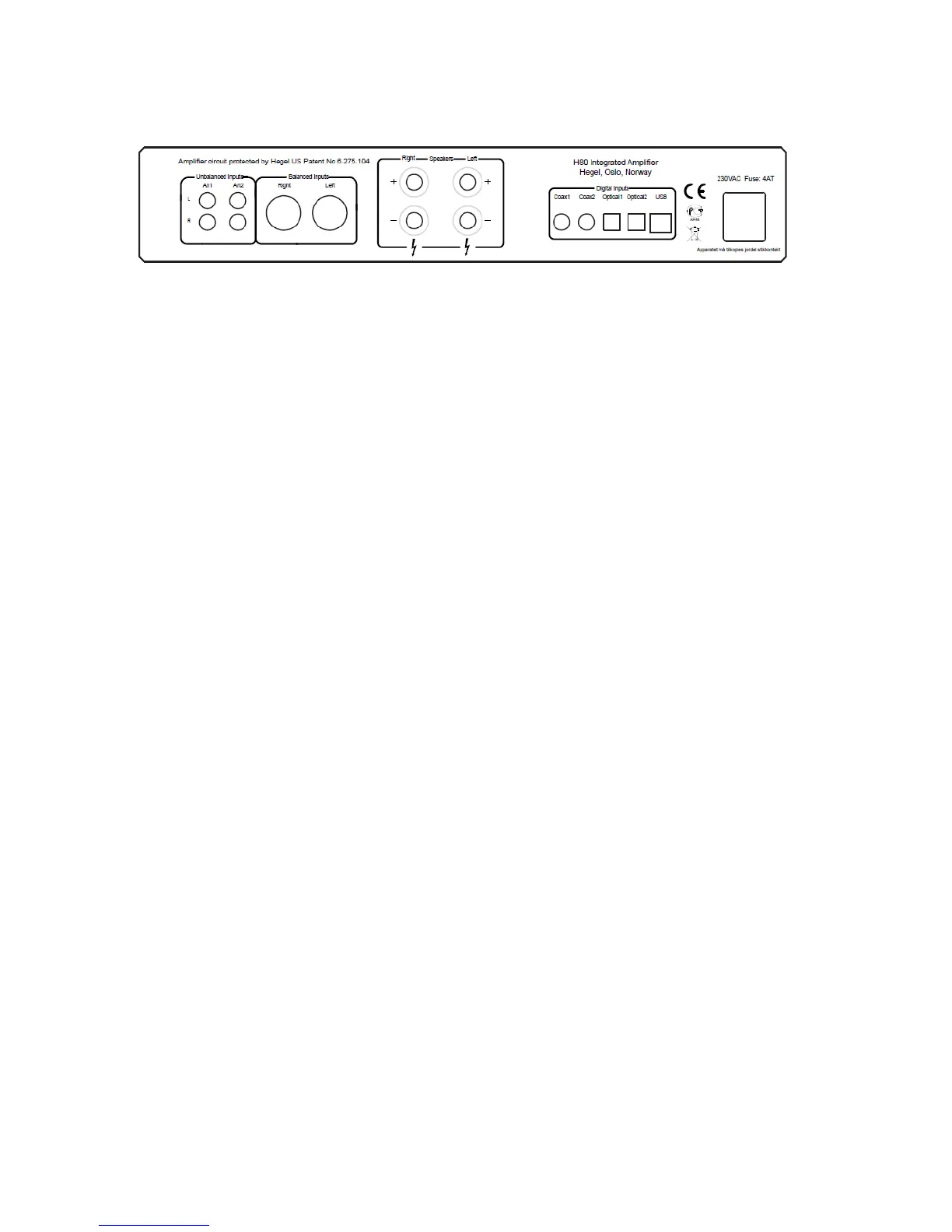

Rear View of the H80 Integrated Amplifier
Always power the amplifier OFF before connecting input/output audio cables and the power cable.
Connections from the left:
Unbalanced Signal Input An1: Phono/RCA input, left/right
Unbalanced Signal Input An2: Phono/RCA input, left/right
Balanced signal input: XLR left/right
(Pin 1 is Chassis Ground; Pin 2 is Positive Phase; Pin 3 is Negative Phase)
Right and Left Speaker outputs
Coax1: Digital input Coaxial/RCA
Coax2: Digital input Coaxial/RCA
Optical1: Digital input TOSLINK/EIAJ Optical
Optical2: Digital input TOSLINK/EIAJ Optical
USB: Computer input
AC Power connection with fuse holder: 230V/115V/100V AC depending on country.
