3. Installing the mounting plate
Decide an installing location for the mounting plate according to the indoor unit
location and pipe direction. Keep the mounting. Plate horizontally with a horizontal
ruler or level.
Drill holes of 32mm in depth on the wall for fixing the plate.
Insert the plastic plugs to the hole, fix the mounting plate with tapping screws.
Inspect if the mounting plate is well fixed. Then drill a hole for pipe.

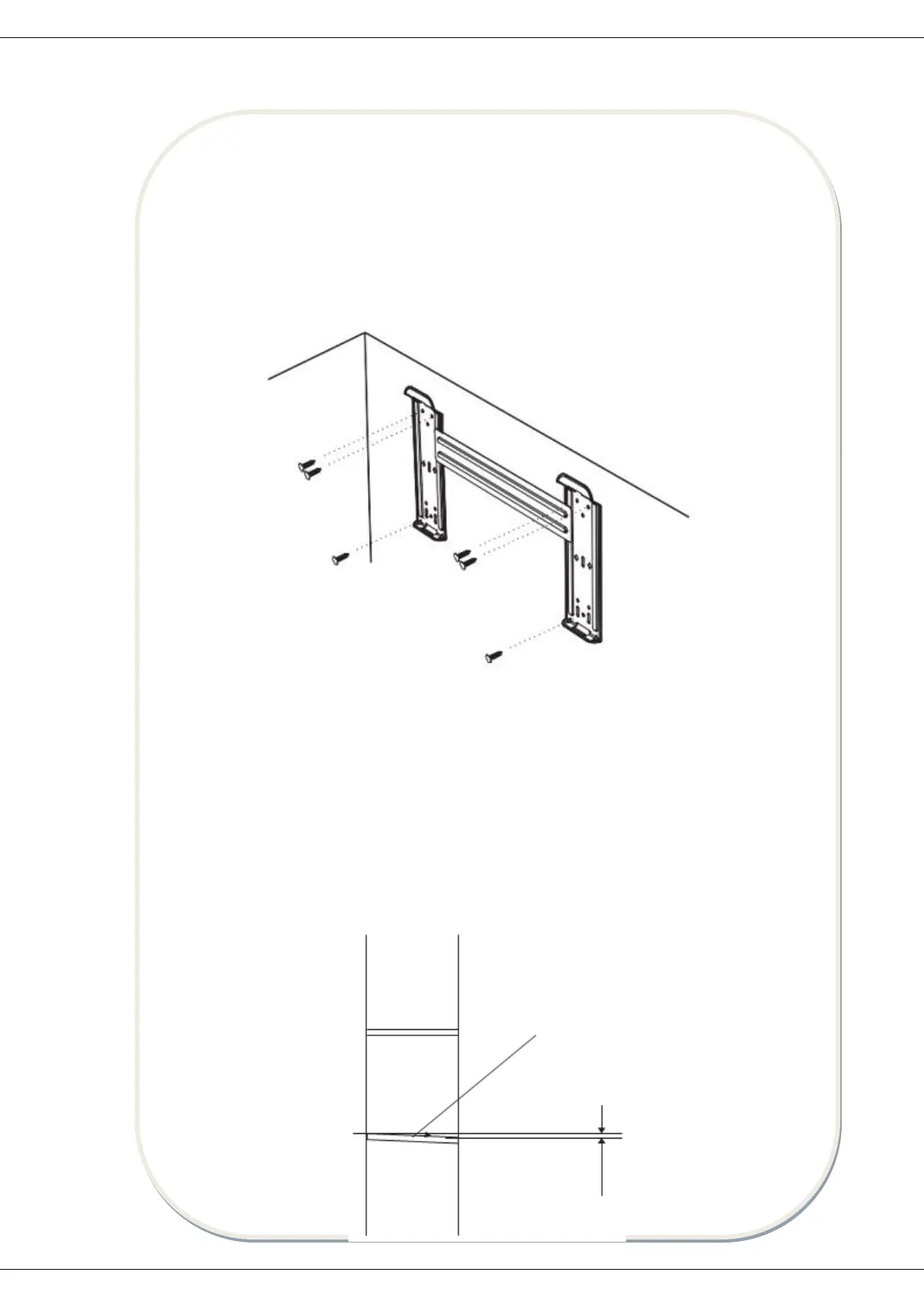

Note: the shape of your mounting plate may be different from the one above, but the
installation method is similar.
Note: as the above figure shown, the six holes matched with tapping screw on the
mounting plate must be used to fix the mounting plate, the others are prepared.
4. Drill a hole for pipe
Decide the position of hole for pipe according to the location of mounting plate.
Drill a hole on the wall about 50 mm. The hole should tilt a little downward toward
outside.
Install a sleeve through the wall hole to keep the wall tidy and clean.
