7 Knock Sensor
20 ARIADNE Knock Control
2. Mounted on engine body

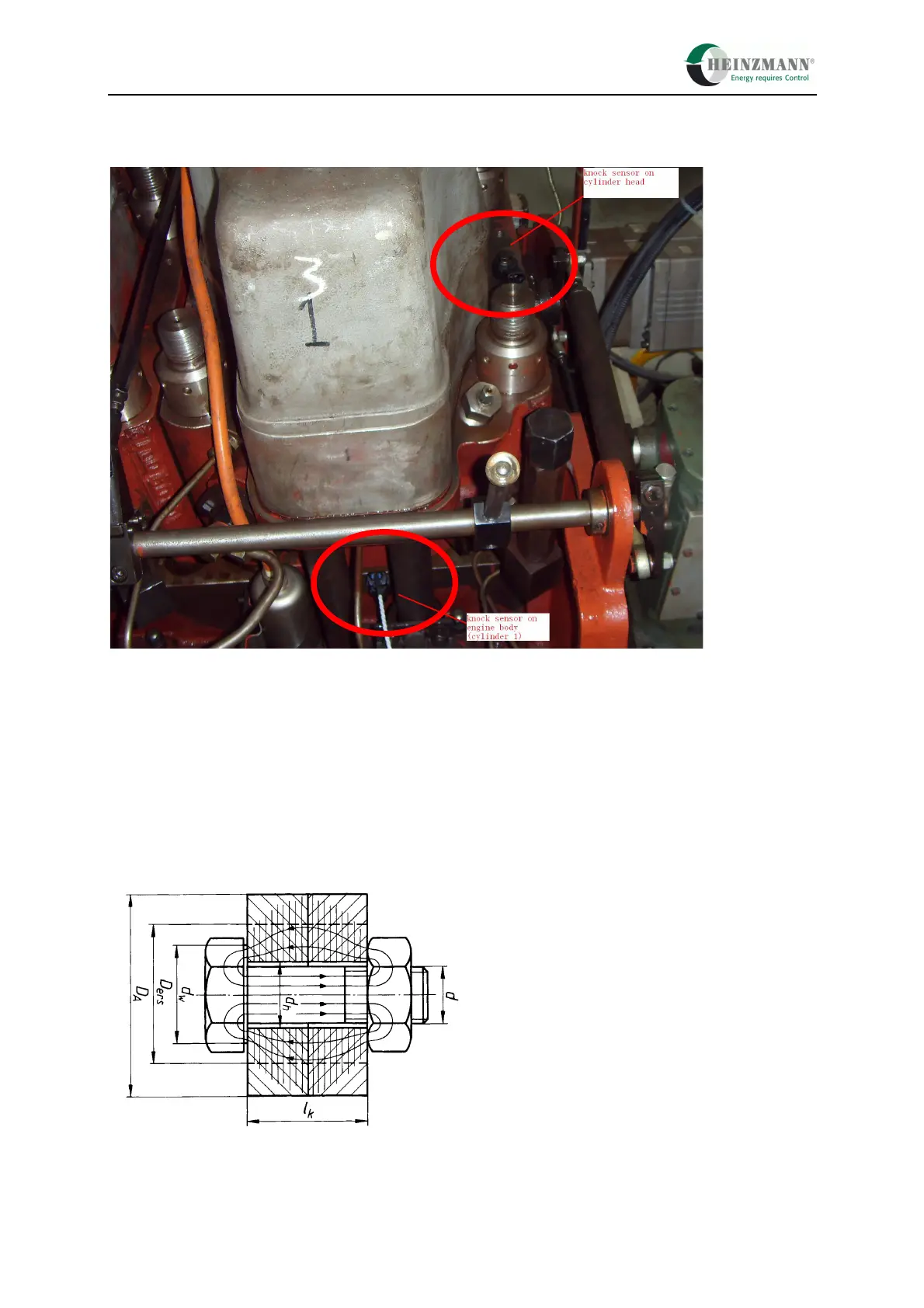

Figure 12: Different Knock Sensor position while testing
3. Mounted on cylinder head screw or stay bolt
Use this variant only when the first two solutions are not possible. Please take care of the sta-
bility of the cylinder head screw. In figure 13 you can find the power lines in a typical screw.
The maximum deepness of the hole and the size of the screw (M8 or M6) depend on size of
the cylinder head screw. Please contact the engine manufacture if the screw is stable enough.
Figure 13: Power lines in a typical screw fitting
