11 Dimensions
ARIADNE Knock Control 27
11 Dimensions
Fastening torque of terminal screws : 0.25 Nm ± 0.02 Nm

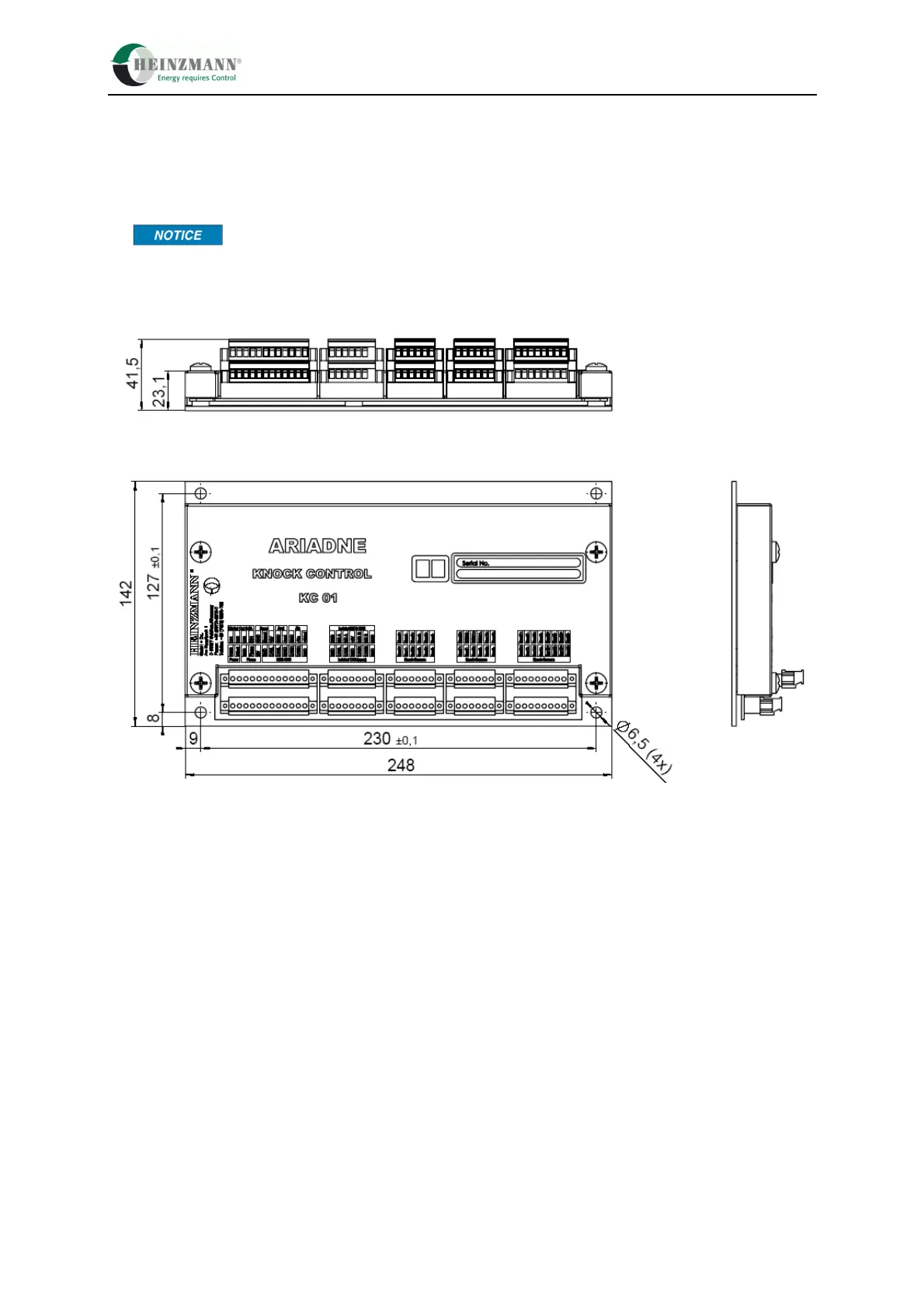

Figure 15: ARIADNE Dimensions
