The axle is applicable to solid tyre.
(1) Clean mating surfaces on wheel shaft and wheel thoroughly and check if it is
damaged.
(2)The bore pattern in the rim should be in line with the bolts of the wheel shaft;
then push the wheel on.

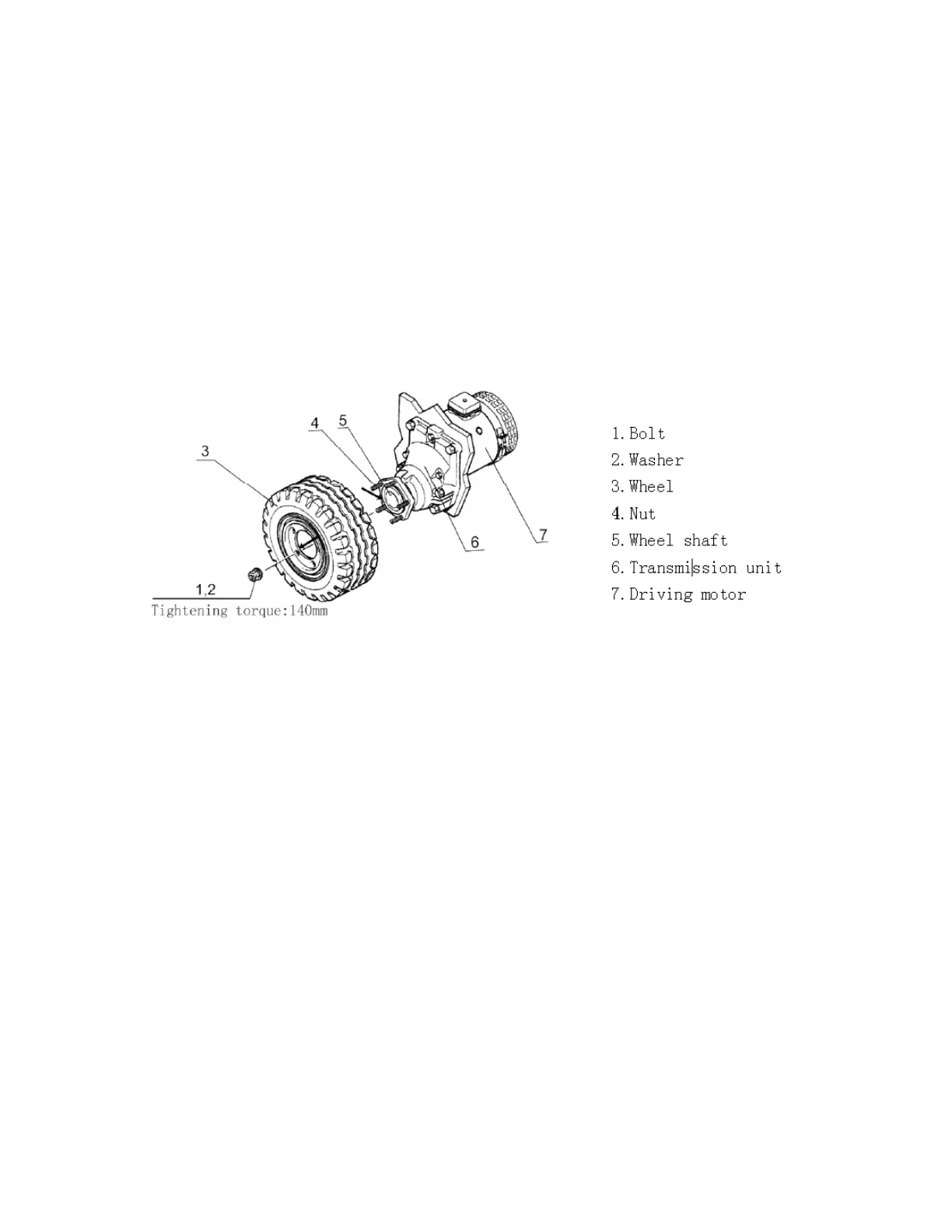

(3) Install hub nuts and tighten them. The tightening torque of it is 140Nm.(see
Fig.1-4).
Figure 1-4
1.4 Replenishing with Transmission Fluid
When a truck has been used for 1000 hours or one year, (The accurate time is
according to the first reached time.) replace gear oil in differential and main reducer.
(1) Unscrew fluid filling plug (part 3) with sealing ring (part1), and let the gear oil
out completely. Before screw fluid filling plug again, remove the dust on the plug. It is
necessary to replace the sealing ring if it is damaged.
(2) Unscrew fluid filling plug (part 4) with sealing ring (part 2).
(3) Add gear oil to transmission box. During adding, air is not permitted to enter for
bubble may be produced in the transmission box.
(4) Fluid capacity approx. 0.35 liters (standard value).The exact oil amount is
determined by funnel.
(5) Gear oil model may be MOBIL ATF200 or ATF210 or ATF220；SHELL
