102

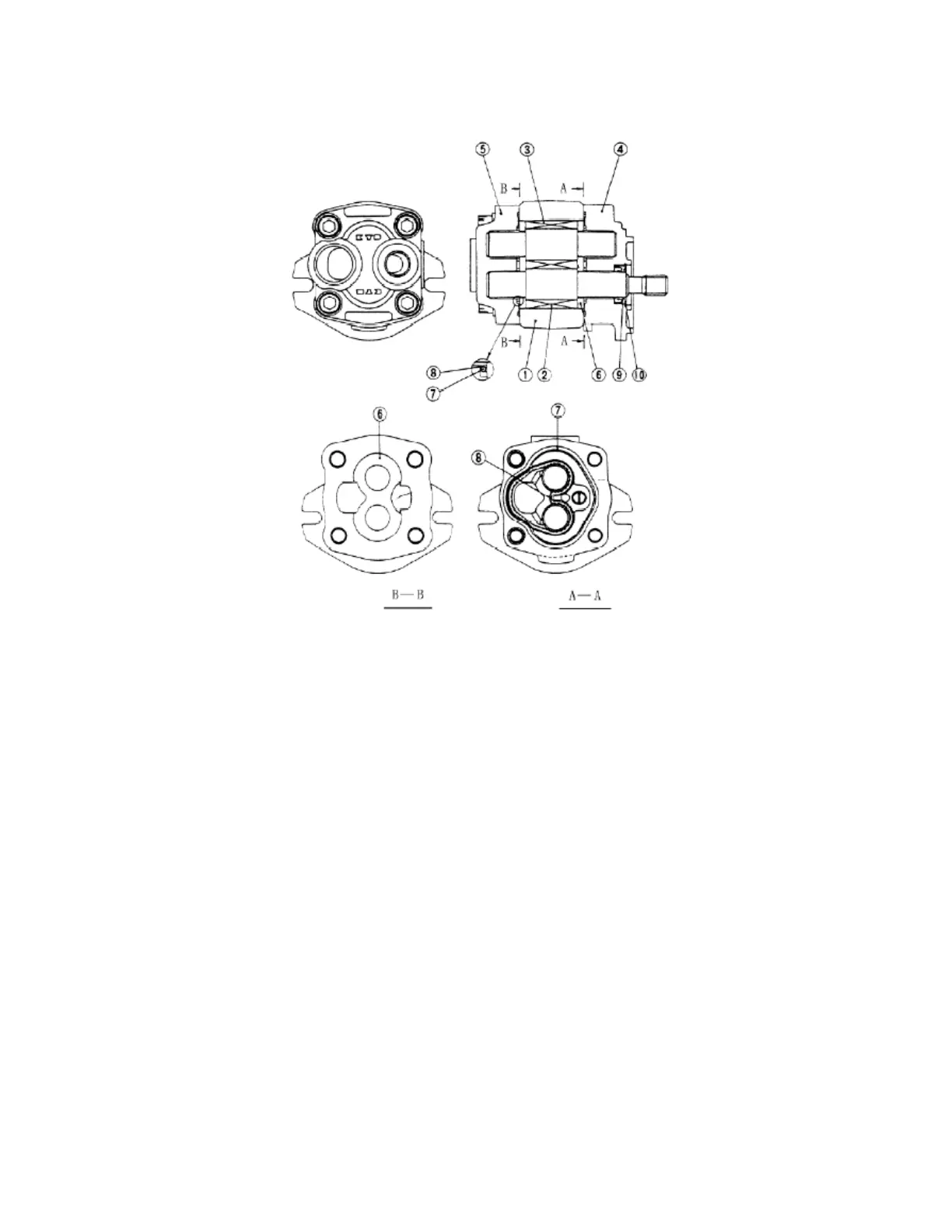

Fig. 5-2 Main pump
(1) Pump body (2) Driving gear (3) Driven gear (4) Front cover (5) Rear cover
(6) Lining plate (7) Seal ring (8) Ring (9) Oil seal (10) Snap ring
5.1.2 Control Valve
The external of the control valve as shown in Fig. 5-3.
