24
OG-100 Collector Approved
OG-300 System Approved
Performance Rating
Collector Data
BTUs PER DAY
Certifying Organization 50 40 30 Performance Equations
Int’l Standard ORTECH 47,400 39,400 28,440
.872 - 3.729 (Ti-TA) / I
K
A
X = 1.00-.0316(S) - .0104(S)
2
National Standard SRCC 47,400 39,400 28,440
.872 - 3.729 (Ti-TA) / I
K
A
X = 1.00-.0316(S) - .0104(S)
2
Florida Standard 956 BTU’s/ft
2
956 BTU’s/ft
2
956 BTU’s/ft
2
.828 - 3.26 (Ti-TA) / I
K
A
X = 1.00 - .11(S)
Performance Note: Solar scientists agree that there are many variables to consider when properly sizing a system. Wind condition, micro climates, ow
rates, orientation and shading of the pool and/or collectors all affect the performance of your system. A BTU rating is just one of the many factors to consider.
Collector Model 50 40 30 12.5 10
Size, Nominal 4’ x 12.5’ 4’ x 10.5’ 4’ x 8’ 1’ x 12.5’ 1’ x 10.5’
Width 47” (120 cm) 47” (120 cm) 47” (120 cm) 11.75” 11.75”
Length 152.1” (380 cm) 127” (323 cm) 91” (231cm) 151.5” 127”
Area (sq. ft) 50.0 (4.65 m
2
) 41.6 (3.88 m
2
) 30.0 (2.77 m
2
) 12.2 10.2
Manifold Diameter 2” (5.08 cm) 2” (5.08 cm) 2” (5.08 cm) 2” 2”
Weight (dry) 22 lbs (10 kg) 19 lbs (8.5 kg) 15 lbs (6.8 kg) 5.5 lbs 4.75 lbs
Volume Capacity 3.7 gal (14 L) 3.1 gal (12 L) 2.4 gal (9 L) .93 gal .78 gal
Workin gPressure 90 psi 90 psi 90 psi 90 psi 90 psi
Burst Pressure 270 psi 270 psi 270 psi 270 psi 270 psi
Recommended Flow 5 gpm 4 gpm 3 gpm 1.25 gpm 1 gpm

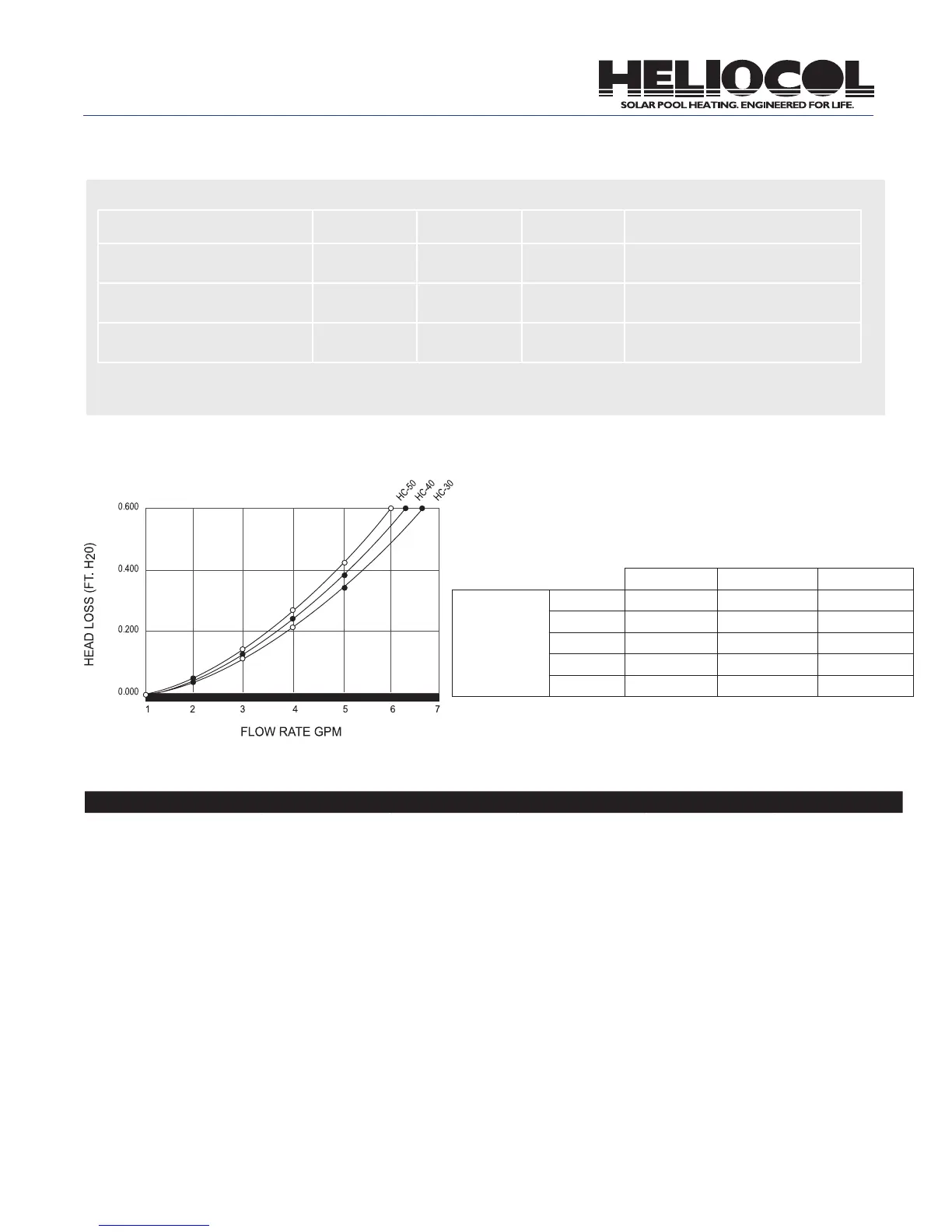

Head Loss Per Flow Rate
Heliocol 50
Collector Rating Number
Thousands of BTU’s per day per collector
Category T(°F)
Solar Insolation
2,000 BTU/ft
2
1,500 BTU/ft
2
1,000 BTU/ft
2
Water Temp.
Minus Air Temp
A (-9) 98.74 78.07 57.49
B (+9) 64.13 44.01 23.96
C (+36) 22.91 7.64 0
D (+90) 0 0 0
E (+144) 0 0 0
