Heliocol HC50 - Solar Collector Layout and Hydraulics

Solar Collector Layout and Hydraulics

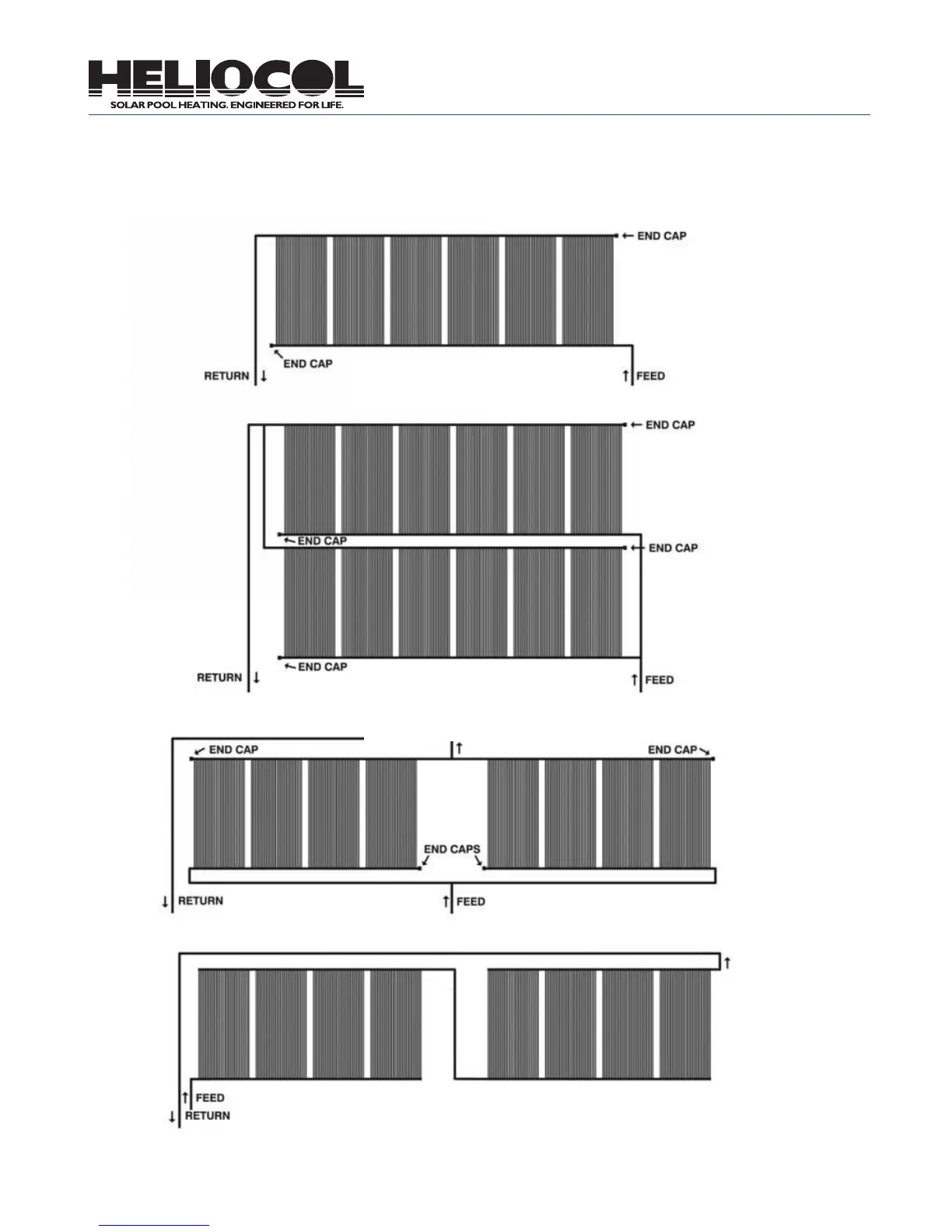

Shown Below are the Most Common Solar Collector Installations
7
Fig. 1.1 - Single Row
Fig. 1.2 - Double Row
Fig. 1.3 - Single Row Spit Feed
Fig. 1.4 - Series Feed
Note: No more than two (2) arrays are allowed in series feed
and no more than eight (8) collectors are allowed in each array.
