Collectors and Installation Kits
Heliocol Components
There are three Heliocol components to each system—
collectors, collector kits and row kits. For each Heliocol
Collector that you install, you will need a collector kit.
For each row (bank) of collectors that you install, you
will need a row kit. To go around vents or pipes larger
than six inches (chimneys, skylights or changes in roof
elevations), you will need a row spacer kit. Refer to the
kit contents table below for more information regarding
these kits.
PK: Collector Kit
One of these kits is required for each collector. It
contains the parts necessary to connect the collectors
together and mount them on the installation surface.
RK: Row Kit
One of these kits is required for each row (bank) of col-
lectors. It contains the parts necessary to connect the
collectors to the feed and return lines or collector header.
RSK: Row Spacer Kit
One of these kits is required if you need to bypass a
vent pipe or obstacle larger than six inches. It is also
used to connect collectors that are on different roof lev-
els or that are facing different directions into one row. It
contains the parts necessary to connect the collectors
to the PVC pipe between them.
Other Kits
PTK: Pressure Testing Kit
This kit gives you the components you need to pres-
sure test the system once the installation is complete.
RTK: Repair Tool Kit
In the event a collector is damaged, this kit contains
everything needed to make a repair to a riser tube.
5

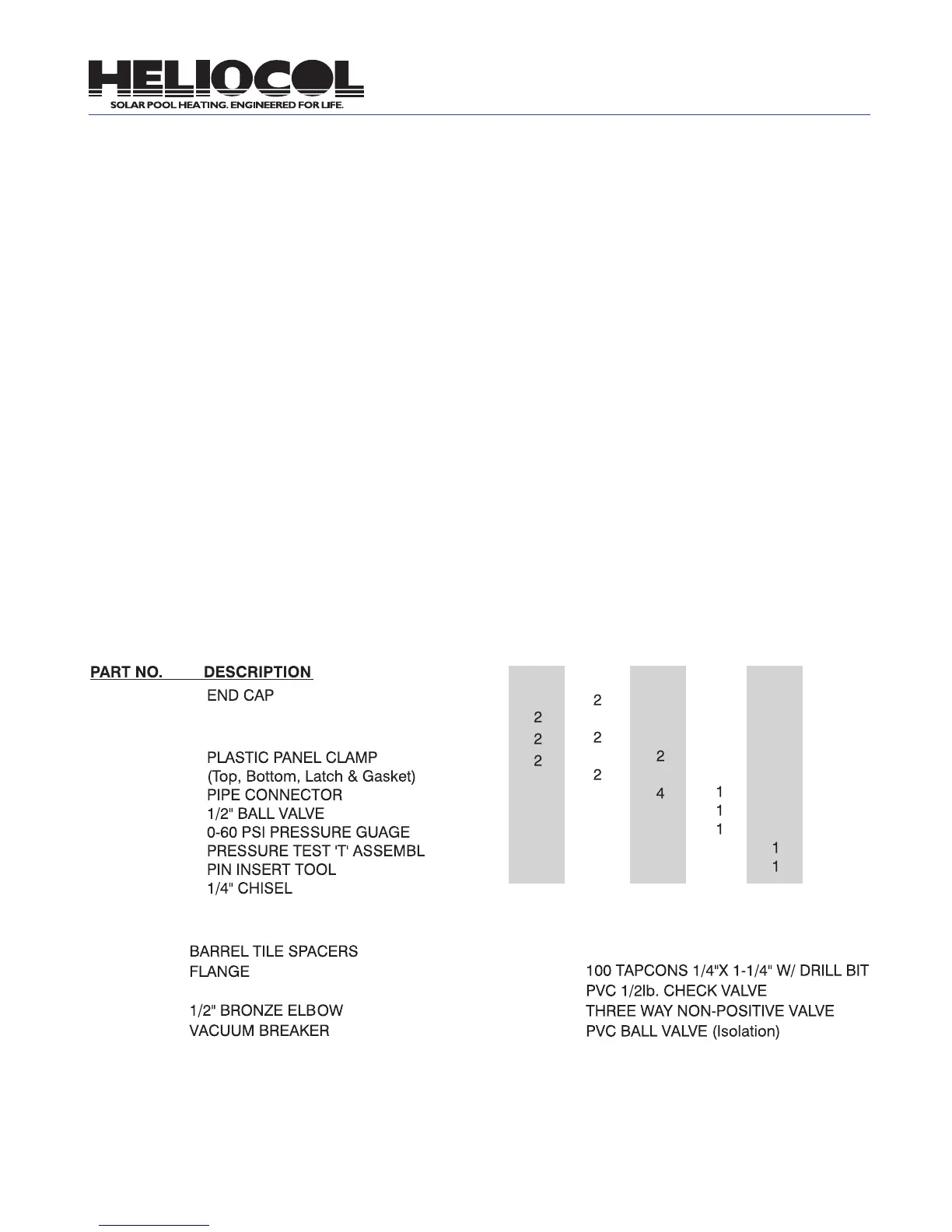

Kit Contents
Other Installation Components Referred to in this Manual
1/4” X 1-1/2” STAINLESS STEEL LAG BOLT
1/4” X 2” STAINLESS STEEL LAG BOLT
GATOR CLAMP
GATOR CLAMP
Y
1/4” x 4” STAINLESS STEEL LAG BOLT
“G” PIPE CLAMP
106A
110 Short
110 Long
113
117
140
141
142
130
133
PK RSKRK PTK RTK
110BTS
111
116
120
121A
124
125
126
127
1790
3344
5210
