Step 9:
Install Computer:
Connect the three wires coming out of the computer mounting plate with
the three wires coming out of the back of the computer. Simply snap the
connectors together. The two similar wires/connectors can be connected
with either of the same style on the back of the computer. It doesn’t matter
which goes to which.
Step 10:
Once the wires are all connected, slowly slide the computer onto the
mounting plate. Please be extremely careful not to pinch the wires as the
computer slides down onto the bracket. Once fully slid onto the bracket,
install the four computer mounting bolts in the four holes on the back of the
computer. Do not over tighten. Just make them secure.
3/ ASSEMBLY
- 13 -

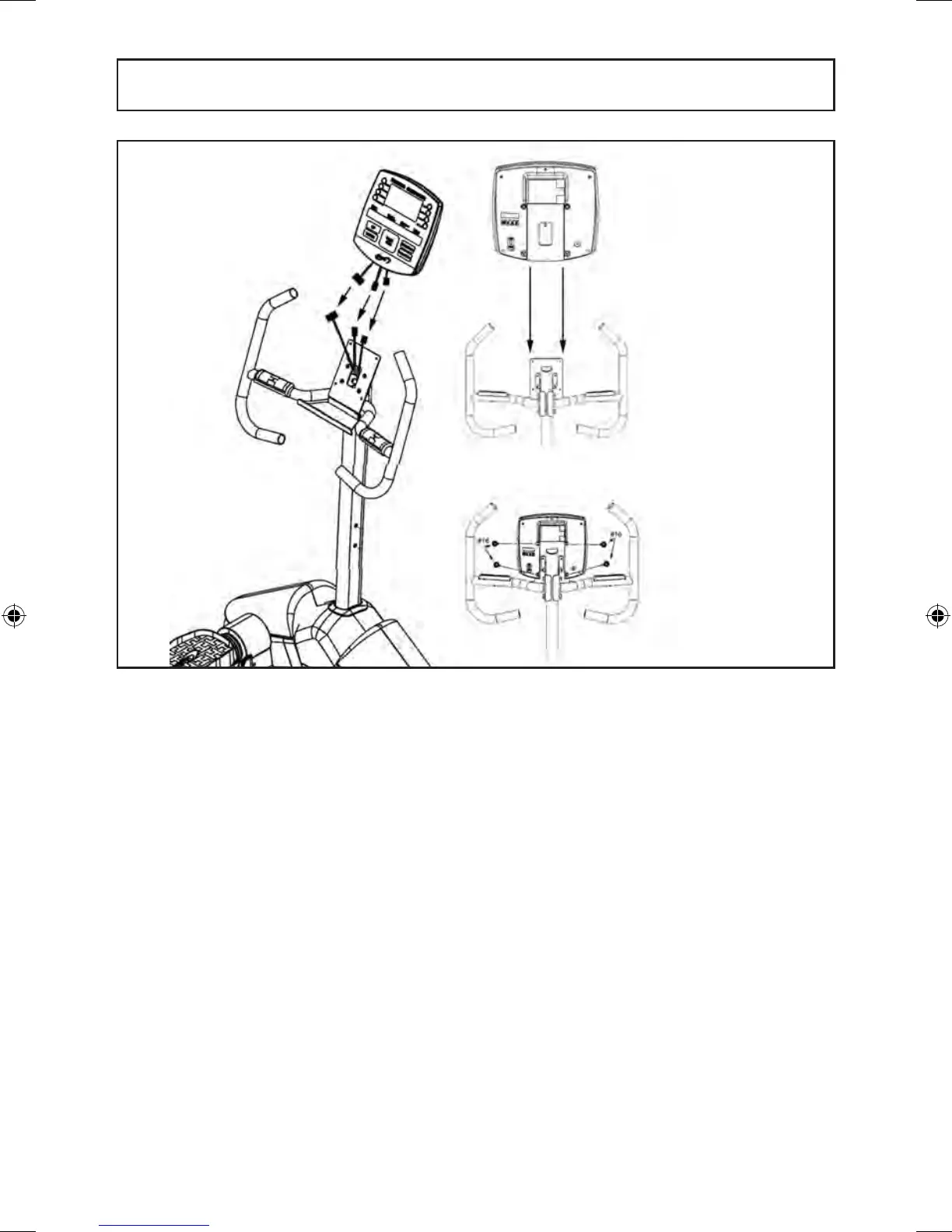

Slide onto
bracket
Beware not to
pinch computer
wires
