3. Installation of window kits. Partially open the window and then fix the window kits to the
window (Figure 3 & 4 below).
The window kits can be installed on most normal and vertical windows, and it is adjustable.
4. Please make sure the unit is upright. The unit should be placed on the even floor with the
minimum distance 50cm away from furniture and walls (Figure 5).
Fix the other end of the heat- exhausted hose to the air-outlet window kit (Figures 6 & 7).

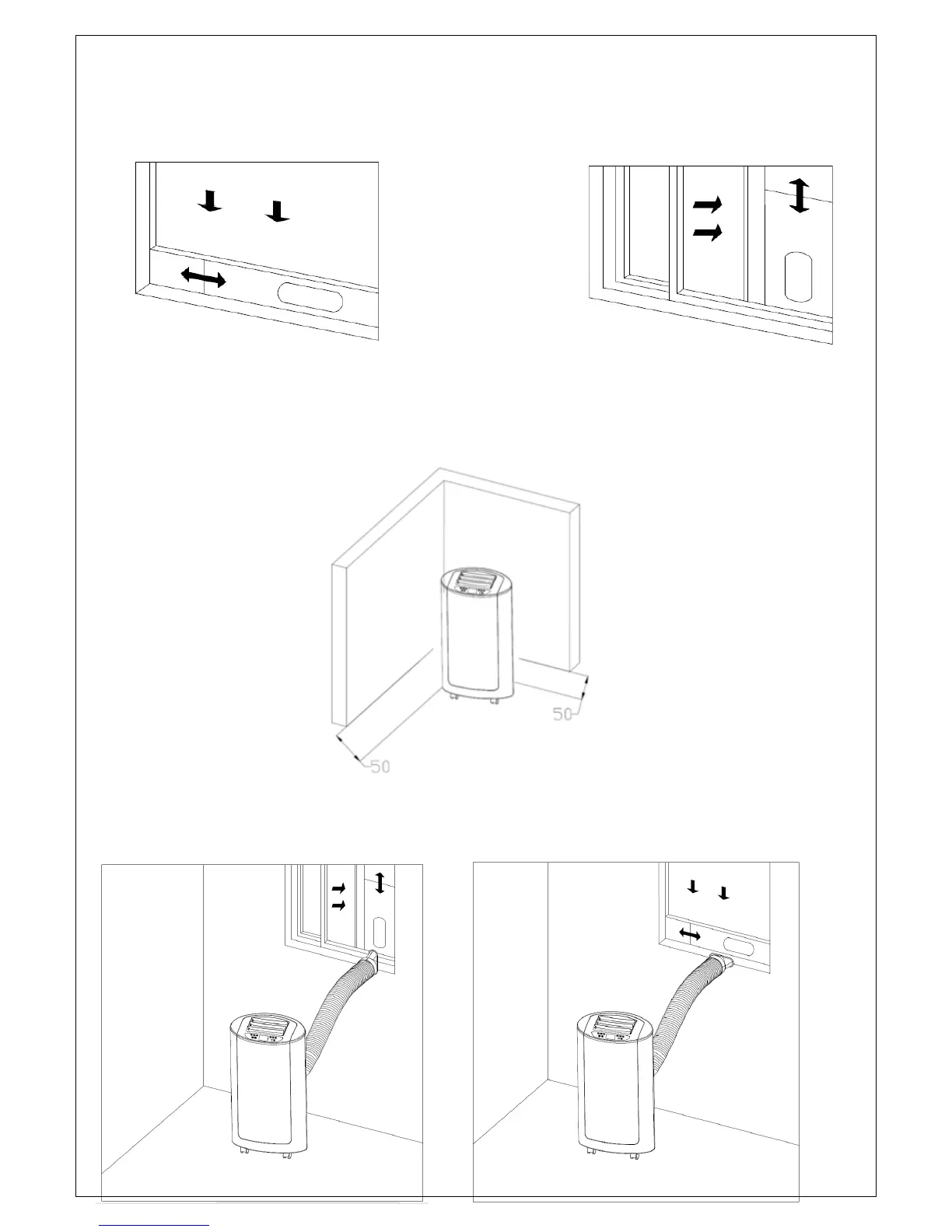

Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
