OPERATING INSTRUCTIONS TREND SERIES

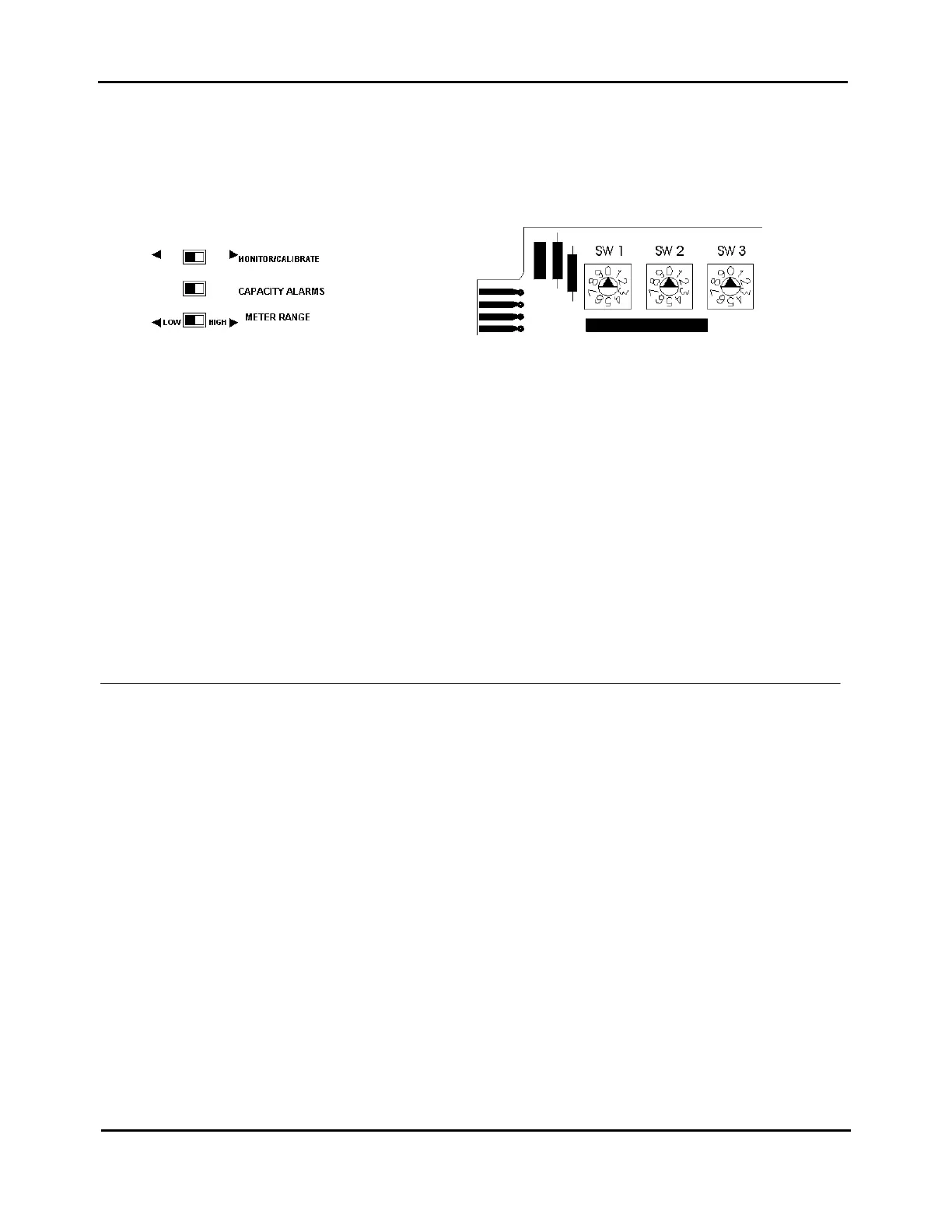

METER CALIBRATE SWITCHES
These switches, located on the microprocessor board (slot #2), are used to set meter scale based on rated
machine capacity. Pull the microprocessor board out of the card rack for this adjustment. Make sure power
to the instrument is OFF before pulling any boards from the rack.
SETTING METER CALIBRATE SWITCHES ON FOUR CHANNEL SYSTEMS
• FOR MACHINES UP TO AND INCLUDING 500 TON TOTAL CAPACITY
Put the METER RANGE selector to the LOW position. Calculate the capacity of one corner by dividing the
total machine capacity by the number of channels (4).
Set the METER CALIBRATE switches to the capacity of one corner using the red switches labeled SW1,
SW2, SW3.
• FOR MACHINES OVER 500 TONS TOTAL CAPACITY
PRESS SWITCH PRESS SWITCH PRESS SWITCH
CAPACITY SETTING CAPACITY SETTING CAPACITY SETTING
550 014 900 023 3500 088
600 015 950 024 4000 100
650 016 1000 025 4500 113
700 018 1500 038 5000 125
750 019 2000 050 5500 138
800 020 2500 063 6000 150
850 021 3000 075 6500 162
8
