OPERATING INSTRUCTIONS TREND SERIES

JOB DATA CONTROL (cont.)

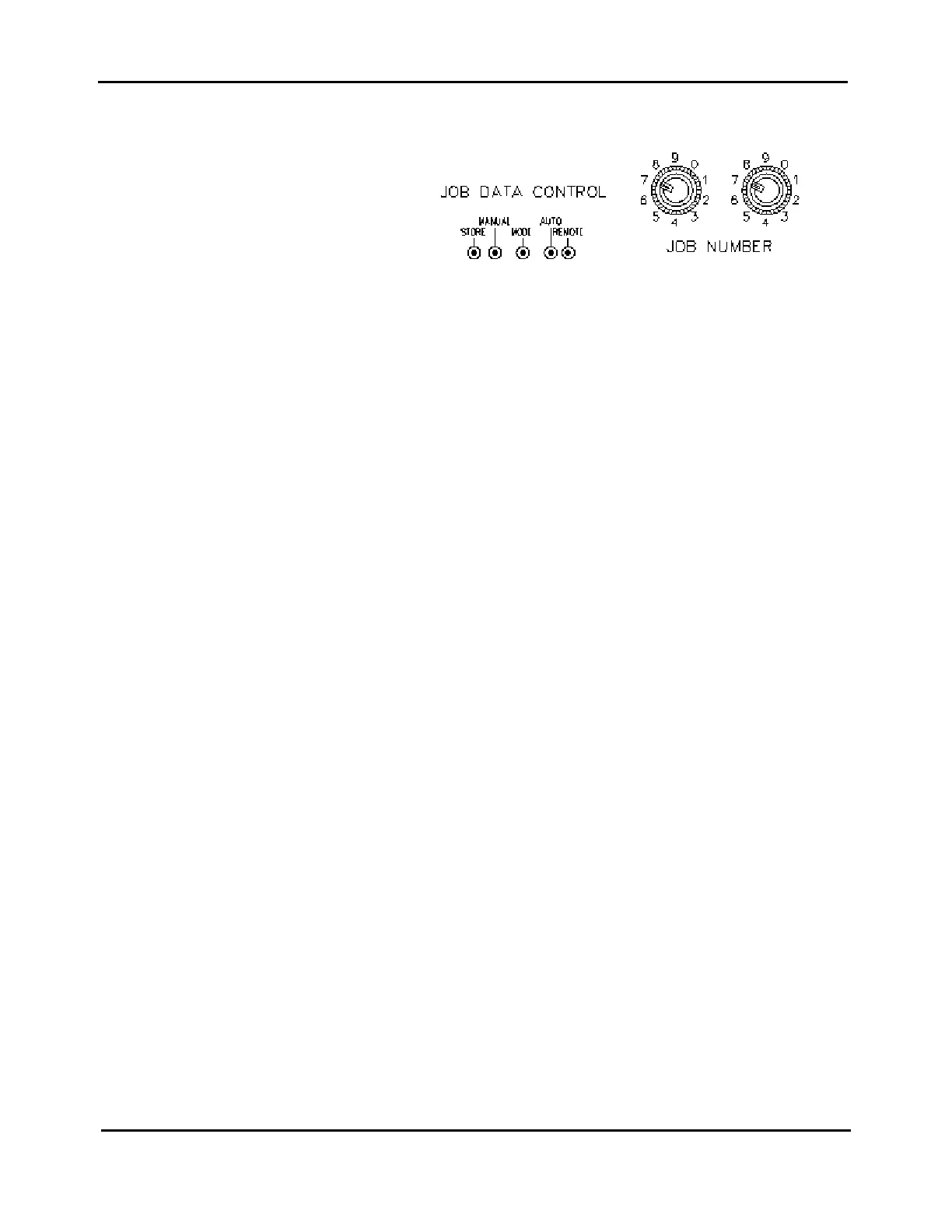

TESTING FOR OPEN JOB NUMBER

1. Put JDC switch in AUTO mode.

2. Select job number.

3. Yellow LED will flash if job number is available.

CALLING STORED JOB DATA FOR DIE SETUP

1. Select job number to be recalled.

2. Put JDC switch in auto mode.

3. Capacity and Tolerance settings are activated for first hit protection.

4. Press Target Load button on front panel to display target values on each channel.

Job number is displayed on center meter.

5. With front panel function selector switch in SETUP mode, Trend columns are used to indicate if

the current peak load value is above or below the stored target value.
