QuickStart Guide PN/EtherNetIP Coupler | Version 3 | 13.08.2020 10

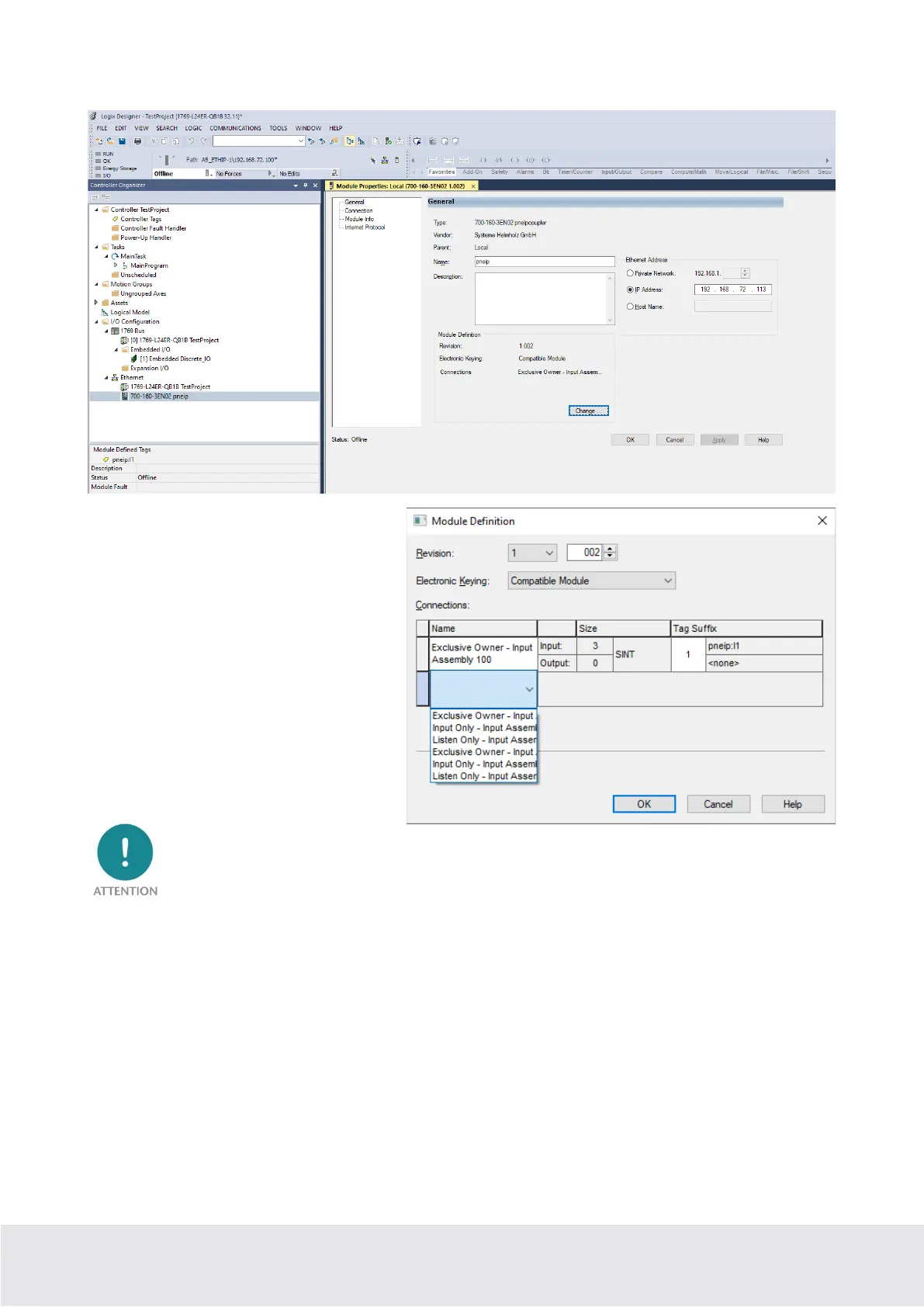

The module may be added to the hardware configuration under its order number (700-160-3EN02).
The assembly definitions are also available
through the EDS import.
The assemblies are based on the data type
"SINT" and have a length that corresponds
to the data defined in the PROFINET
configuration.
The Rockwell Studio can manage assemblies of up to 500 bytes. If more data is to be exchanged
between the PROFINET PLC and the EthernetIP PLC, additional assemblies must be created.
