QuickStart Guide PN/EtherNetIP Coupler | Version 3 | 13.08.2020 4
4 Connection
The left RJ45 sockets "X1 P1" and "X1 P2" are used to connect the PROFINET network, the right RJ45
sockets "X2 P1" and "X2 P2" are used to connect the EtherNet/IP network.
The PN/EtherNetIP coupler must be connected to the wide range input DC 18 ... 30 V via the supplied
connector plug, the PN/EtherNetIP Coupler must be supplied with DC 24 V. The power supply is
designed redundantly, at least one supply path PS 1 or PS 2 must be connected.
The housing of the PN/EtherNetIP coupler is not grounded. Please connect the functional grounding
connection (FG named FE on front) of the PN/EtherNet/IP coupler correctly with the reference
potential.

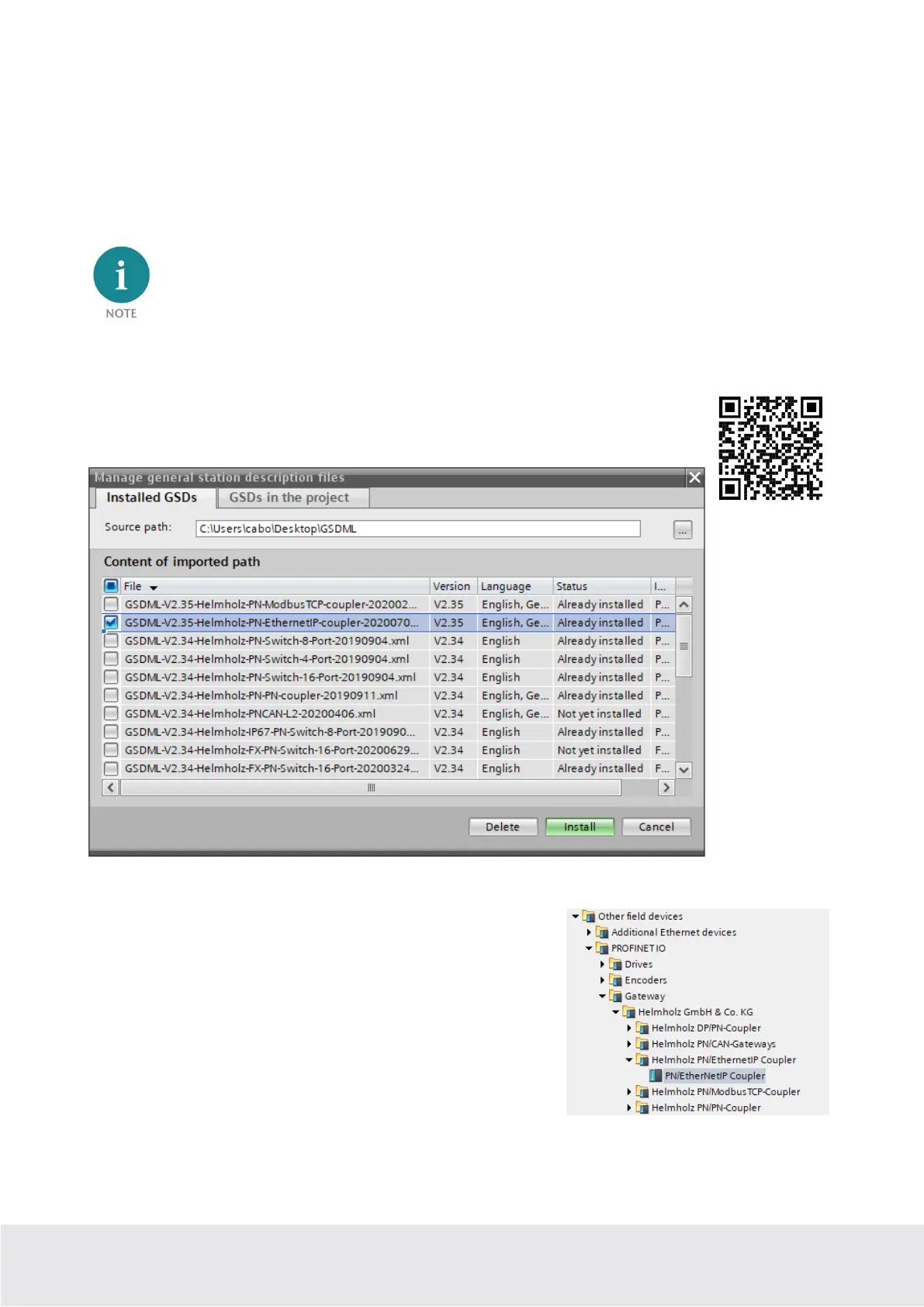

5 Install GSDML file
Please download the GSDML file ("GSDML-V2.35-Helmholz-PN-EthernetIP-coupler-
_____.xml") from www.helmholz.de or scan the QR code. Install the GSDML file in the
TIA Portal under the menu "Tools" / "Manage general station description file (GSD)".
The PN/EtherNetIP Coupler is listed in the hardware catalog
under "Other field devices / PROFINET IO / Gateway / Helmholz
GmbH & Co. KG".
