V104s GPS Compass User Guide
23
Power/Data Cable Pin-out Specifications
Figure 2-9 show the power/data cable pin-out, while Table 2-1 shows the
cable’s pin-out specifications.

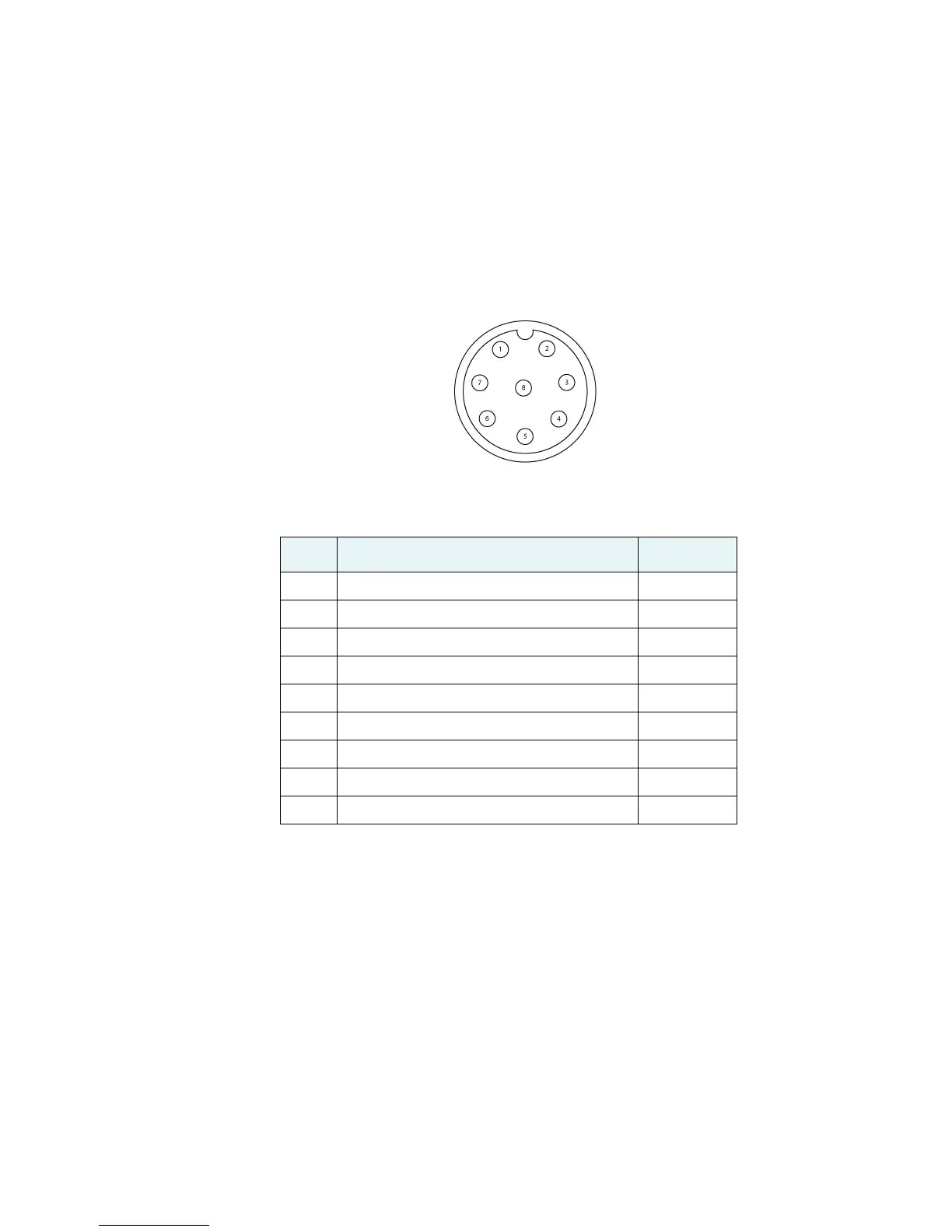

Figure 2-9: Power/data cable pin assignment
Table 2-1: Power/data cable pin-out
Pin Function Wire Color
1 CH-GND Drain
1 DGND Brown
2 RXB Blue
3 Power Input Red
4 Power Ground Black
5 TXB Green
6 RXA Orange
7 TXA Purple
8 1PPS Yellow
