BRINE REFILL The device is in the position of fourth operation cycle - filling the salt tank with
water in order to prepare the solution of brine for the next regeneration. The level
of brine (water in the salt tank) is regulated by the time of filling water. The longer
the time, the more salt dissolves in the water. In this cycle the controller shuts off
water inlet to the water system. Thanks to this, the controller protects the water
system against the penetration of impurities from rinsing.
FAST RINSE
The device is in the position of fifth operation cycle - fast rinsing of the resin to remove any
remaining of brine, setting of the filter bed. Water, after flowing through the resin, is directed
upwards through a central pipe and further to the release to sewage. In this cycle the
controller shuts off water inlet to the water system. Thanks to this, the controller protects the
water system against the penetration of impurities from rinsing.

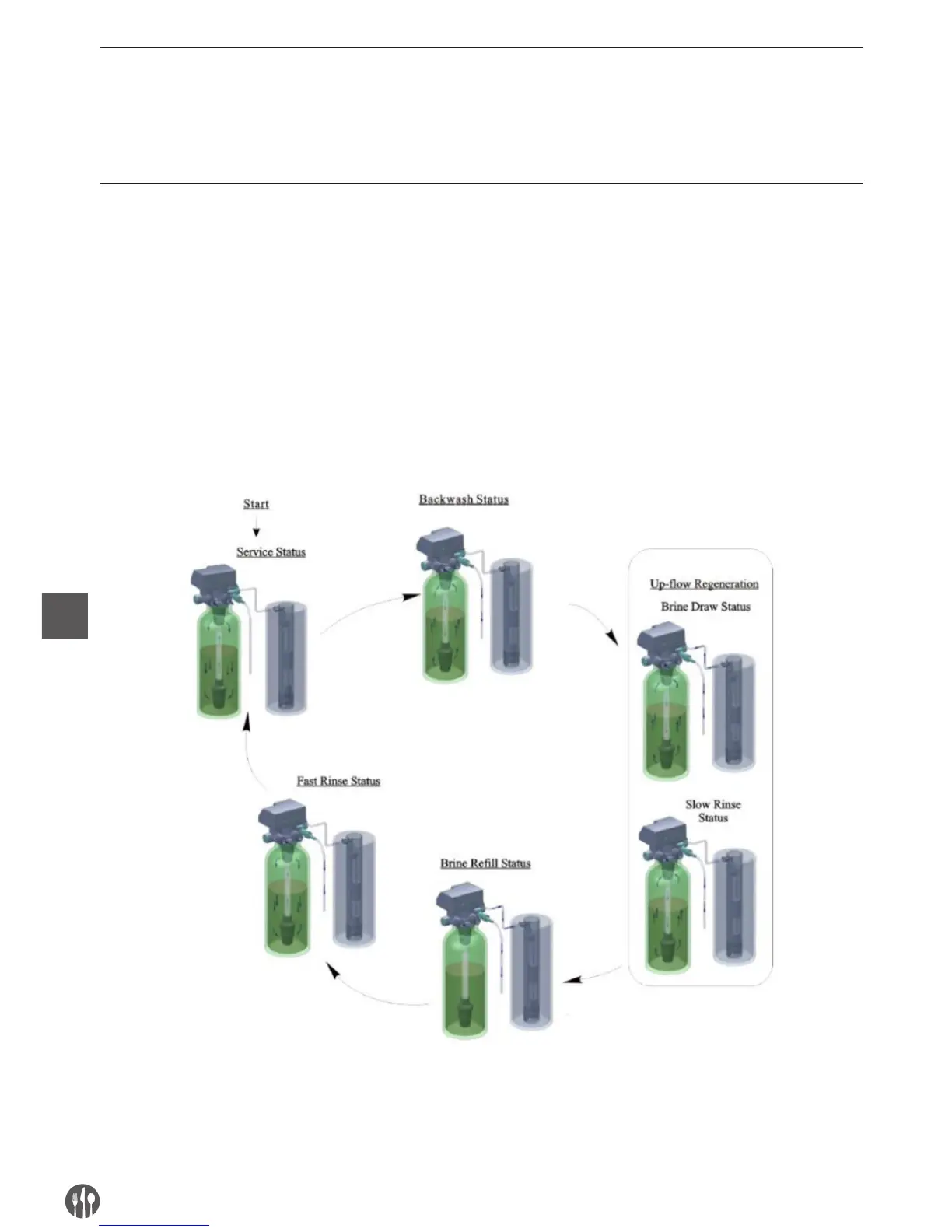

7.1. DIAGRAM OF OPERATING CYCLES OF THE DEVICE FOR 230442 MODEL
