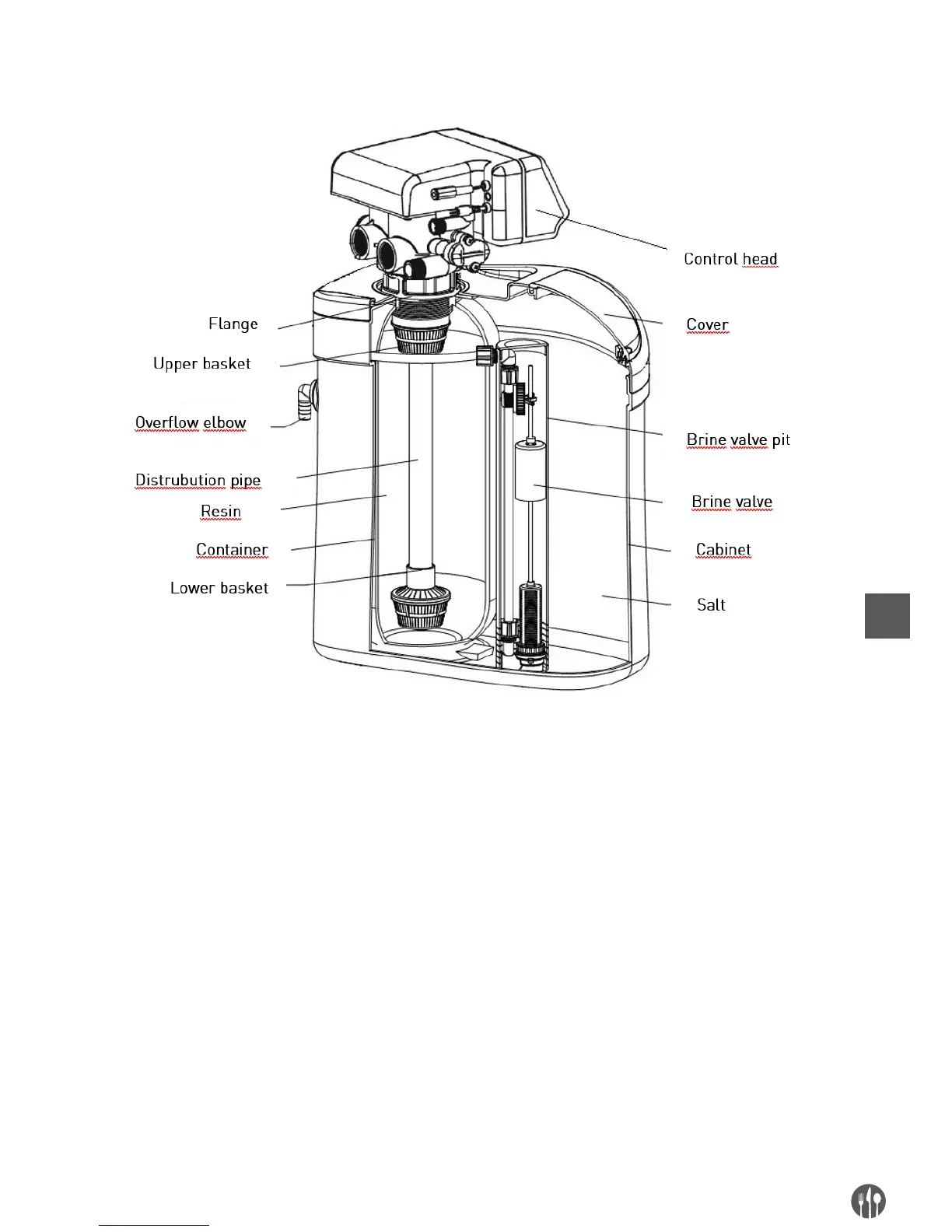

5.1. DIAGRAM OF THE DEVICE
Fig. B
An example of recommended installation is shown
in Fig. B. Water outlet to drainage from the head
may be done by means of a 1/2” flexible garden
hose. An overflow elbow on the side of the housing
of the softener shall be connected to the drainage
in the same manner as the outlet from the head
(e.g., with a 1/2” flexible garden hose).
Connections to drainage shall be done below their
level in the water treatment system. Particularly
the emergency overflow of the softener housing
shall be observed – any potential excess of water
will be drained gravitationally.
After all connections are done, fill the salt tank with
4kg of tablet salt. Salt shall be replenished as the
consumption thereof progresses, so that its level
is always above water level. Table 2 presents aver-
age salt consumption per regeneration. Exclusively
tablet salt intended for water softening shall be
used.
