5
T72007 A
HXL5
®
HUB MAINTENANCE PROCEDURES
PREPARING TRAILER FOR SERVICE
Information for trailer preparation, safety and
precautionary statements, refer to Hendrickson literature
number T12007, available at www�Hendrickson-intl�
com/TrailerLit�
NOTE: DO NOT service a suspension or any
components that is under warranty without
rst contacting Hendrickson Technical Services�
Refer to CONTACTING HENDRICKSON for details�
WARNING: Do not work under a trailer supported
only by jacks. Jacks can slip or fall
over, resulting in serious personal
injury. Always use safety stands to
support a raised trailer.
INTRODUCTION
The HXL5
®
Hendrickson Extended-Life 5-year System™
hub assembly (front cover and Figure 1) comes pre-
assembled, adjusted and lubricated from Hendrickson�
Because Hendrickson controls the assembly, internal
cleanliness, bearing adjustment and seal installation
in our facilities, we can offer premium performance
and an extended-service warranty on these wheel-end
assemblies�
The eld serviceable HXL5 wheel-end features
Hendrickson authorized components:
• Ductile iron, aluminum or Dura-Light Hub
®
and
premium seal�
• Synthetic semi-uid grease (Chevron Delo
®
Synthetic Grease SF)�
• Hendrickson’s PRECISION 240
®
Nut System (on
HN spindle) or PRECISION320
®
Nut System (on HP
spindle)�
DO NOT remove the hubcap or attempt any kind of eld
service without rst CONTACTING HENDRICKSON Trailer
Technical Services� Wheel-end repairs performed
prior to contacting Hendrickson Technical Services
voids the warranty. Refer to L583 for details.
NOTE: Hendrickson recommends HP spindle type for
offset super single tire applications� Refer to
Hendrickson literature number L846 Wide Base
Tire Congurations for more details� The HN
spindle design is not approved for use with any
offset single wheel�
HN spindle
HP spindle
Outer bearing
PRECISION240 or
PRECISION320 interlock washer
PRECISION240
®
or
PRECISION320
®
spindle nut
HXL5
®
hub:
Aluminum,
Ductile iron or
Dura-Light Hub
®
Lock washer
retaining screws
(Button-head cap screws)
Inner bearing
Hub seal
Hubcap gasket
Hubcap
Lube ll port

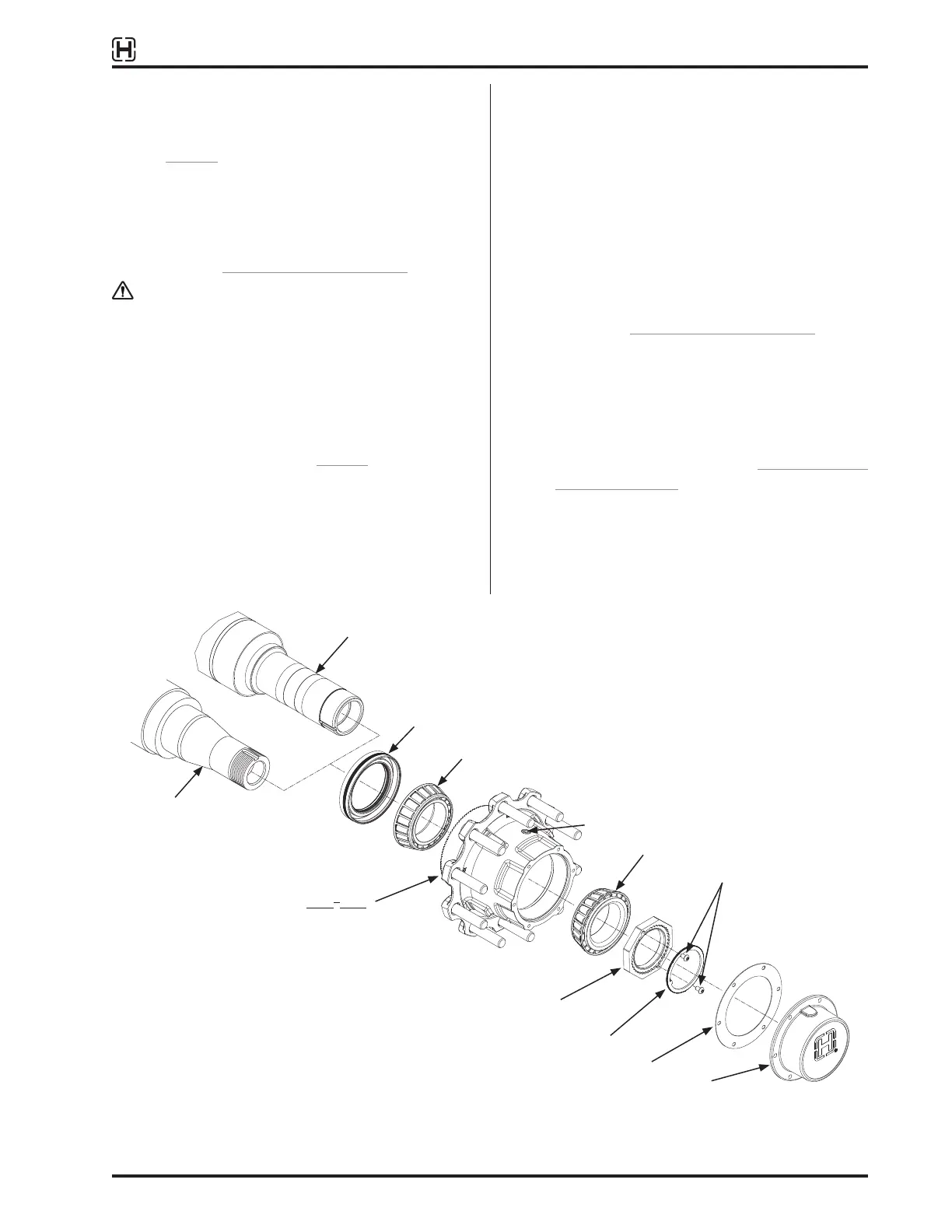

Figure 1: HXL5
®
Hendrickson Extended-Life 5-year System™ wheel-end parts identication
