Heraeus Heracast iQ - Repair and Maintenance Procedures; Exchanging the Pump Oil

34
13 Repair / Maintenance work
CAUTION!
The following work includes interventions into the unit and may only be performed by adequately trained
service personnel!
13.1 Exchanging the pump oil
Theunitmustbeswitchedoffandunpluggedbeforellinginorllingupoil!Opentheunit.
Operating instructions Casting Machine - Heracast iQ
38
13 Repair / Maintenance work
CAUTION!
The following work includes interventions into the unit and may only be performed by adequately trained
service personnel!
13.1 Exchanging the pump oil
The unit must be switched off and unplugged before filling in or filling up oil! Open the unit.
■ Place paper towel underneath the pump head to absorb leaking oil.
■ Loosen oil discharge screw (B) using an Allan key.
■ Hold cup under the oil discharge opening, empty the pump.
■ Tighten the oil discharge screw.
■ Loosen the oil filling screw (A) using an Allan key.
■ Fill in the required quantity (max. 60 ml), tighten the screw.
■ Check oil level in the viewing glass (C).

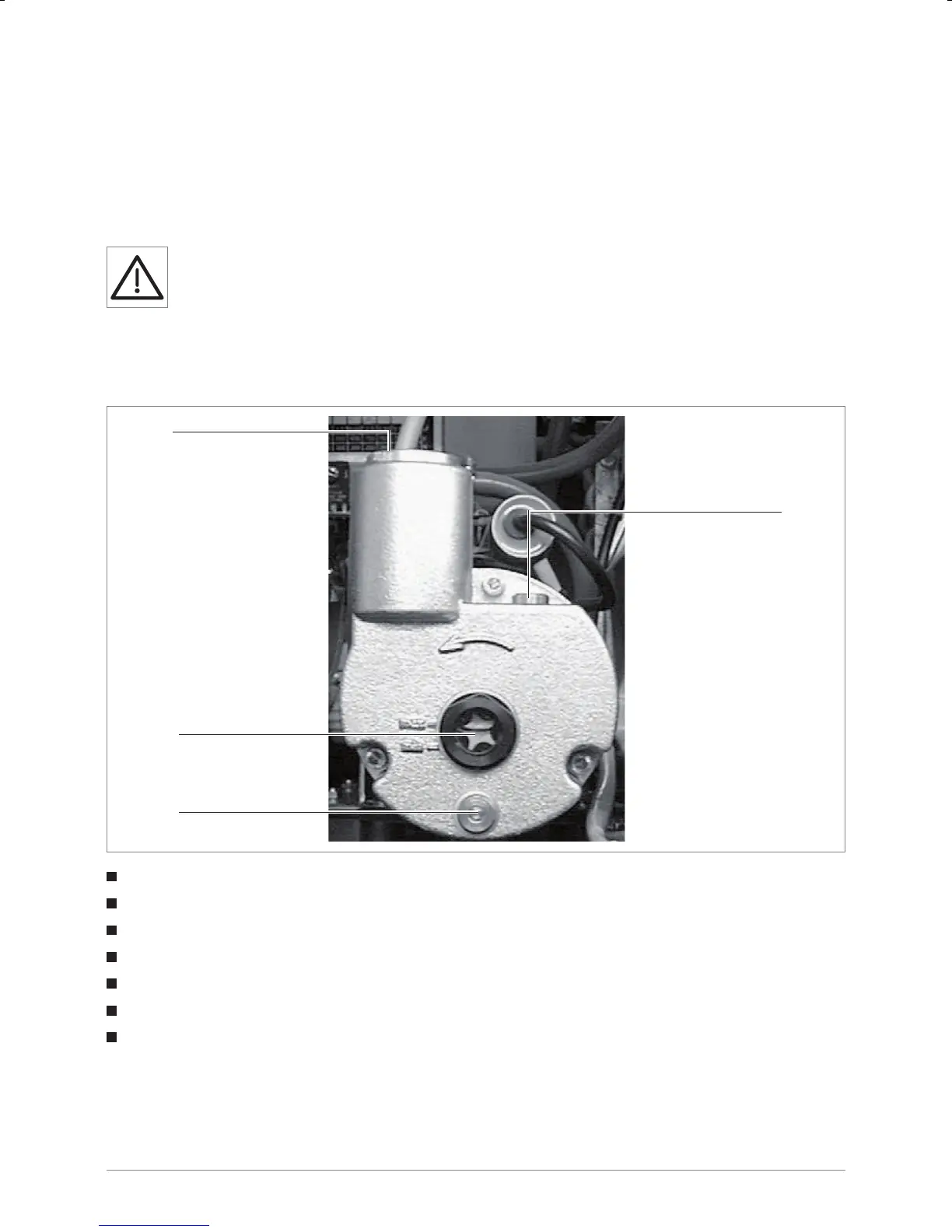

Fig.: 11 CL-P pump type 7
C
B
A
F
Place paper towel underneath the pump head to absorb leaking oil.
Loosen oil discharge screw (B) using an Allan key.
Hold cup under the oil discharge opening, empty the pump.
Tighten the oil discharge screw.
 Loosentheoilllingscrew(A)usinganAllankey.
Fill in the required quantity (max. 60 ml), tighten the screw.
Check oil level in the viewing glass (C).
