4.8 Support stand
Installation of the support stand:
NOTE - Safety precautions:
Observe the safety instructions!
Check decontamination of the unit!
1. Assemble the support stand. Secure the side
elements [2] to the cross-strut [3] using the four
screws [1].
2. Place the sealing rings [4] on the locating pins [6].
3. Place the safety cabinet onto the support stand.
The locating pins [6] must be positioned exactly in
the individual holes of the housing.
4. Position the angle bracket [7] at the support stand
side elements and secure the housing with the
support stand using the screws.
5. Adjust the safety cabinet horizontally by loosen-
ing/tightening the four adjustment screws [5].
NOTE - Unit commissioning:
Prior to the commissioning of the unit:
Perform test run!
Check safety devices for proper opera-
tion!
4. Replacement of defined spare parts

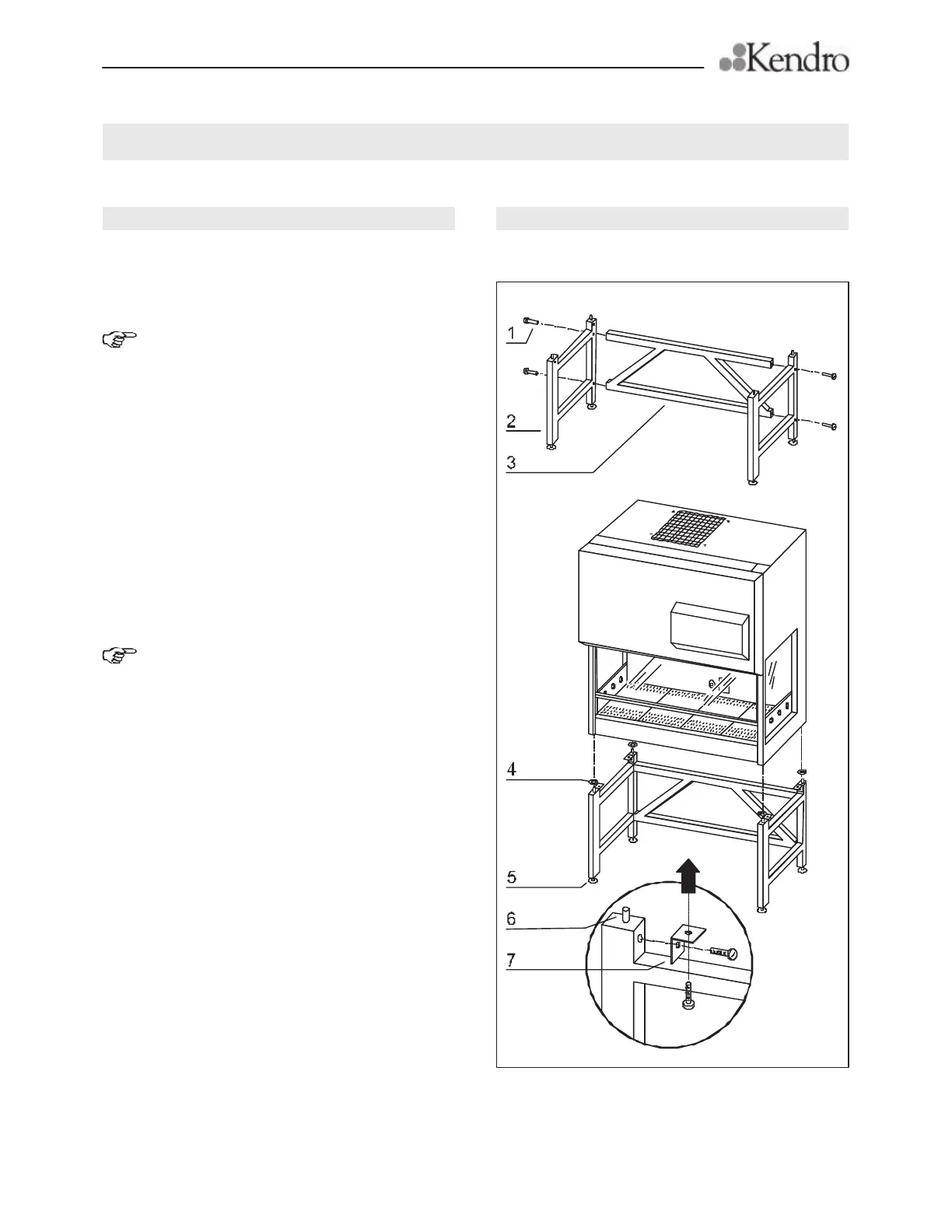

Figure 13
Fig. 13, Installation of the support stand
