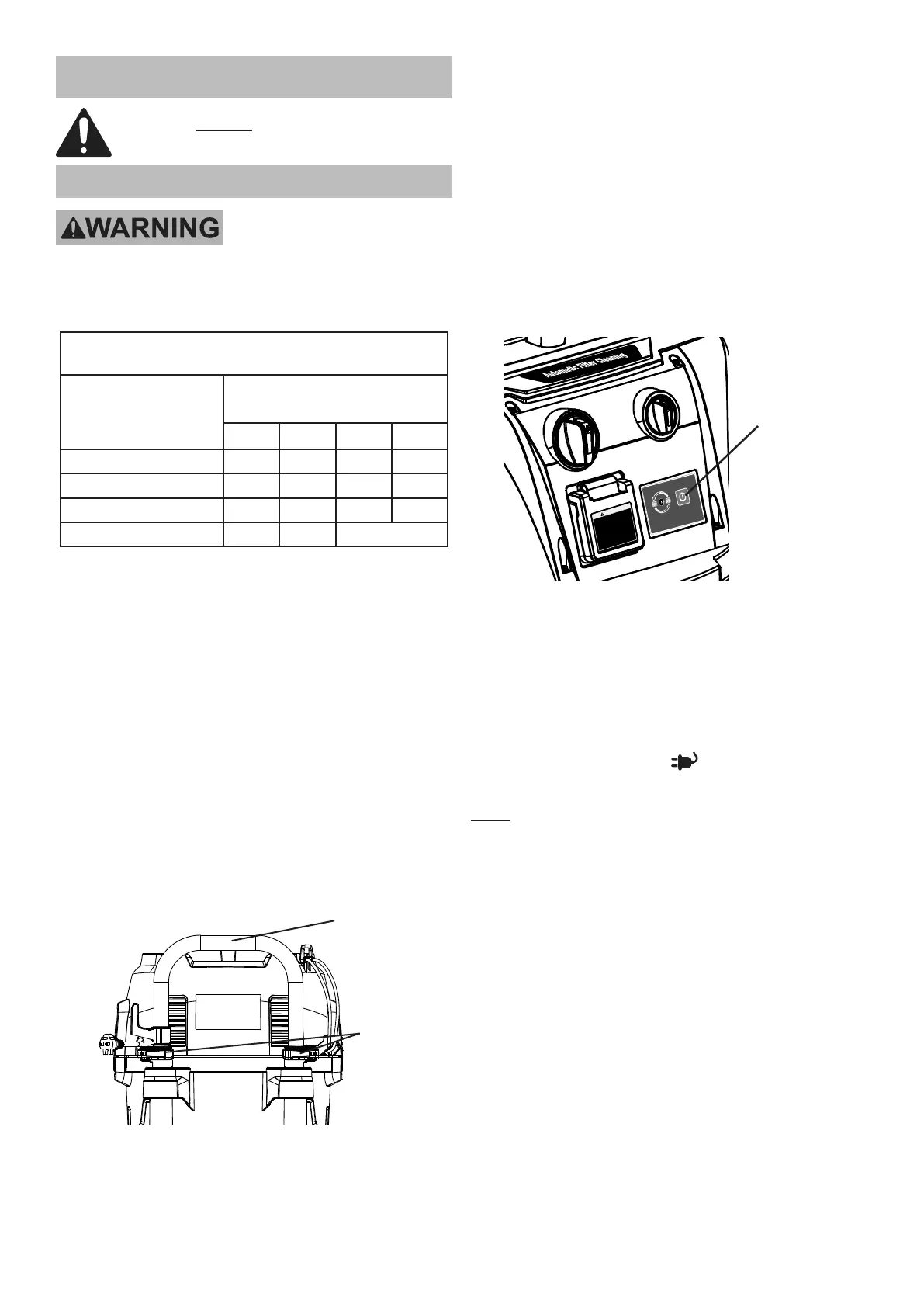

Page 6 For technical questions, please call 1-888-866-5797. Item 58966
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Vacuum Operation
TO PREVENT SERIOUS INJURY FROM
ACCIDENTAL OPERATION:
Turn the Switch off and unplug the power cord from
its electrical outlet before removing the Power Head.
Table A: RECOMMENDED MINIMUM WIRE GAUGE
FOR EXTENSION CORDS (120 VOLT)
NAMEPLATE
AMPERES
(at full load)
EXTENSION CORD
LENGTH
25′ 50′ 100′ 150′
0 – 6 18 16 16 14
6.1 – 10 18 16 14 12
10.1 – 12 16 16 14 12
12.1 – 16 14 12 Do not use.
1. USE PROPER EXTENSION CORD.
Make sure your extension cord is in good
condition. When using an extension cord, be
sure to use one heavy enough to carry the
current your product will draw. An undersized
cord will cause a drop in line voltage resulting in
loss of power and overheating. Table A shows
the correct size to use depending on cord
length and nameplate ampere rating.
If in doubt, use the next heavier gauge.
The smaller the gauge number, the heavier the cord.
2. Turn Power Switch OFF.
Plug Power Cord into grounded
120VAC electrical outlet.
3. Open Quick Clips, adjust Handle,
then close Quick Clips.
Quick
Clip
Handle
4. Lock Swivel Casters.
5. Hold the Hose securely. Turn Power Switch ON.
6. To extend life of HEPA Filters, turn on
Automatic Cleaning. There will be intermittent
pulsing as dust particles are distributed to bottom
of tank. When vacuum function decreases, clean
and replace HEPA Filters and replace Dust Bag.
1. Risk of fire. Do not
exceed 15 Amps.
2. Risk of injury. When
appliances connected to
this receptacle are turned
on, the Dust Extractor will
turn on automatically.
23k
AUTOMATIC FILTER CLEANING
Automatic
Cleaning
Button
7. Adjust Suction Control Knob as needed.
8. CONNECT POWER TOOL:
a. Turn Power Switch OFF.
b. Connect Tool’s hose to Dust Extractor.
c. Plug power tool into 120VAC
Outlet on Dust Extractor.
d. Turn Power Switch to position. Turn
on power tool to start Dust Collector.
Note: The Vacuum will start after power
tool is turned on and will remain on 15-30
seconds after power tool is turned off.
e. When finished, turn Power Switch OFF.
Unplug power tool and Dust Extractor.
