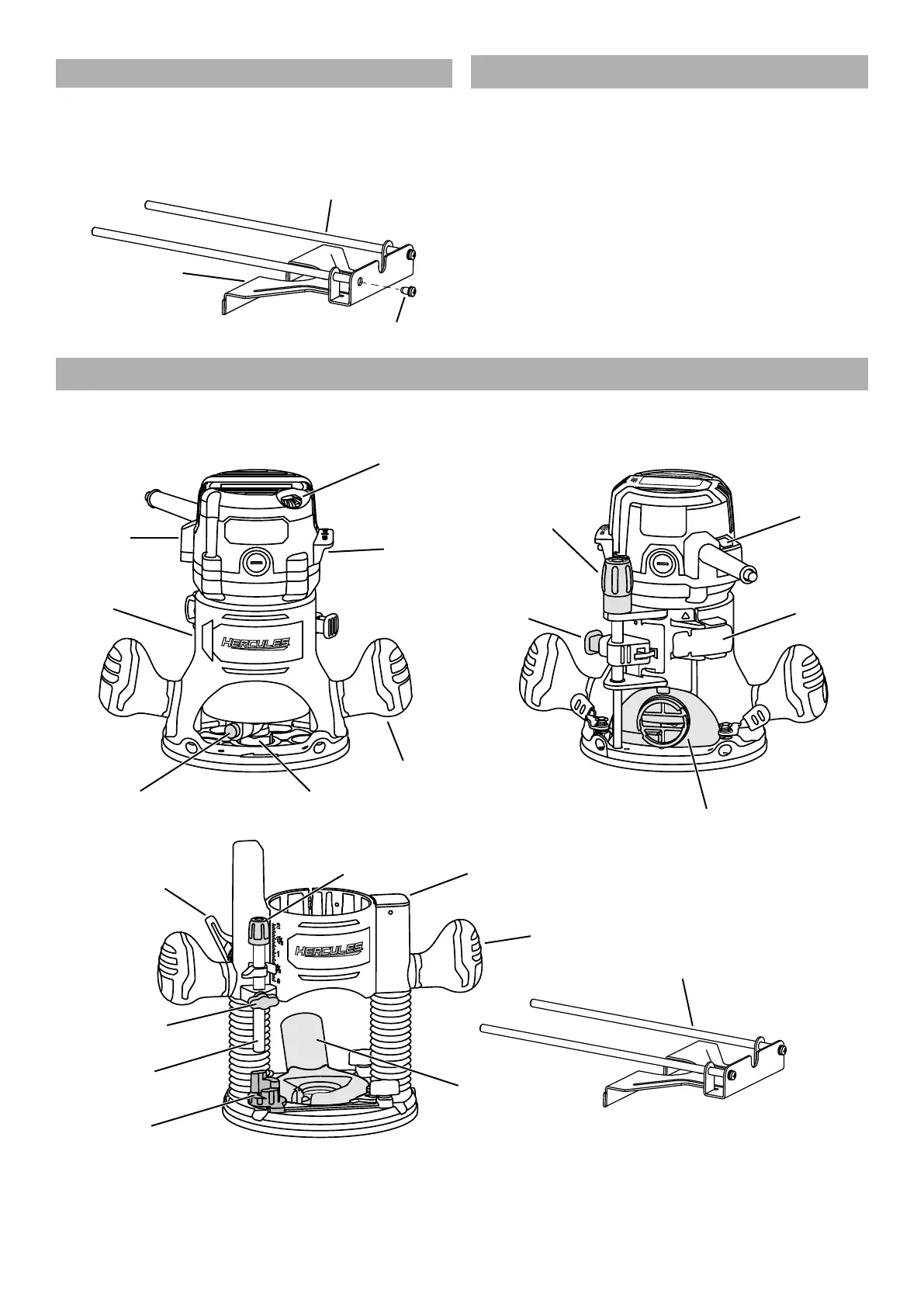

Edge Guide Assembly
1. Insert two Edge Guide Rods into the
holes on the Edge Guide.
2. Secure the Edge Guide Rods in place
using two screws (included).
Edge Guide Rod
Edge Guide
Screw
Work Area
1. Designate a work area that is clean and well lit.
The work area must not allow access by children
or pets to prevent distraction and injury.
2. There must not be objects, such as utility lines,
nearby that will present a hazard while working.
3. Route the power cord along a safe route to reach
the work area without creating a tripping hazard or
exposing the power cord to possible damage. The
power cord must reach the work area with enough
extra length to allow free movement while working.
Functions
Power
Switch
Collet
Assembly
Edge Guide
Motor
Housing
Motor
Housing
Clamp
Dust
Extraction
Adaptor
Speed Control
Dial
Depth
Stop Turret
Depth
Stop Rod
Depth Stop
Lock Knob
Depth
Adjustment
Button
Micro-Fine
Depth
Adjustment
Knob
Micro Depth
Adjustment Knob
Spindle
Lock
Handle
Handle
Fixed
Base
Plunge
Base
Plunge Depth
Lock Lever
Indicator
Light
Dust Port
