Page 9For technical questions, please call 1-888-866-5797.Item 57368

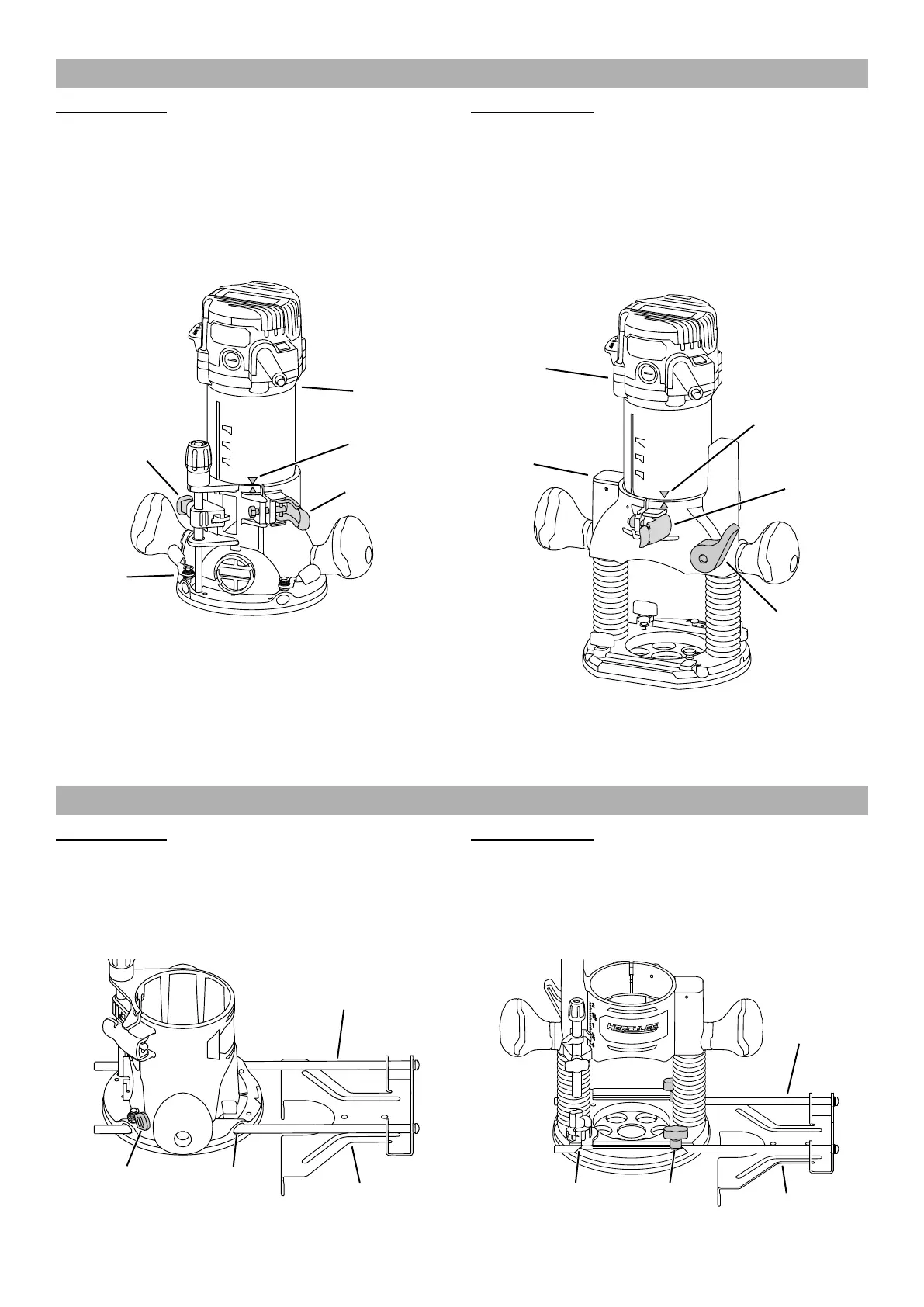

Installing the Motor Housing
For Fixed Base
1. Place the Fixed Base on a flat surface
with the back of the Base facing you and
open the Motor Housing Clamp.
2. Press the Depth Adjustment Button and
align the arrow on the Motor Housing
with the arrow on the Fixed Base.
3. Slide the Housing down into the Fixed Base.
Motor Housing
Clamp
Depth
Adjustment
Button
Arrow
Fixed
Base
Motor
Housing
4. The Motor Housing will now slide up or down when
the Depth Adjustment Button is pressed in.
5. After all adjustments are made, close
the Motor Housing Clamp securely.
For Plunge Base
1. Place the Plunge Base on a flat surface
with the back of the Base facing you and
open the Motor Housing Clamp.
2. Make sure that the plunge action is in the “DOWN”
position with the Plunge Depth Lock Lever locked.
3. Align the arrow on the Motor Housing
with the arrow on the Plunge Base and
lower the Housing into the Base.
Motor
Housing
Clamp
Arrow
Motor
Housing
Plunge
Depth Lock
Lever
Plunge
Base
4. Slide the Motor Housing into the
Plunge Base as far as it will go.
5. Close the Motor Housing Clamp securely.
Edge Guide Installation
For Fixed Base
1. Insert the Edge Guide rods into the mounting
slots on the Fixed Base from the left or right side.
Adjust the Edge Guide to the desired position.
2. Secure the Edge Guide by turning the two Quick
Release Levers toward the tool handles.
Slot
Quick Release Quick Release
LeverLever
Edge Guide
Rod
Edge Guide
For Plunge Base
1. Insert the Edge Guide rods into the mounting slots
on the Plunge Base from the left or right side.
Adjust the Edge Guide to the desired position.
2. Tighten the two Lock Knobs to secure
the Edge Guide in place.
Slot
Edge
Guide
Rod
Edge Guide
Lock Knob
To Next Page
