Page 6 For technical questions, please call 1-888-866-5797. Item 56407
OPERATION
Read the ENTIRE IMPORTANT SAFETY
INFORMATION section at the beginning
of this manual including all text under
subheadings therein before set up or use of
this product.

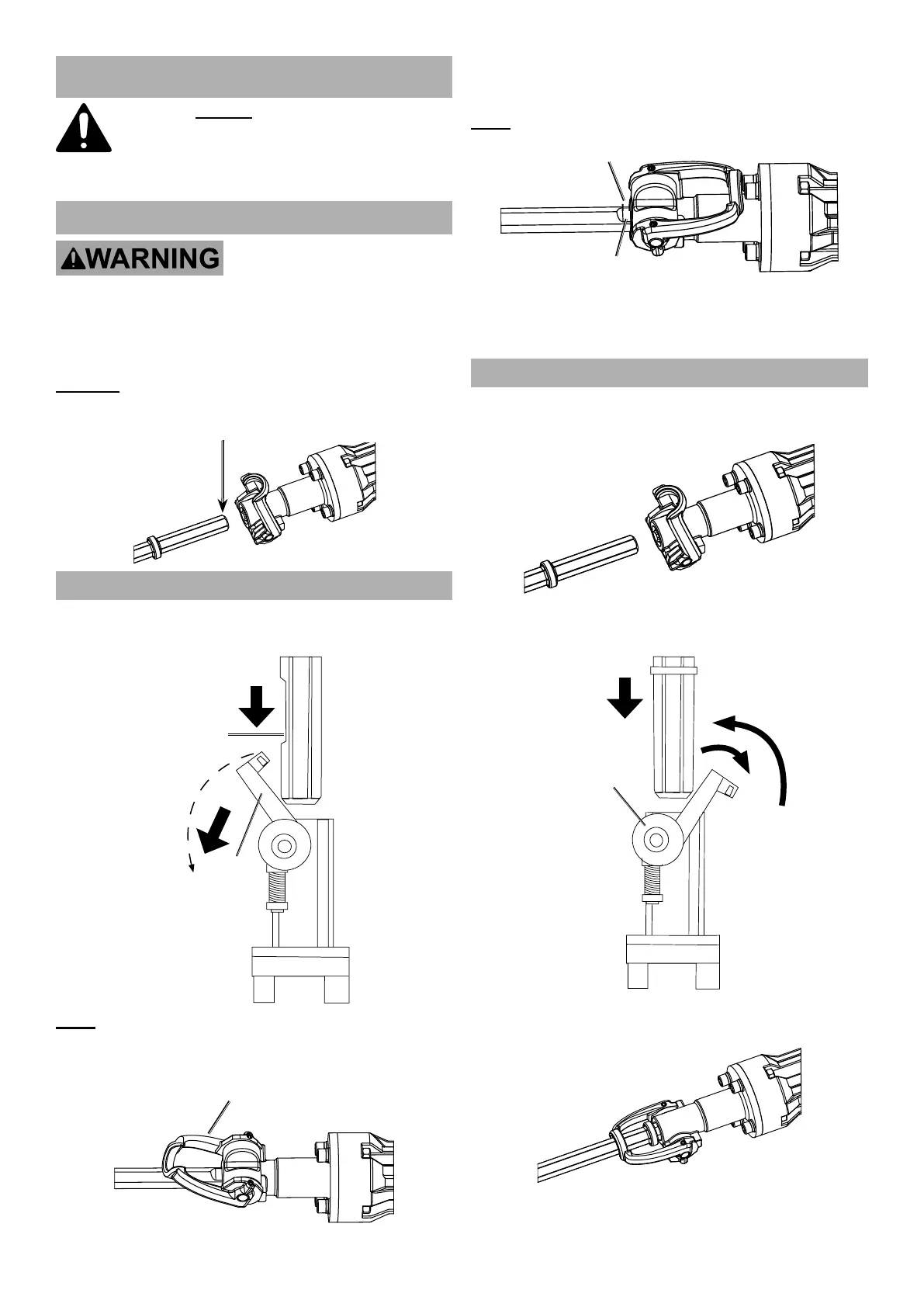

Tool Set Up
TO PREVENT SERIOUS INJURY FROM
ACCIDENTAL OPERATION:
Make sure that the Trigger is in the off-position and
unplug the tool from its electrical outlet before
performing any procedure in this section.
NOTICE: Clean the loading end of the bit to remove
any debris, then lubricate the bit with grease.
Clean bit, then lubricate with grease.
Install Collarless Bit
1. Pull the Lock Lever to the side, just far
enough to allow the Bit to be inserted.
Flat
Notch
2
1
Lock
Lever
Note: Flat Notch on Collar-less Bit
must face the Lock Lever.
2. Insert Bit with the Flat Notch facing the Lock Lever.
Lock Lever
3. Slide the Bit in as far as it will go.
4. Pull the Lock Lever back until it
locks the Bit into place.
Note: Lock Lever will not lie flat against the chuck.
Flat Notch
Play
5. When the Bit is installed, there will be
approximately 1-3/4″ of play along the Flat
Notch of the shank. Physically check that
the Bit is secure before operating.
Install Collared Bit
1. Pull the Lock Lever open about 70-80°
to the second engaging position.
2. Insert the collared Bit.
3. Slide the Bit in as far as it will go.
1
2
Retaining
Ring
3
4. Return the Lock Lever to its original
position to lock the Bit in place.
To Next Page
