Hercules HE34 User Manual

Page 7)RUWHFKQLFDOTXHVWLRQVSOHDVHFDOOItem 56844

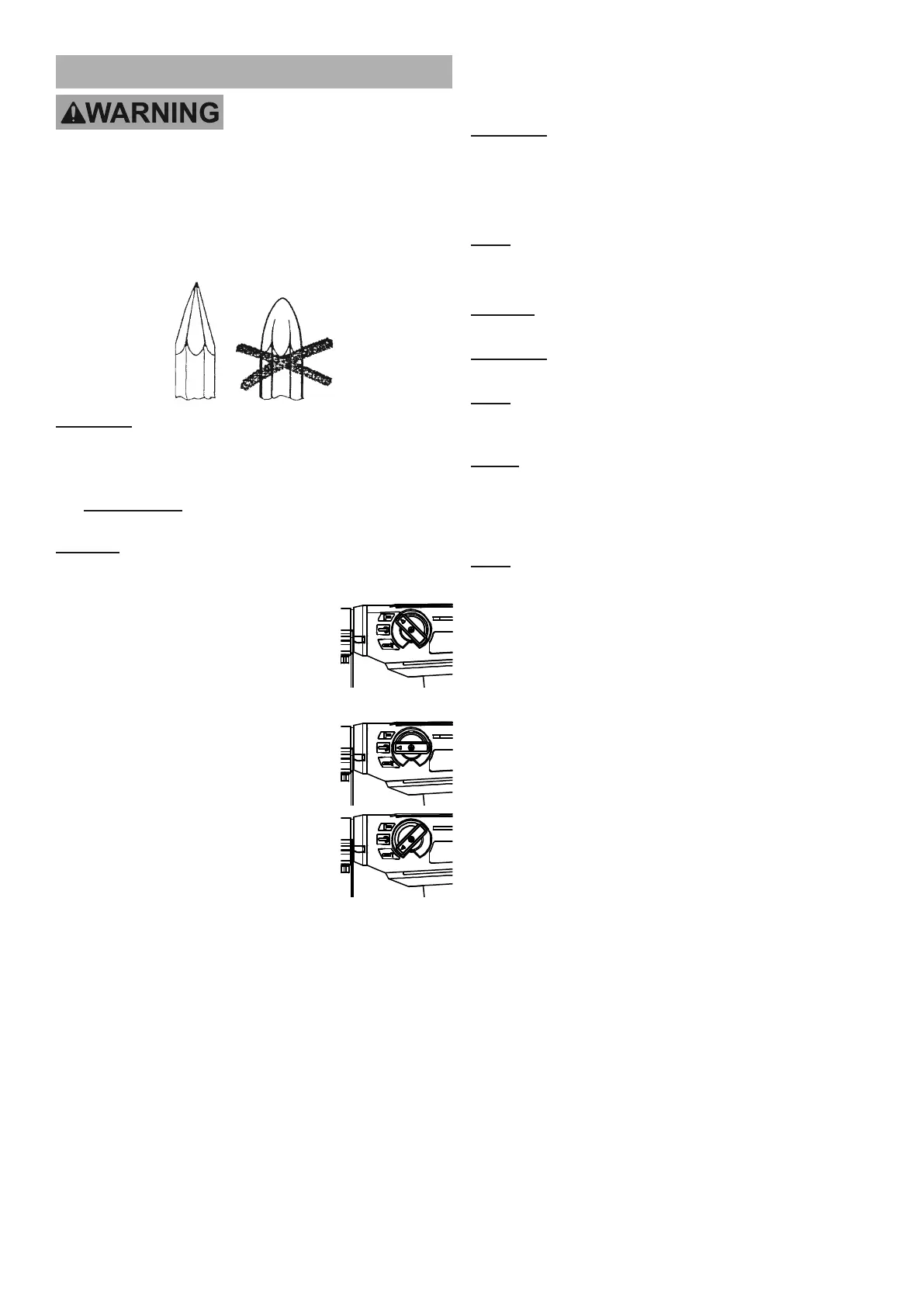

General Operation
7235(9(176(5,286,1-85<
:HDU$16,DSSURYHGVDIHW\JRJJOHVHDUSURWHFWLRQ
VWHHOWRHERRWVDQGGXVWPDVNGXULQJXVH
.HHSIHHWFOHDURI5RWDU\+DPPHU
.HHSFKLOGUHQDQGDQLPDOVZHOO
FOHDURIWKHZRUNDUHD
1. Check Bit for dullness, cracks, or other damage.
&$87,21 Dull tipped bits can cause unnecessary
bit movement, resulting in tool wear and
possible injury. Use only sharp tipped bits.
2. Clearly mark the work area.
3. 0RGH.QRE - Set the Mode Knob to the
required mode before using the tool.
127,&( TO PREVENT DAMAGE, do not change the
Mode Knob while the tool is in operation. Make sure the
Mode Knob is entirely in the desired position before use.
a. +DPPHU0RGH
(top position)
The Bit will not rotate, but it will
impact forwards and backwards.
Do not use this mode
with spiral bits.
b. 'ULOO0RGH
(middle position)
The Bit will rotate only.
It will not impact.
c. +DPPHU'ULOO0RGH
(bottom position)
The Bit will simultaneously
rotate and impact.
4. Make sure that the Trigger is in
the off-position, then plug the tool in.
5. Set the bit against the work area.
&$87,21 Keep power cord away
from moving machines.
6. Place one hand on the Front Handle and
the other hand around the Handle.
7. Press the upper part of the Trigger to start the tool.
1RWH Trigger will lock on. Press the lower
part of the Trigger to turn the tool off.
8. Push the tip forcibly down to begin striking material.
127,&( Running tool with no load or
“empty blows” will damage the Rotary Hammer.
&$87,21 Once activated, do not bear down,
or thrust forcibly against the work surface.
1RWH If the Rotary Hammer has not been used for
a long time or is being used in low temperatures,
the tool may require 3-5 minutes to warm up.
127( Carbon Brushes will wear during use.
7KH&DUERQ%UXVK,QGLFDWRUZLOOOLJKWLIWKH
%UXVKHVDUHZRUQ If the Carbon Brush Indicator
lights, the worn Brushes will need to be replaced with
the included Brushes by a qualified technician.
1RWH During extended operation, periodically remove
the bit and re-lubricate the loading end with grease.
9. If a different speed setting is needed, press
the lower part of the Trigger, allow the tool
to stop, and adjust the Speed Knob.
10. When work is complete, press the lower
part of the Trigger to turn the tool off.
11. To prevent accidents, turn off the tool and
disconnect its power supply after use.
12. Clean, then store the tool indoors
out of children’s reach.

Hercules HE34 Specifications

General

Brand	Hercules
Model	HE34
Category	Rotary Hammer
Language	English
