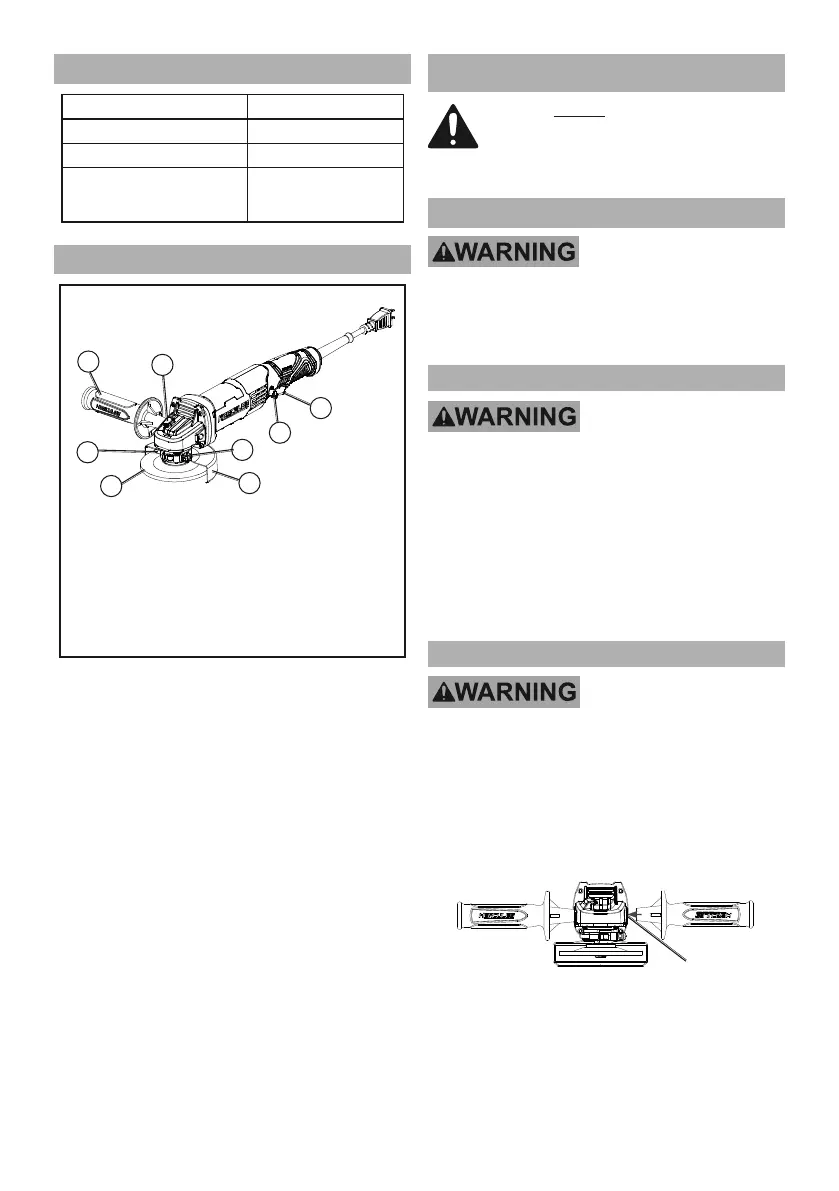

Specifications
Electrical Rating 120 VAC / 60 Hz / 13A
No Load Speed 10,000/min
Spindle Thread 5/8"- 11 TPI
Accessory (Wheel Guards)
Diameters
4-1/2" (115mm)
5" (125mm)
6" (150mm)
Functional Description
2
1
2
3
4
5
6
7
8
1. Side Handle
2. Spindle Lock
3. Trigger
4. Trigger Lock
5. Wheel Guard
6. Wheel Guard Bolt
7. Wheel Guard Lock Lever
8. Grinding Wheel (sold separately)
OPERATION
Read the ENTIRE IMPORTANT
SAFETY INFORMATION section at the
beginning of this manual including
all text under subheadings therein
before set up or use of this product.
Tool Set Up
TO PREVENT SERIOUS INJURY FROM
ACCIDENTAL OPERATION:
Make sure that the Trigger is in the OFF position and
unplug the tool from its electrical outlet before
performing any procedure in this section.
Adjusting the Wheel Guard
TO PREVENT SERIOUS INJURY:
Do not operate this tool without the
Wheel Guard properly installed.
1. Pull out the Wheel Guard Lock Lever.
2. Rotate the Wheel Guard as needed to
shield you during the planned work.
3. Push the Wheel Guard Lock Lever back
into place to secure the Wheel Guard.
4. Check the Wheel Guard to ensure it is firmly in place.
Adjust if necessary before proceeding.
Installing Auxiliary Side Handle
TO PREVENT SERIOUS INJURY:
Do not operate this tool with one hand only or
without the Side Handle properly installed.
1. The Side Handle may be installed in one of two
positions, on either side of the Gear Housing.
2. Screw the threaded end of the Side Handle
clockwise into the selected position.
Tighten securely before beginning work.
Side
Handle
Side Handle
Socket
