Page 8 For technical questions, please call 1-888-866-5797. Item 57363
Specifications
Electrical Rating 120 VAC / 60 Hz / 15A
Rated Speed 6500/min
Spindle Thread 5/8"- 11 TPI
Accessory (Wheel Guards)
Diameters
7" (180mm)
9" (230mm)

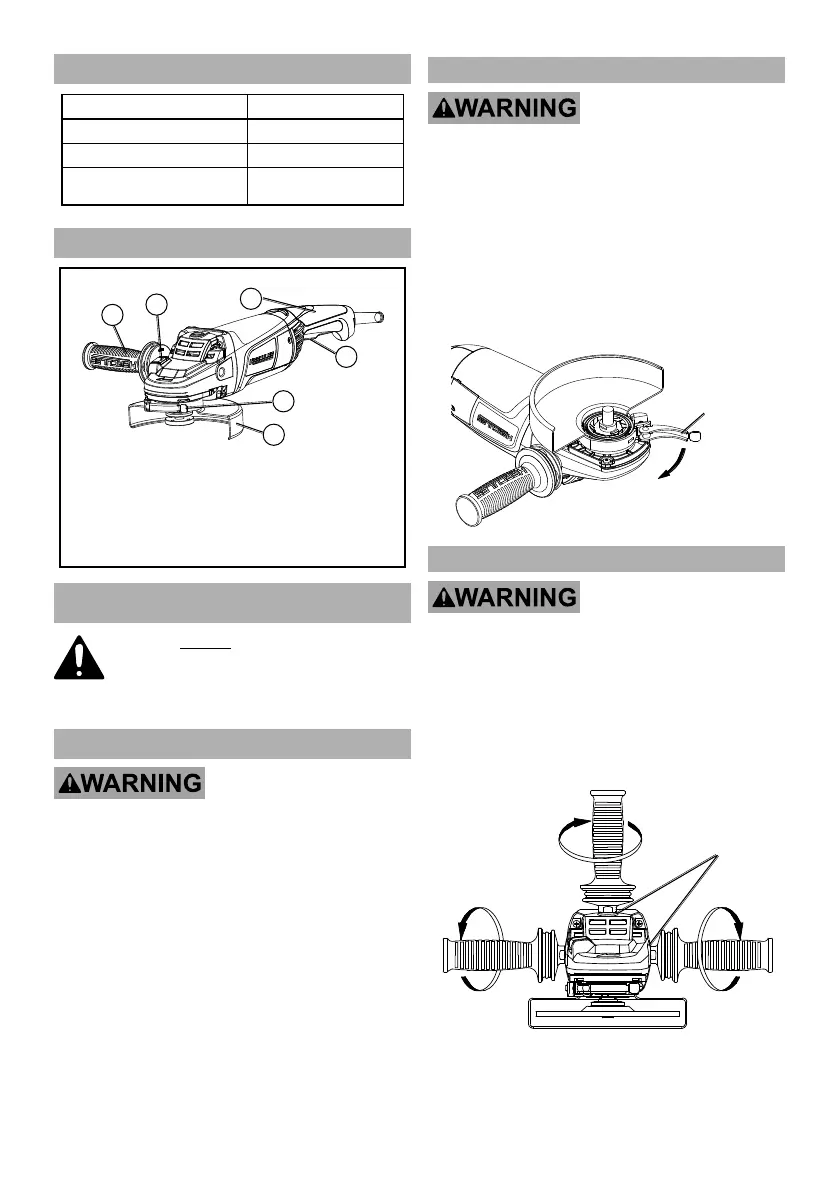

Functional Description
1
2
3
4
5
6
1. Auxiliary Handle
2. Spindle Lock
3. Trigger
4. Wheel Guard
5. Wheel Guard Lock Lever
6. Handle
OPERATION
Read the ENTIRE IMPORTANT
SAFETY INFORMATION section at the
beginning of this manual including
all text under subheadings therein
before set up or use of this product.
Tool Set Up
TO PREVENT SERIOUS INJURY FROM
ACCIDENTAL OPERATION:
Make sure that the Trigger is in the OFF position and
unplug the tool from its electrical outlet before
performing any procedure in this section.
Adjusting the Wheel Guard
TO PREVENT SERIOUS INJURY:
Do not operate this tool without the
Wheel Guard properly installed.
1. Pull out the Wheel Guard Lock Lever.
2. Rotate the Wheel Guard as needed to
shield you during the planned work.
3. Push the Wheel Guard Lock Lever back
into place to secure the Wheel Guard.
4. Check the Wheel Guard to ensure it is firmly in place.
Adjust if necessary before proceeding.
Wheel Guard
Lock Lever
Installing Auxiliary Side Handle
TO PREVENT SERIOUS INJURY:
Do not operate this tool with one hand only or
without the Auxiliary Handle properly installed.
1. The Auxiliary Handle may be installed in one of three
positions, on top or either side of the Gear Housing.
2. Screw the threaded end of the Auxiliary Handle
clockwise into the selected position.
Tighten securely before beginning work.
Auxiliary
Handle
Handle
Socket
