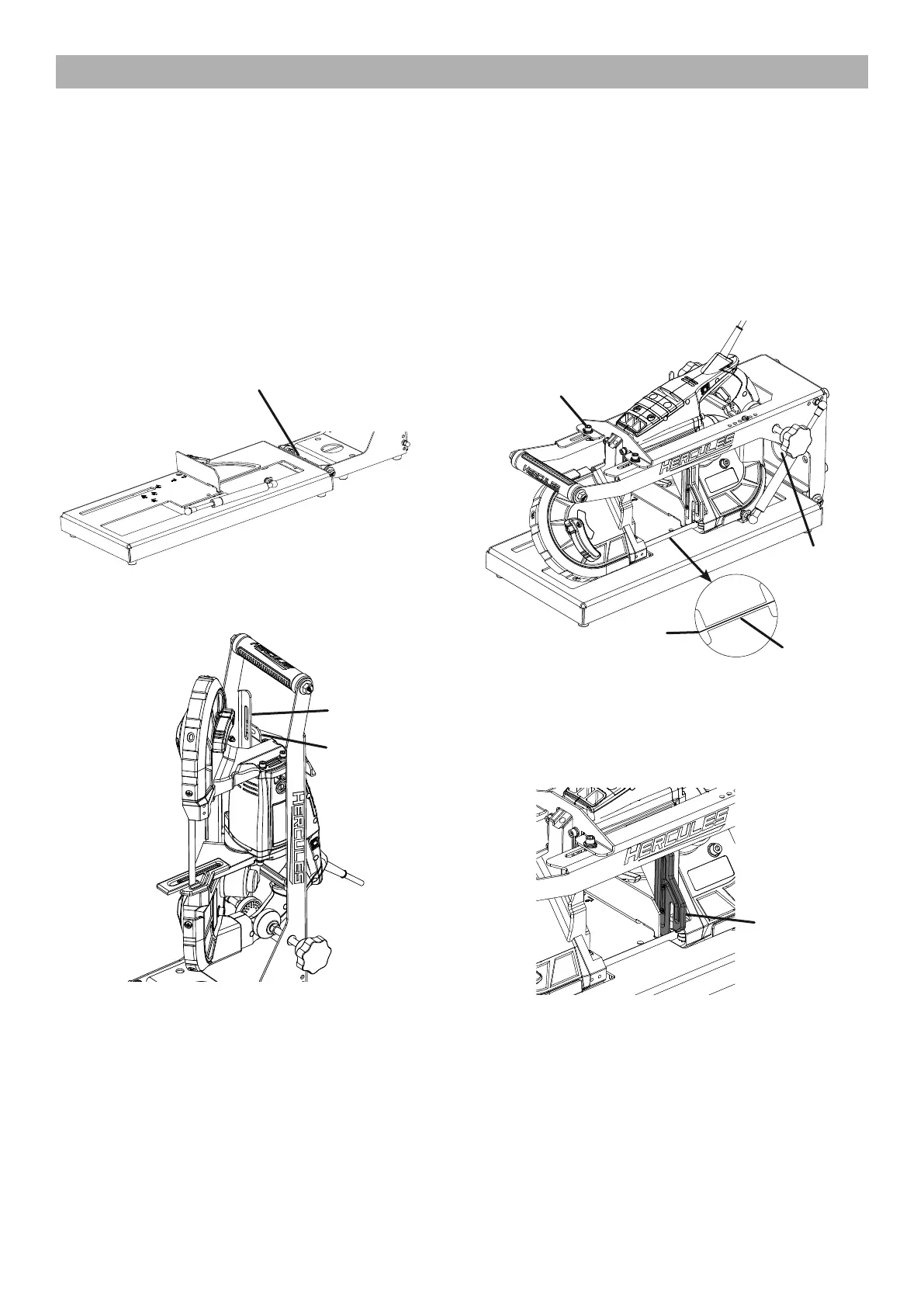

Attaching Band Saw To Stand
WARNING! TO PREVENT SERIOUS INJURY: Band saw blade is sharp.
Wear heavy-duty work gloves while attaching band saw.
1. Remove Chain from Arm.
2. Using quick release, remove Gas Strut from Arm.
3. Lift Arm to upright position.
4. Loosen Adjustment Knobs.
5. Check level between Base and Arm. If necessary,
loosen three Bolts between Base and Arm,
level Stand, then tighten Bolts securely.
Adjustment
Bolts
6. Slide band saw up and into Stand with
Brackets on outside of Bracket Support.
Bracket
Bracket
Support
7. Route power cord through Power Cord Hole.
8. Lower Arm slowly, adjusting band saw so
that blade fits inside Blade Channel.
9. Attach Gas Strut and Chain.
10. Attach Brackets with Bolts, Spring Washers,
Flat Washers and Nuts (42), finger tighten.
Blade
Channel
Blade
Bolt, Washer,
Spring Washer,
Nut (42)
Power
Cord Hole
11. Move band saw forward until Guide Bar
is as close as possible to edge of Stand
without touching edge when lifting Arm.
12. Tighten Adjustment Knobs securely.
Guide
Bar
13. Adjust back of band saw by loosening or tightening
Adjustment Knobs until Blade is centered in Channel.
14. Adjust front of band saw side to side
until blade is centered in Channel.
15. Securely tighten hardware on Bracket to Stand, then
securely tighten hardware on Bracket to band saw.
16. Loosen Adjustment Knobs slightly, then adjust
back of band saw so that band saw is parallel
with Arm, tighten Adjustment Knobs securely.
