hergom SERE 70 - 3 - WIRING DIAGRAM; SWITCH POSITIONS

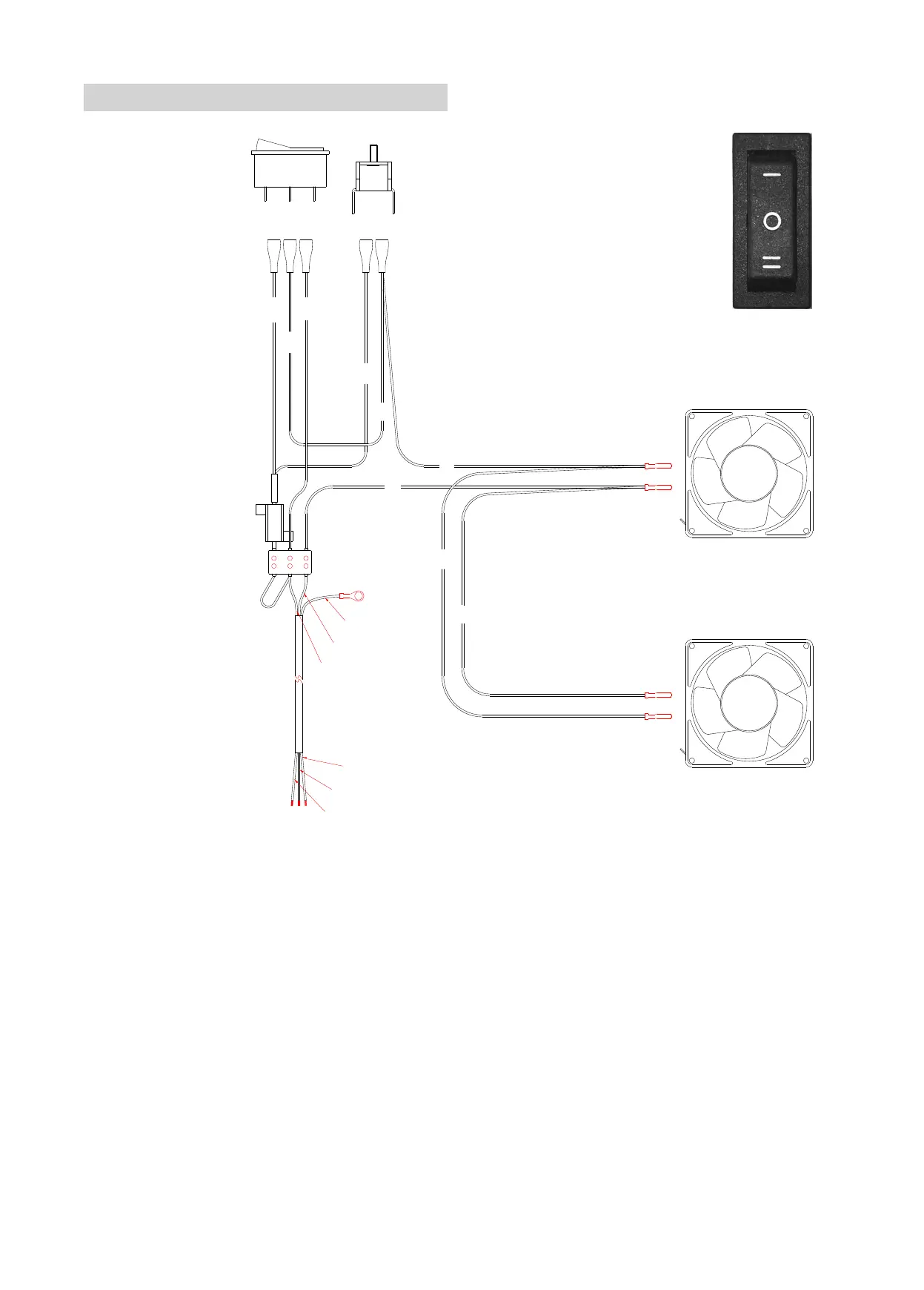

3 - WIRING DIAGRAM
SWITCH POSITIONS
POSITION “0”: the fans start up at MEDIUM SPEED
AUTOMATICALLY when the re is lit and the
temperature reaches 50ºC (in the area where the
thermostat is located). When the ame goes out
and the temperature falls below 50 °C, the fans
stop.
This posion is RECOMMENDED when the user
wants the fans to stop working once the compact
replace has cooled o.
POSITION “1”: the fans start-up at MEDIUM SPEED
MANUALLY. In this posion, the fans do not stop
even if the re goes out and the temperature falls
below 50°C.
I
0
II
R
A
N
V
A
M
A - AZUL / BLUE / BLEU / AZUL
R - ROJO / RED / ROUGE / VERMELHO
V - AMARILLO-VERDE / YELOU-GREEN / JAUNE-VERT / AMARELO-VERDE
N - NEGRO / BLACK / NOIR / PRETO
M - MARRON / BROWN / MARRON / CASTANHO
N
N
V
M
A
N
N
N
N
POSITION “2”: MANUAL start-up of the fans at
FULL SPEED.
In this posion the fans will not stop working even
if the re has gone out and the temperature has
fallen below 50 ºC.
This posion is recommended when a quick
transfer of heat from the replace to the room is
required.
SWITCH
