Reinstall the filter screen with the
sharp edged side facing inwards.
Remove the kick starter pedal (1),
disconnect the clutch cable (2), remove
the muffler (3), remove the rider
footrest (4) and remove the right
crankcase cover (5).
Remove the oil filter screen (6) and
wash it in clean non flammable high
flash point solvent (kerosene).
2
4
1
(1) K i c k S t a r t e r P e d a l ( 2 )
Clutch Cable
(3) Muffler (4) Rider foot rest
(5) Right crankcase cover
(7) Centrifugal filter cover
(8) Centrifugal filter
(6) Oil filter screen
3
5
Reinstall the centrifugal filter cover,
right crankcase cover, kick starter
pedal, rider foot rest and muffler.
Fill the crankcase with clean engine oil
as per specification.
Remove centrifugal filter cover (7) &
clean centrifugal filter (8) with non
flammable high flash point solvent
(kerosene).
8
7
6

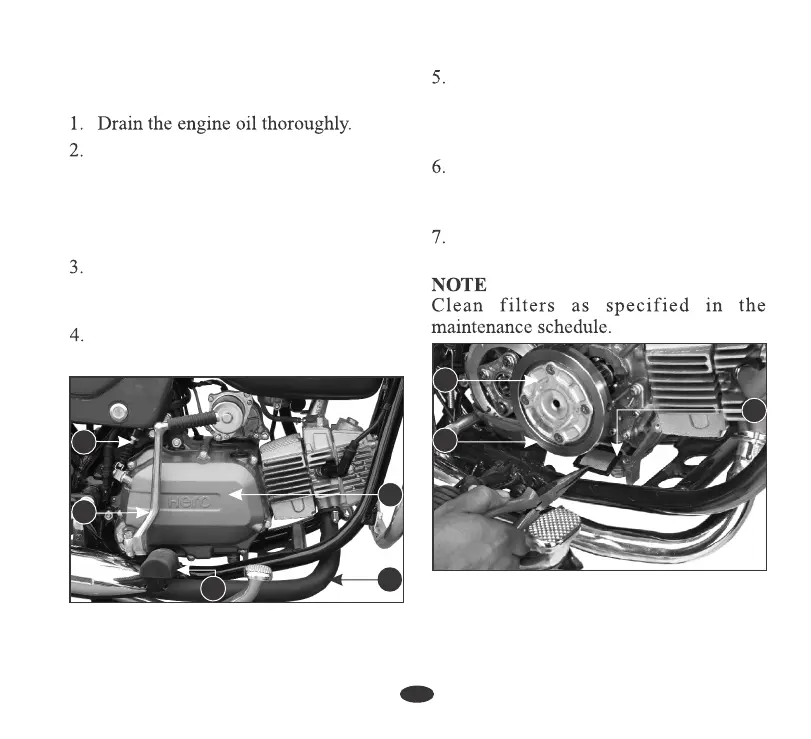

OIL FILTER SCREEN &
CENTRIFUGAL FILTER
