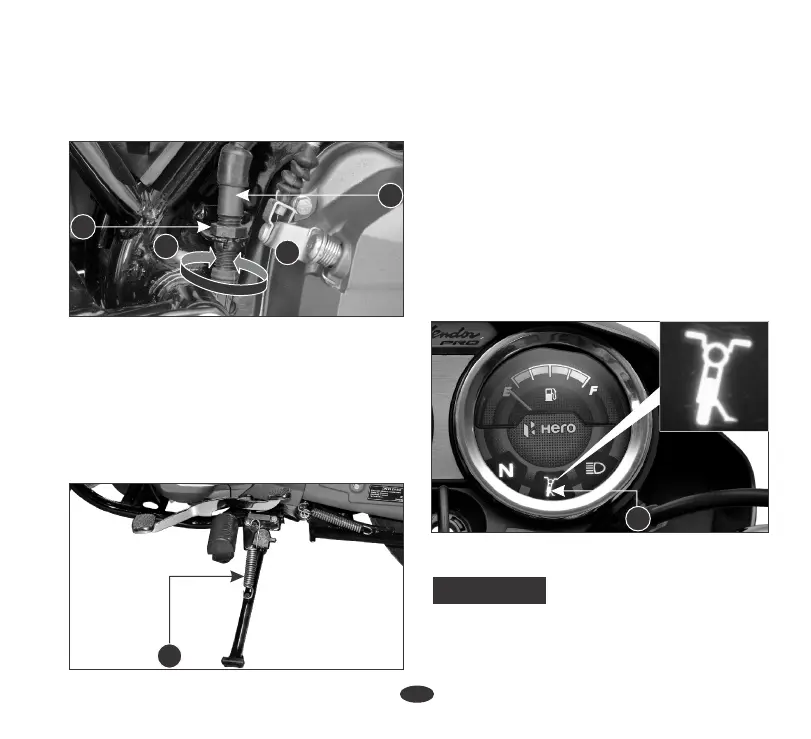

play. Turn the adjusting nut in direction (A)
to advance switch timing or in direction
(B) to retard switch timing.
(1) Stop lamp switch (A) Advance
(2) Adjusting nut (B) Retard
SIDE STAND
Check the side stand for proper function.
1. Check the spring (1) for damage or loss
of tension and the side stand assembly
for free movement.
(1) Side stand spring
2. Check whether the side stand indicator
(2) glows when vehicle is parked on
side stand.
3. While the vehicle is removed from side
stand, the side stand indicator (2)
should not glow.
4. If the side stand indicator (2) does not
operate as described in steps 2 or 3,
please visit your Authorised Hero
MotoCorp workshop.
1
Ensure that adequate care should be taken
while cleaning the side stand switch.
(2) Side stand indicator
2
CAUTION
