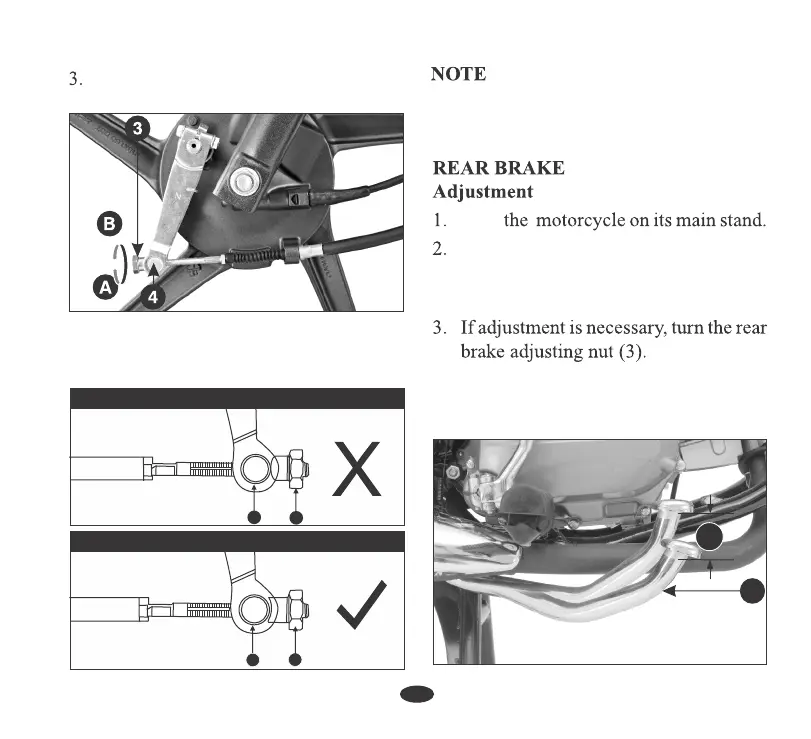

Apply the brake several times and check
for free wheel rotation when released.
Measure the distance of brake pedal (1)
moves before the brake starts to take
hold. Free play (2) should be 20-30 mm.
If proper adjustment cannot be obtained by
this method, visit your Authorized Hero
MotoCorp workshop.
3
4
CUT-OUT NOT SEATED
(3) Adjusting nut (4) Brake joint pin
3
4
CUT-OUT SEATED
(A) Decrease freeplay (Clockwise)
(B) Increase freeplay (Anti-Clockwise)
(3) Adjusting nut (4) Brake joint pin
Park
2
Make sure that the cut-out on the adjusting
nut is seated on the brake joint pin (4) after
the final adjustment has been made.
1
(1) Rear brake pedal (2) Free play 20-30 mm
