CONNECTING THE DRAIN

With the special elbow connected to the tube running to back corner, moisten the

vertical leg and insert it into the drain grommet with rotating motion. Now check

that the drain runs downhill all the way! (fig. 11)

FIT THE FRONT PANEL OF THE CUPBOARD

1. Screw the panel to the cupboard (original fastenings).

2. To fasten the A/H to the front panel, use 4 self tapping screws, 32 long x no 6.

Insert through the front of the panel & pick up the prepunched holes in front of

the A/H. See fig. 12. Screw up until A/H forms a firm seal against the back of

the front panel.

Now return to the Con/set to complete the refrigerant circuit.

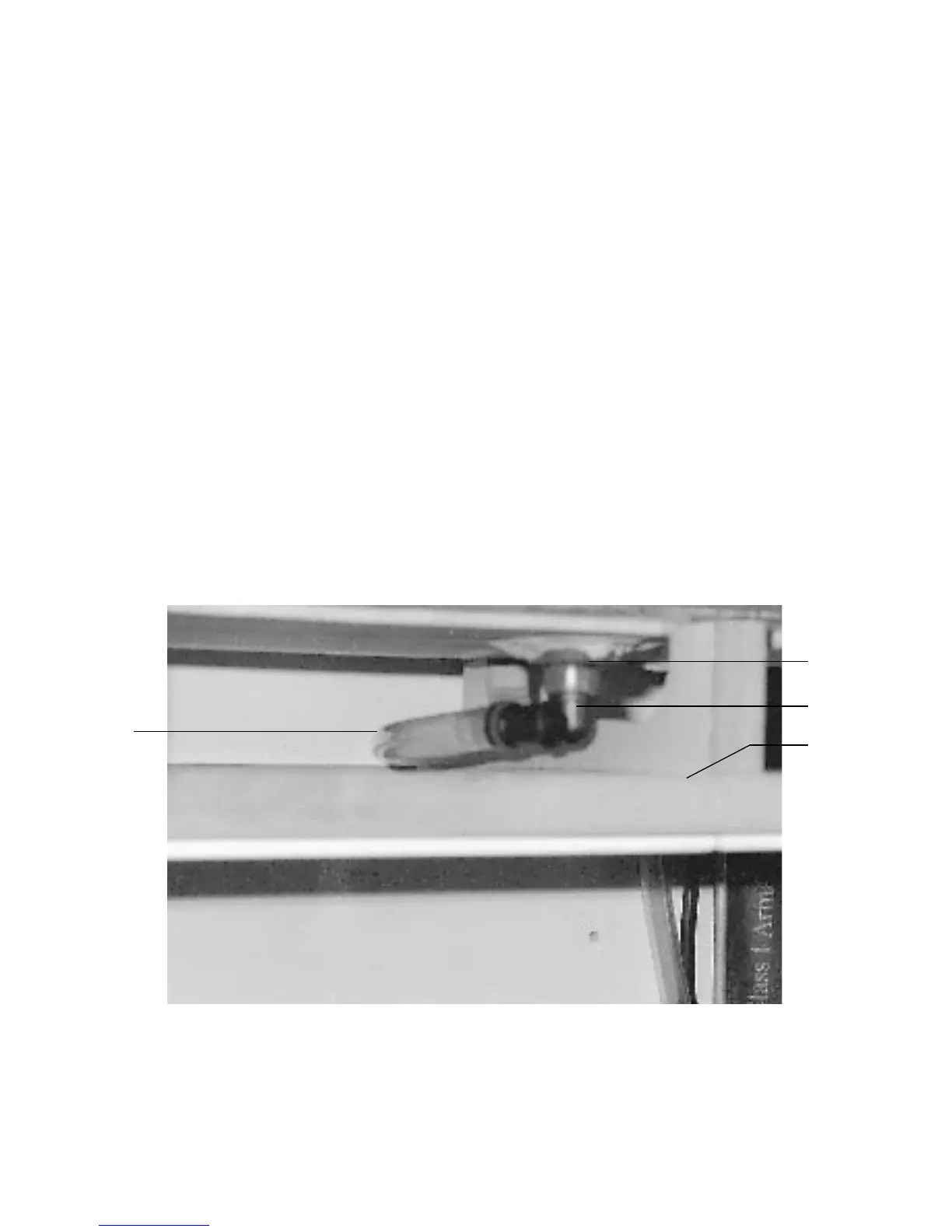

Figure 11

1 DRAIN HOSE TO VERTICAL DRAIN (NOTE - FALLS ALL THE WAY)

2 GROMMET

3 SPECIAL ELBOW

4 FLOOR OF CUPBOARD
