HERON 2.2 - Description of the Heron 2.2 System

AIRHANDLER A/H
FACIA
2
DESCRIPTION OF THE HERON 2.2 SYSTEM
The HERON 2.2 is a split system, utilizing a condenser set (referred to throughout
this text as a CON/SET) and an airhandler (referred to as an A/H).
The Con/set is designed for installation beneath a bunk, settee, or in the bottom of
a floor cupboard. Refer fig. 1 for dimensions.
The A/H is designed for fitment into an overhead cupboard or similar, and comes
complete with facia and controls. See fig. 2.
The A/H and CON/SET are coupled by means of a pair of refrigerant lines, and a
control cable. The pipework is not supplied with the unit, but a standard 5 m
control cable is.
Before proceeding with the installation, consider a number of important details
that must be complied with in the following description.

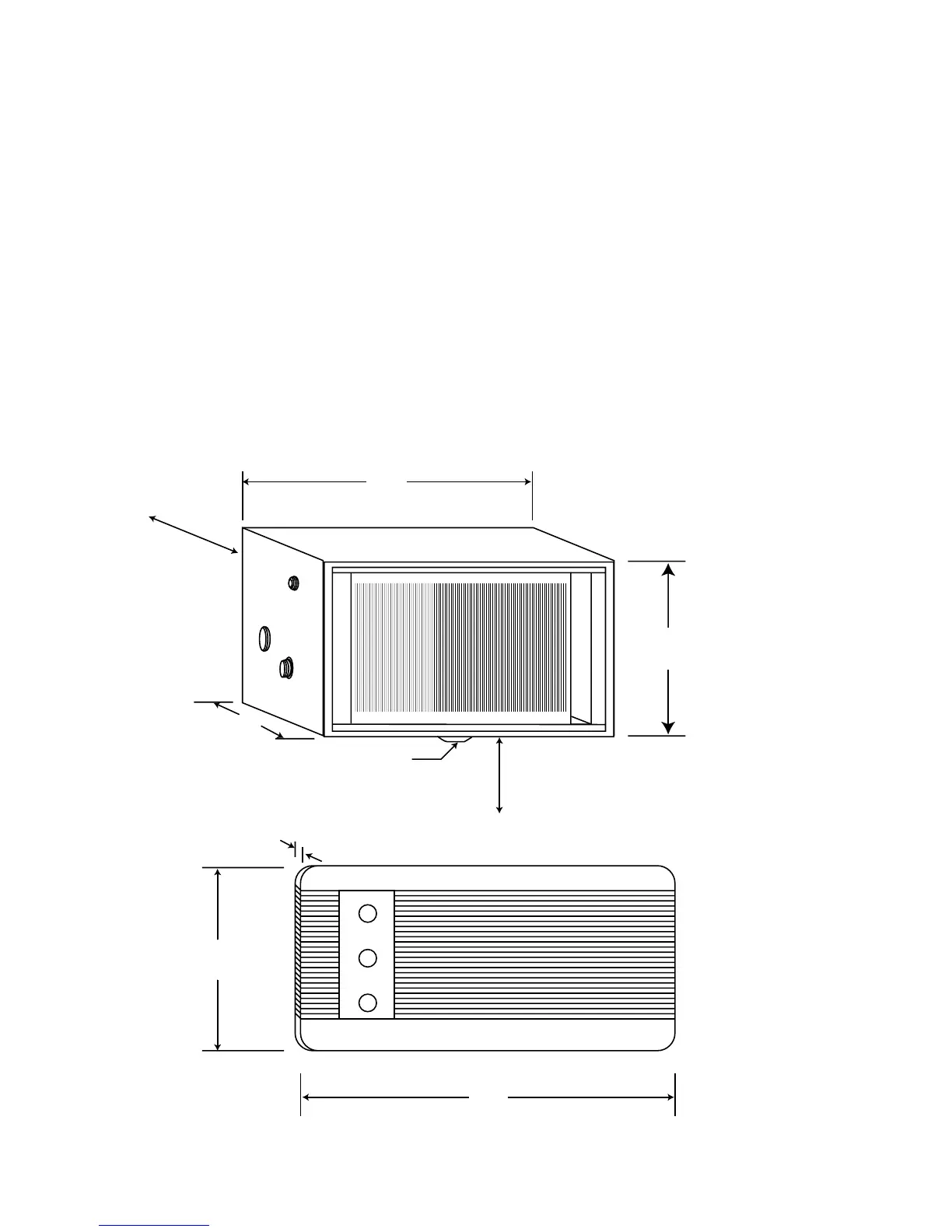

220
380
DRAIN
RECOMMEND 70 MM TO FLOOR
OF CUPBOARD FOR ADAQUATE
"FALL" OF DRAIN
215
MUST ALLOW
90 MM SPACE
FOR AIR FLOW
TO FAN
270
12
490
Figure 2
