Herrmidifier Herrtronic MD Series - Page 30

Herrtronic
®
MD Series
Installation, Operation, & Maintenance Manual
30 www.herrmidifier-hvac.com
121800-001
EST-1127
EST-1136
EST-1168
DRAIN SUB-
EST-165
EST-076
EST-1080
EST-1092
EST-1060-3
354415-001
FILL SUB-
GT-118
GT-116
GT-116
GT-153
EST-1250
354563-001
454320-001
EST-122-1

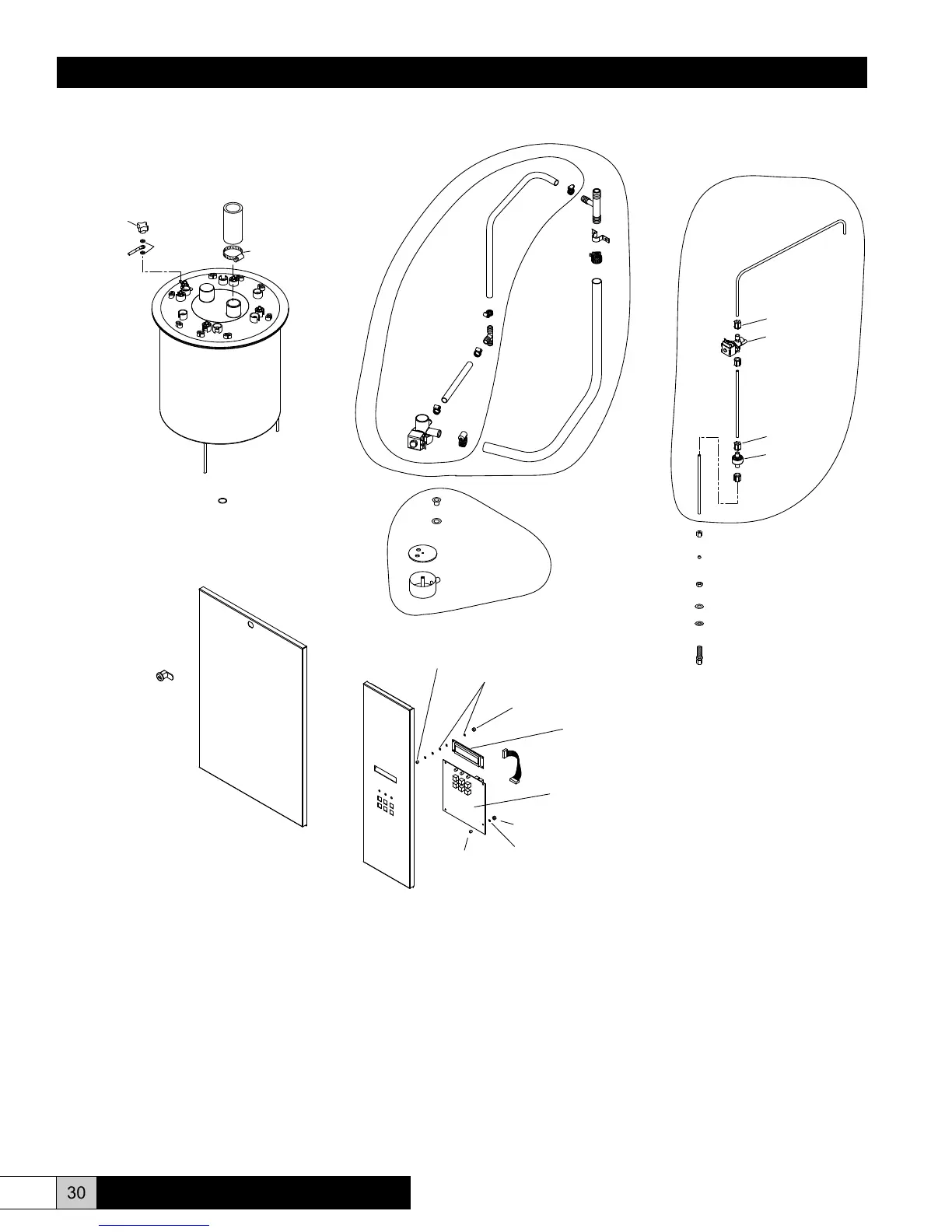

Model MDS - Parts Schematic
265171-001
EST-1225-KIT
EST-1136
121800-001
EST-1127
DRAIN KIT
ASSEMBLY
ASSEMBLY
ASSEMBLY
121078-011
121078-011
4060
FV-12 (INCLUDED w/4060)
FV-11 (INCLUDED w/4060)
PART OF 4060
354537-001
