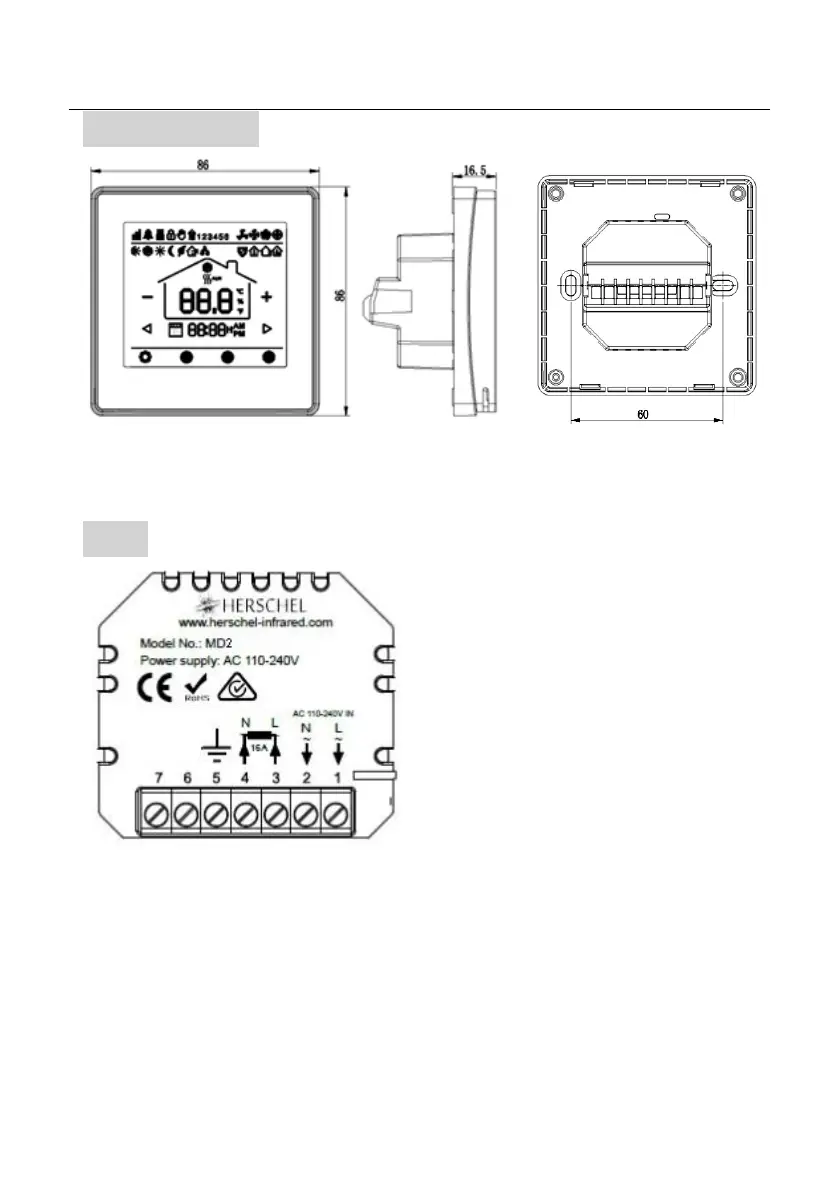

Dimensions (mm)
The MD2 is 86mm x 86mm and the front display is 16.5mm thick. A single gang pattress box 46mm deep is
required for mounting, and mounting holes are 60mm apart.
Wiring
Wiring the MD2 should be carried out by a qualified
electrician. Ensure power supply to the MD2 is turned
OFF before wiring or unwiring the MD2. Maximum
load is 16A / 3.6kw at 230v.
The MD2 can be used to control several Herschel
heaters but the maximum wattage of 3.6kw (3,680w)
must not be exceeded. Do not use for any other
non-Herschel heating devices. INDOOR USE ONLY.
Wire mains Live to terminal 1, Neutral to terminal 2 and Earth to terminal 5. Wire the load to heater: Live to
terminal 3, Neutral to terminal 4 and earth to terminal 5.
