Hertz HCP 4DK - Installation and Sizes

41
USER’S MAUAL
1: Power supply cable 2: Speakers cable
B
D
C
E
A
A B C D E
HCP 1D
215 200 190 166 50 mm
8.46 7.87 7.48 6.53 1.97 in.
HCP 1DK
315 291 190 166 50 mm
12.40 11.45 7.48 6.53 1.97 in.
HCP 2
215 200 190 166 50 mm
8.46 7.87 7.48 6.53 1.97 in.
HCP 2x
315 291 190 166 50 mm
12.40 11.45 7.48 6.53 1.97 in.
HCP 4
315 291 190 166 50 mm
12.40 11.45 7.48 6.53 1.97 in.
HCP 4D
215 200 190 166 50 mm
8.46 7.87 7.48 6.53 1.97 in.
HCP 4DK
315 291 190 166 50 mm
12.40 11.45 7.48 6.53 1.97 in.
HCP 5D
345 321 190 166 50 mm
13.58 12.64 7.48 6.53 1.97 in.

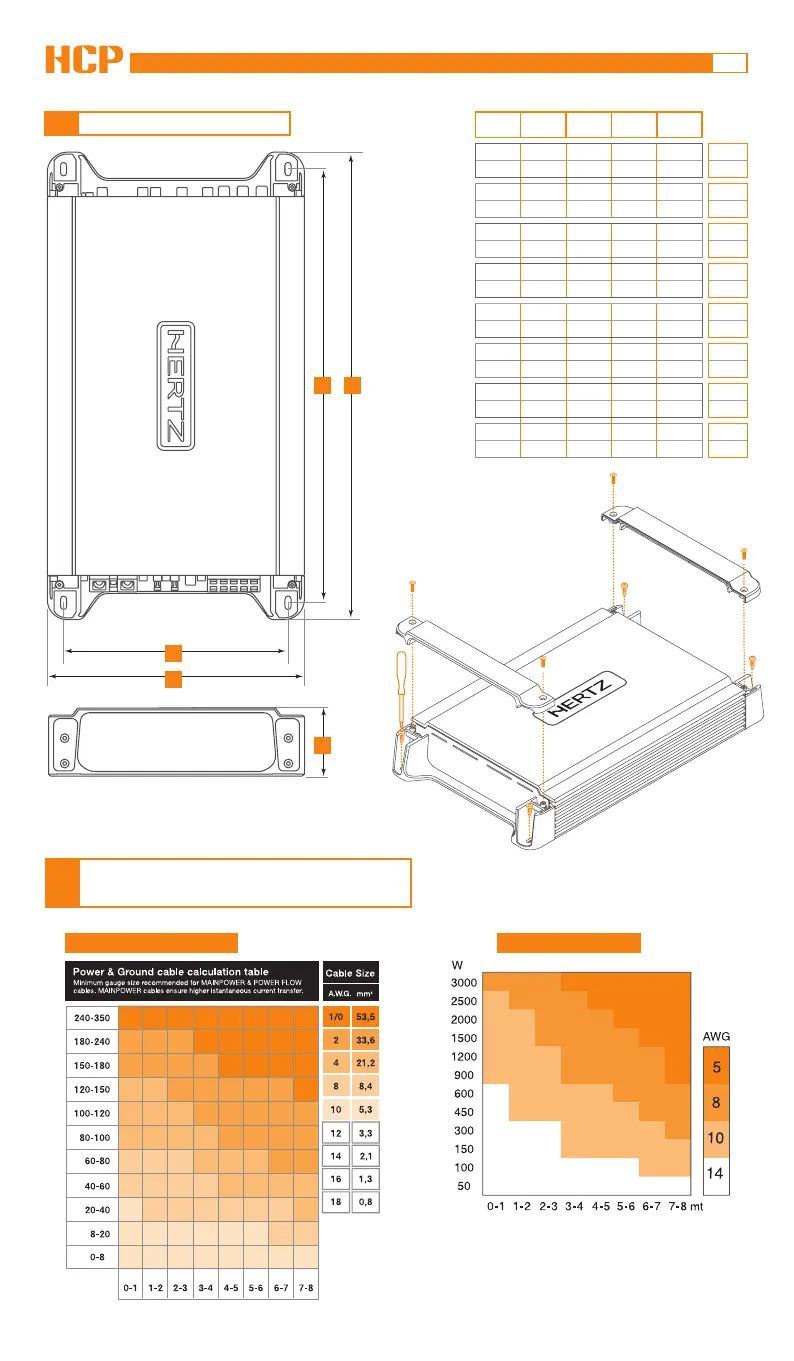

2. INSTALLATION AND SIZES
3.
CABLE SIZE CALCULATION TABLES:
1: Power supply cable / 2: Speakers cable
Connection length
Applied power
Cable diameter
*
Current Draw I (A)
Cable Length (m)
2/3
