Hertz HP 2 - Configuration Diagrams

PRE IN / SPK IN
PRE IN / SPK IN
PRE OUT
PRE IN
FRONT
FRONT
SUB
FRONT
SUB
PRE / SPK
A IN (front)
PRE / SPK
B IN (rear)

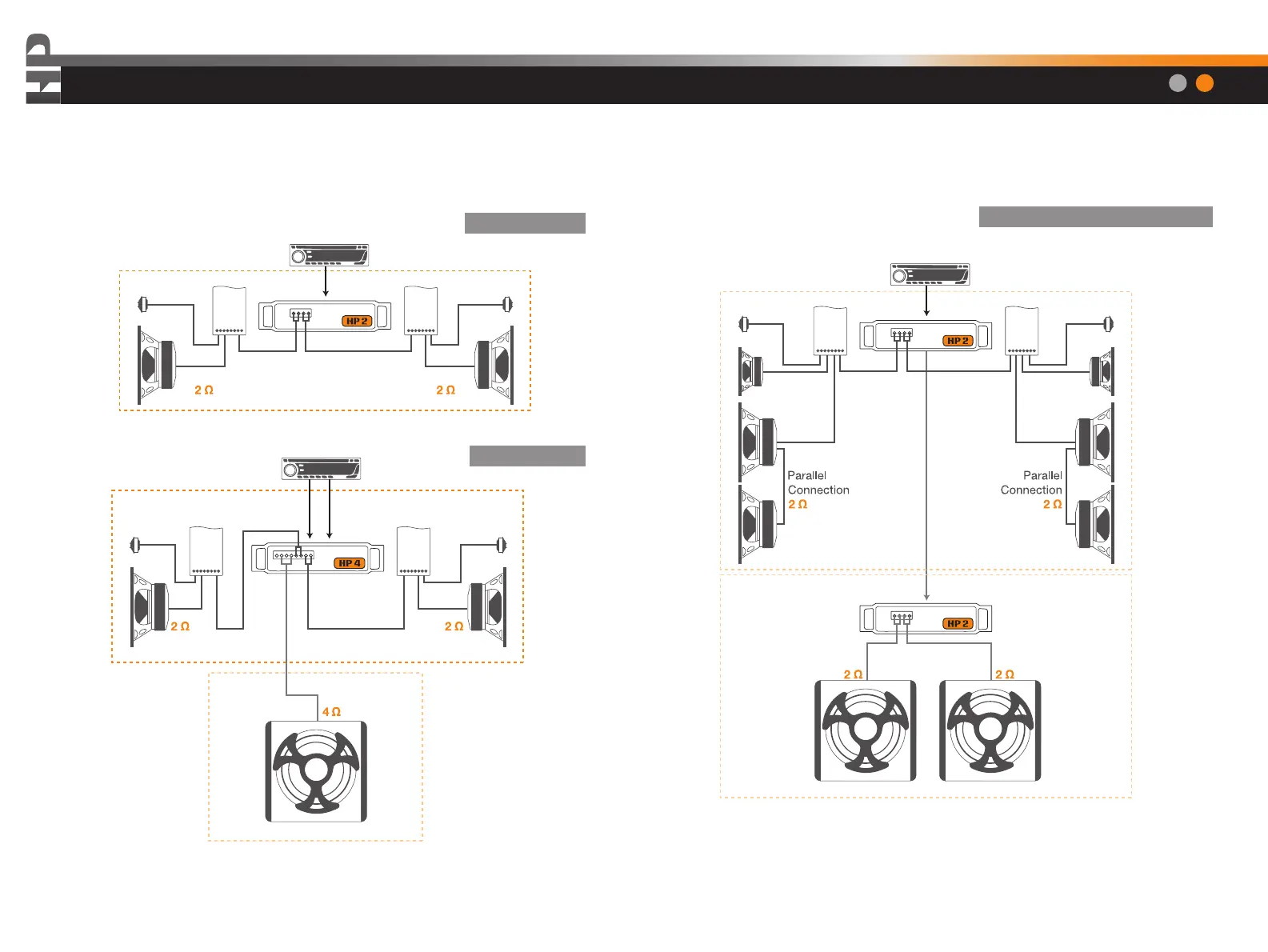

Configuration diagrams
HP 2: 2 way Stereo
HP 4: Front + Sub
HP 2 + HP 2: 3 way double woofer + Sub
The schemes report the minimum impedance stood by the amplifier in the configuration shown The schemes report the minimum impedance stood by the amplifier in the configuration shown
