Hertz SPL Show - Page 11

User’s Manual
46
DC REM
OFFON
AUTO TURN ON
by SPEAKER DC
INPUT LEVEL
HI LEVEL
input with
USS
PRE INPUT
LEVEL
HI [USS] LO
INPUT SEL
Stereo input
on IN L - IN R
Mono Input
on IN L
MONO LL+R
LP FILTER
Hz
50 250
LO-PASS @ 24 dB/Oct.
AMP OUT
Hz
FILTER OFF
500
AMP OUT
LP FILTER
OFF ON
LP FILTER
OFF ON
GAIN (CH3-CH4)
6 V
22 V
(Max)
LO
HI
0,6 V
2,2 V
(Min)
PHASE
SUBSONIC
Hz
25 Hz @ 24 dB/Oct.
25 500
SUBSONIC
OFF ON
BOOST - 50 Hz
+ 8
0 Hz 50
dB
0°
180°
t
0
POWER ON
Green LED
CHECK
*
Red LED

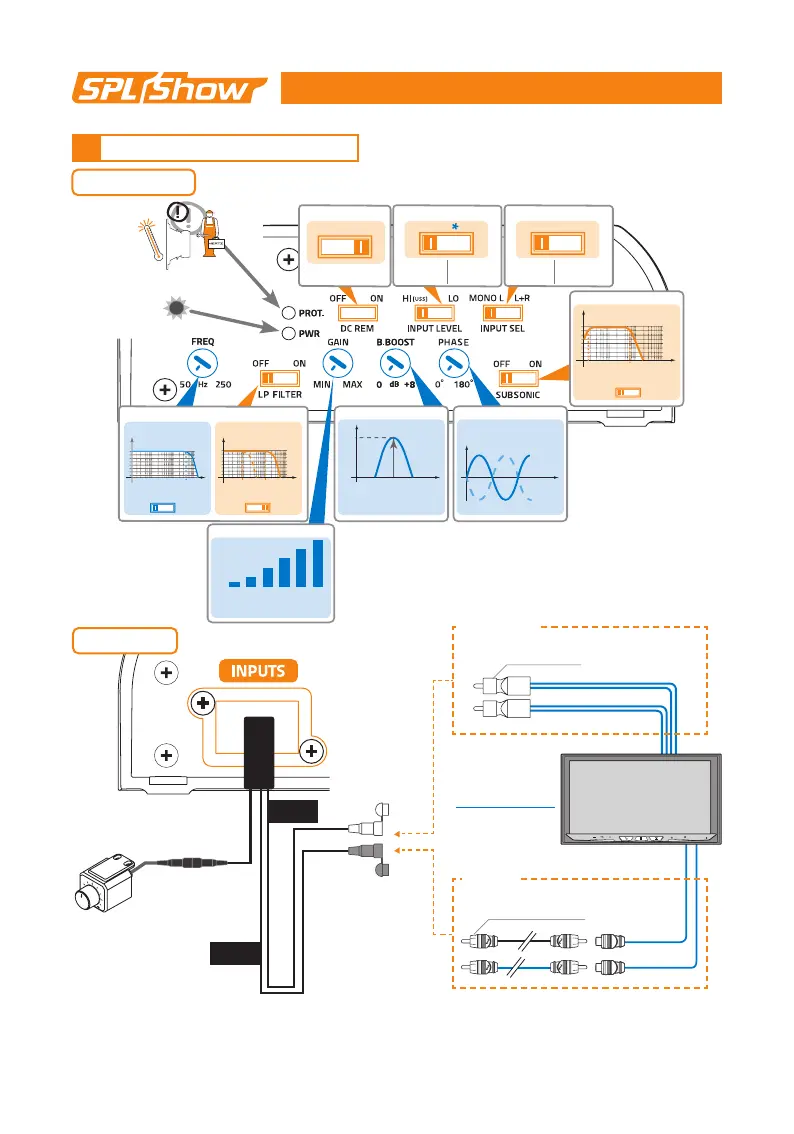

CONTROLS SIDE
CABLES SIDE
SP 1.900
*
Select “HI [USS]” if you
connect speaker output
signals. Select “LO” if you
connect pre-out signals.
*USS: Universal Speaker
Simulater
use RCA adapter
Provided
use RCA cable adapter
Not provided
IN L
IN R
L
R
REAR
WHITE
RED
-
-
+
+
IN R
IN L
LO
PRE OUTS
HI [USS]
SPEAKER OUT
REMOTE
HRC BM
Optional
REMOTE
VOLUME
CONTROL
or
L
R
6
PRE IN / SPEAKER IN / DC REM
