Hertz SPL Show - Input;Output Connections

User’s Manual
44
OUT +
OUT +
OUT -
OUT -
OUT +
OUT +
OUT -
OUT -
*

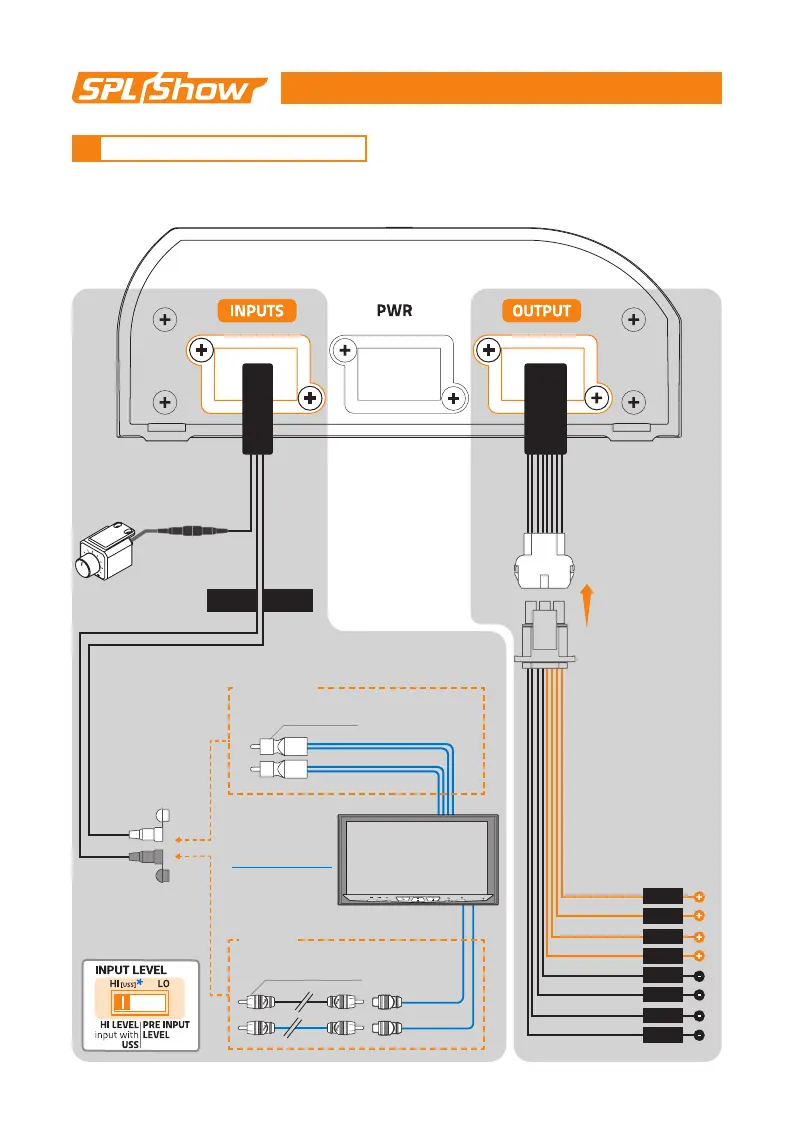

Select “HI [USS]” if you
connect speaker output
signals. Select “LO” if you
connect pre-out signals.
*USS: Universal Speaker
Simulater
use RCA adapter
Provided
use RCA cable adapter
Not provided
IN L
IN R
White
White
White
White
White/Black
White/Black
White/Black
White/Black
L
R
REAR
WHITE
RED
-
-
+
+
IN R
IN L
LO
PRE OUTS
HI [USS]
SPEAKER OUT
REMOTE
HRC BM
Optional
REMOTE
VOLUME
CONTROL
or
*
L
R
SP 1.900
5
INPUT / OUTPUT CONNECTIONS
