User’s Manual
43
FUSE
GND
12 V
BATTERY
GND
4

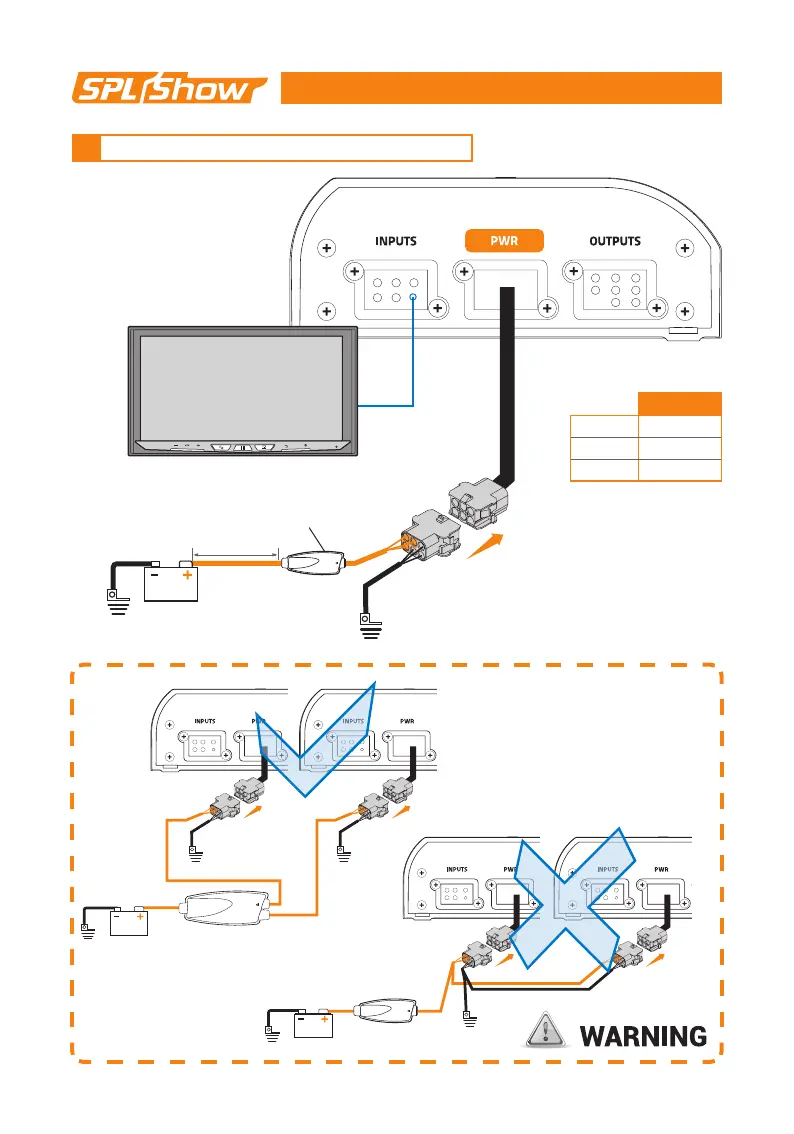

POWER SUPPLY and REMOTE IN CONNECTION
12 V
BATTERY
GND
GND
FUSE
MAX 20 cm / 7.9 in.
APPLY A FUSE CLOSE
TO BATTERY POSITIVE
POLE TO PROTECT
BATTERY CABLE
REM IN
SOURCE
AMP 1 AMP 2
2x FUSE
GNDGND
12 V
BATTERY
GND
AMP 1 AMP 2
MULTIPLE POWER
SUPPLY CONNECTION
FUSE
SP 1.900 60 A
SP 4.500 30 A
SP 4.900 60 A
